Gauge Root Valve – Male x Female – Lagging Extension – 1/4” NPT – 6000 PSI – ASME B16.34 / ISO 9001 / PED / ATEX

Gauge Root Valve

Also known as:

Gauge Isolation Valve

Gauge Root Valve – Male x Female – Lagging Extension – 1/4” NPT – 6000 PSI – ASME B16.34 / ISO 9001 / PED / ATEX

Gauge Root Valve

Also known as:

Gauge Isolation Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

The Gauge Root Valve Male x Female with Lagging Extension allows safe isolation of pressure gauges in insulated or hard-to-reach areas.

Executive Summary

The Gauge Root Valve Male x Female with Lagging Extension in 1/4” NPT is designed to isolate pressure gauges in systems with insulation or hard-to-reach areas. It provides reliable shutoff with a metal-to-metal seal, handles pressures up to 6000 PSI, and ensures leak-free performance. The lagging extension allows the valve to be operated without disturbing insulation, making it ideal for oil and gas applications where gauge protection and safe maintenance are critical.

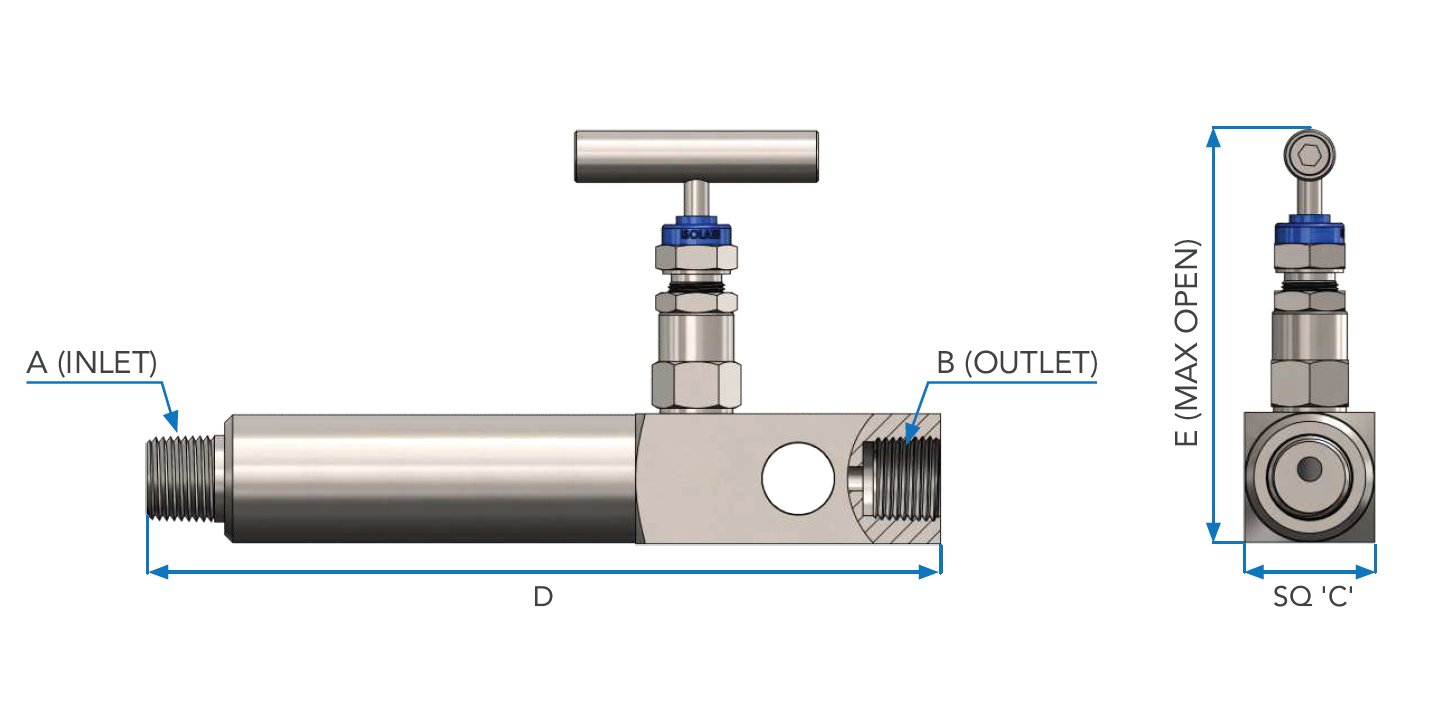

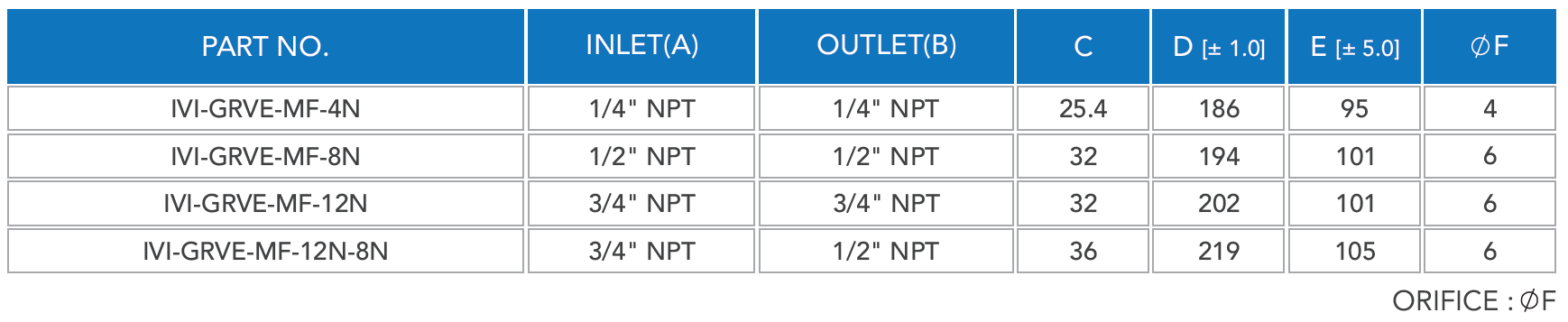

Technical Specifications

Inlet 1/4” NPT
Outlet 1/4” NPT
Width 25.4
Length 85
Height 95
Bolt Hole Spacing 4

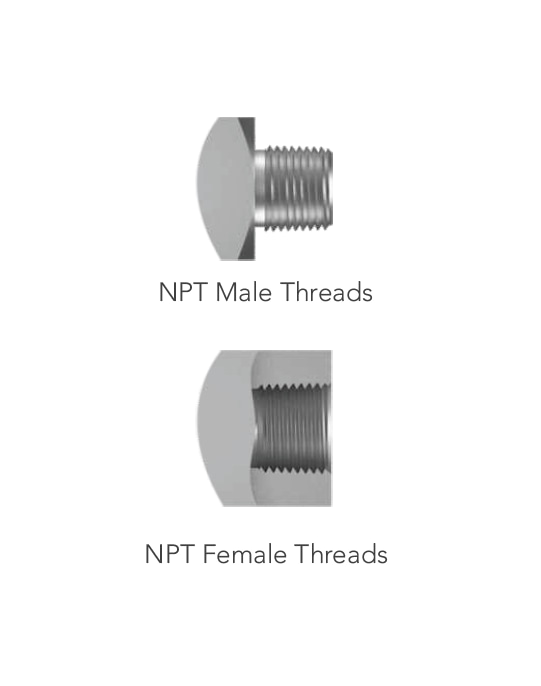

Connection Type Male x Female
Standard Working Pressure 6000 PSI
Maximum Working Pressure Up to 10000 PSI on request
Temperature Rating -50°C to 230°C (500°C with graphite)

Features and Benefits

  • Removable T-handle for low torque operation.
  • Lagging extension allows operation without removing insulation.
  • Leak-free performance under high pressure and temperature.
  • Long-lasting durability and corrosion resistance.
  • Protects the system from contamination and wear.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

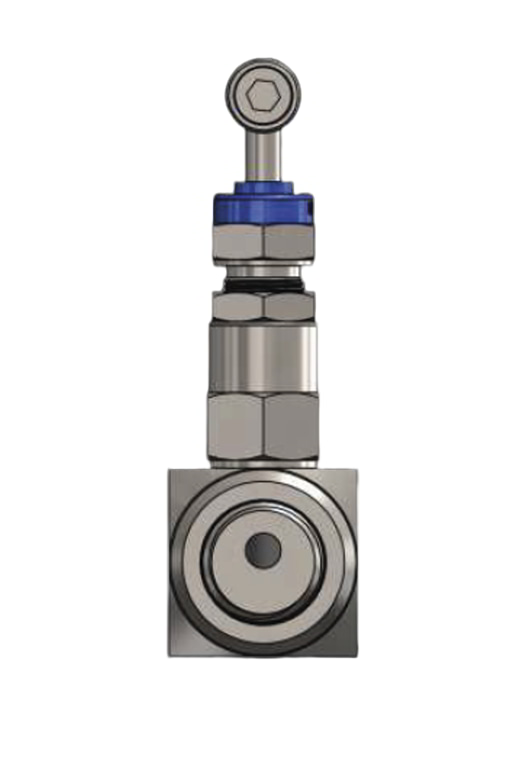

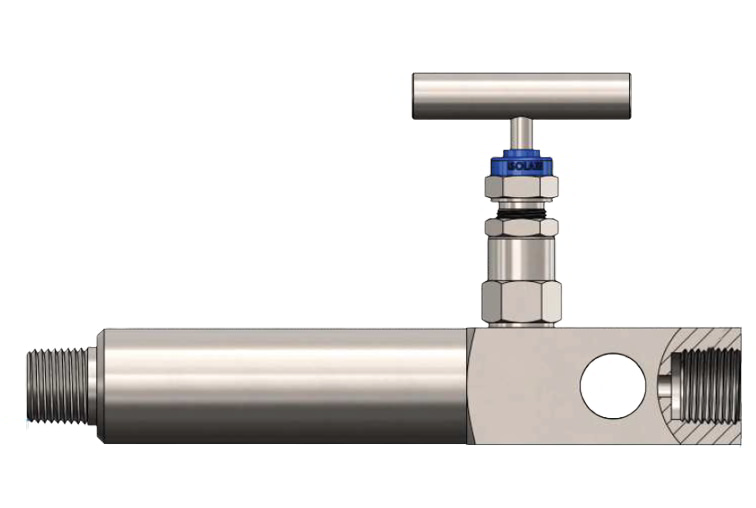

The Gauge Root Valve Male x Female with Lagging Extension in 1/4” NPT is a small but robust valve used to safely isolate pressure gauges in pressurized systems. It is designed to handle pressures up to 6000 PSI and temperatures from -50°C to 230°C, providing a reliable seal and leak-free operation. The lagging extension lets the valve be operated without removing insulation, protecting both the system and the operator.

The valve includes features to make it safe and easy to use: a back seat on the stem for extra security, a self-centering non-rotating tip for consistent shutoff, and an adjustable gland retainer to keep the packing tight. The removable T-handle allows smooth operation with minimal effort, while the dust cap prevents dirt or debris from entering the valve. All valves are factory tested for performance, include heat code traceability, and can be made from materials compliant with NACE MR 01-75 for corrosion resistance.

This valve is ideal for oil and gas systems where isolating gauges safely, maintaining insulation, and ensuring reliable operation are essential.

Engineering Data
