5 Valve Manifold T Type – Pipe to Flange connects impulse lines and differential pressure transmitters, offering block, equalize, and bleed functions at 6000 PSI.

Executive Summary

The 5 Valve Manifold T Type – Pipe to Flange is designed for connecting impulse lines to differential pressure transmitters in oil and gas applications. Its configuration with two block valves, two equalizer valves, and one bleed valve allows precise isolation, calibration, and maintenance while ensuring safe, leak-free operation under pressures up to 6000 PSI.

This type is chosen for reliable measurement, compact design, and ease of operation in critical process monitoring.

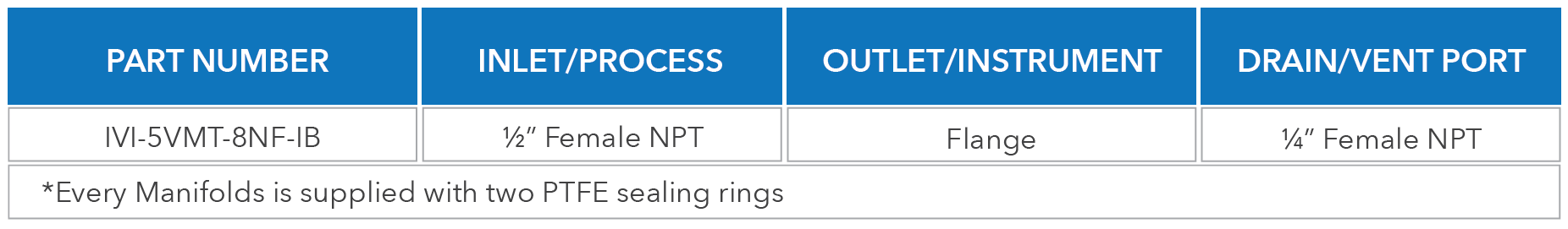

Technical Specifications

Inlet/Process 1/2” Female NPT
Outlet/Instrument Flange
Drain/Vent Port 1/4” Female NPT
Type T type 5 valve manifold
Standard Working Pressure 6000 PSI
Pressure-Temperature Ratings ASME B16.34
Process Piping Code ASME B31.3
Temperature Rating -50°C to 230°C
Body-Bonnet Seal Metal-to-metal
Type Tested MSS-SP-99

Features and Benefits

  • Gland retainer ensures packing stability.
  • High pressure and temperature capability.
  • Durable construction and metal-to-metal sealing extend service life.
  • Easy maintenance and operation.
  • Factory tested for seat and packing leakage with heat code traceability.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

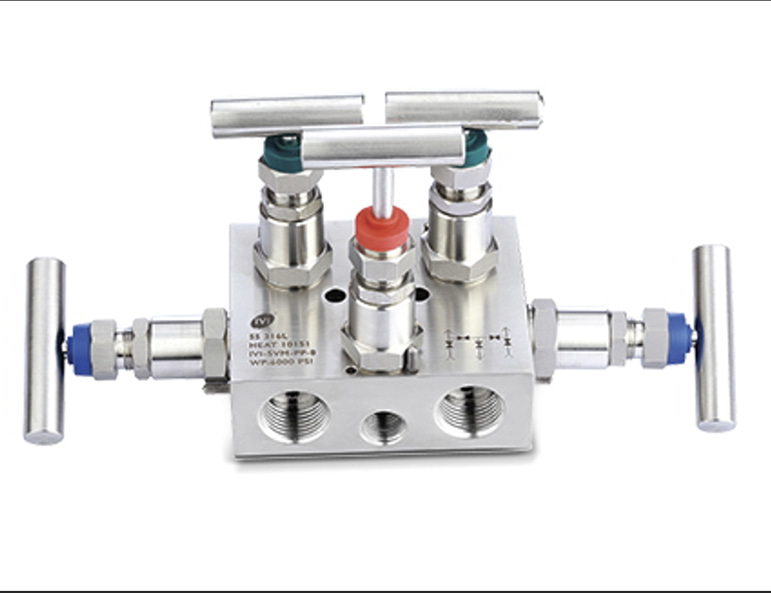

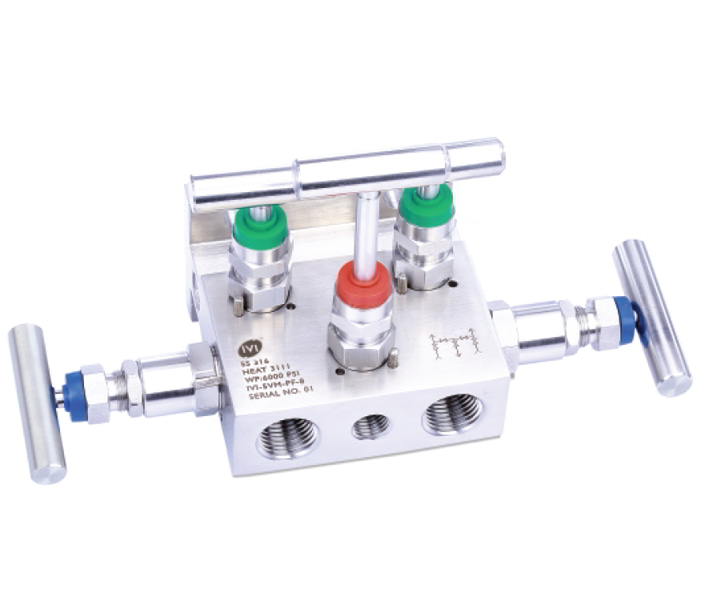

The 5 Valve Manifold T Type, Pipe to Flange is engineered to connect impulse lines to differential pressure transmitters in industrial and oil and gas applications. It features 1/2” Female NPT Pipe to Flange connections set at 54mm (2-1/8”) centers, with a configuration consisting of two block valves, two equalizer valves, and one bleed valve. This design allows for efficient isolation, calibration, and maintenance of transmitters while maintaining process integrity.

The T Type configuration is especially useful because it provides a compact and organized valve layout that simplifies operations like bleeding and equalizing, reducing the risk of leaks and measurement errors. Using a 5 valve manifold ensures maximum operational flexibility, allowing operators to isolate the instrument, balance pressure, and vent safely without interrupting the main process.

Pipe to Flange connections are chosen when connecting transmitters or instruments to existing flanged piping systems, offering strong mechanical support and compatibility with industry-standard flanges. This combination of T Type, 5 valves, and pipe-to-flange connections ensures accurate, reliable, and safe pressure measurement and calibration in critical oil and gas operations.

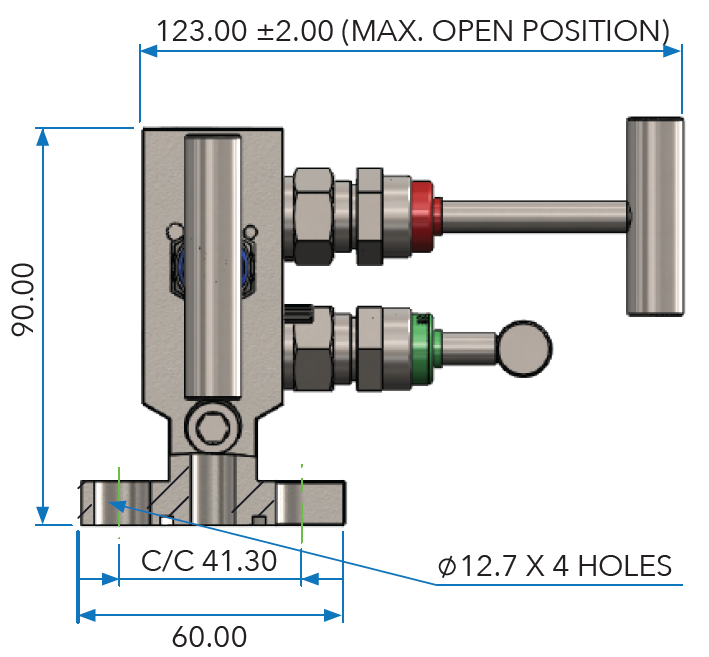

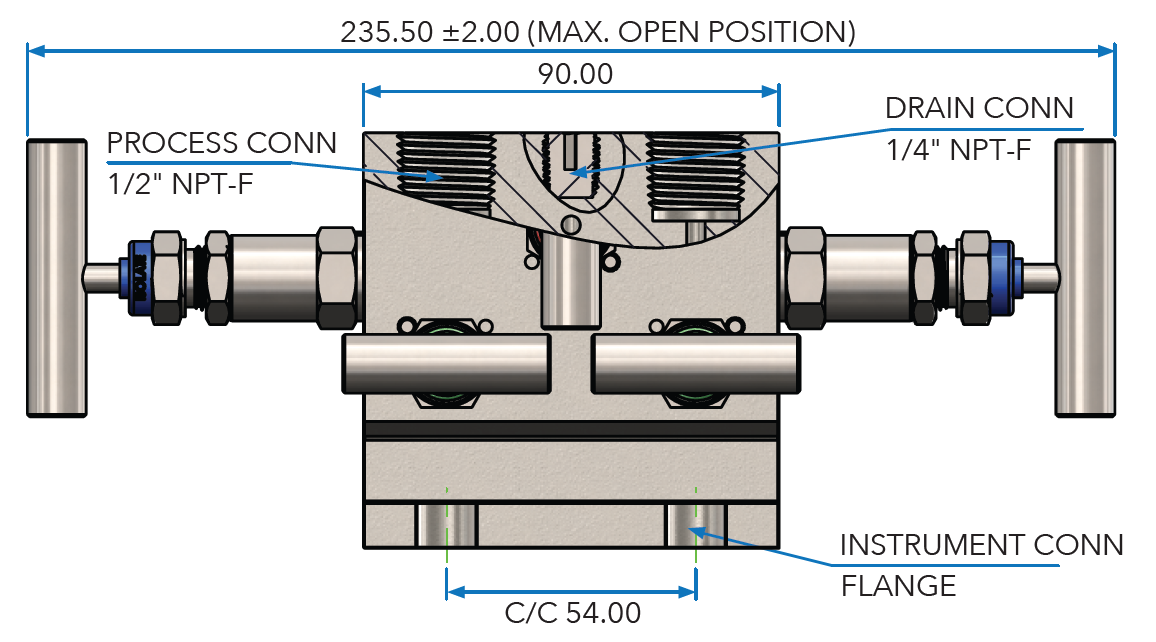

Engineering Data
