Needle Valves Mini Needle Valve Series – Male x Female – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Needle Valve

Also known as:

Plunger Valve

Needle Valves Mini Needle Valve Series – Male x Female – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Needle Valve

Also known as:

Plunger Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

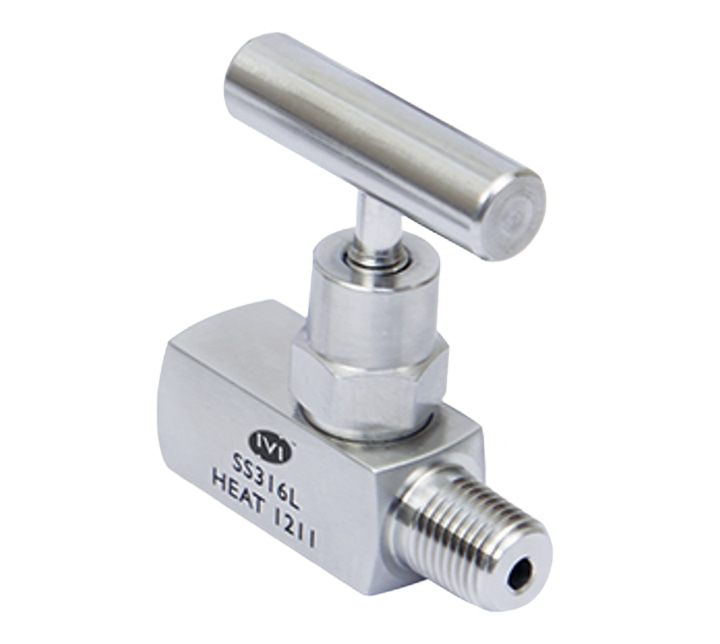

Compact Mini Needle Valve with Male x Female connections for precise flow control in tight spaces.

Executive Summary

The Mini Needle Valve Series – Male x Female is a compact valve designed for precise flow control in instrumentation and process systems. It provides bubble-tight shut-off, smooth operation, and long-lasting performance. Ideal for applications where space is limited, it is used to control or isolate flow in oil and gas systems.

Technical Specifications

Body Style Mini Needle Valve Series
Connections Male x Female NPT
Body Bonnet Seal Metal to Metal
Standard ASME B16.34
Valve Ratings ASME B31.3 Process Piping Code
Type Tested MSS-SP-99
Standard Working Pressure 6000 PSI
Dust Protection Dust cap on stem
Handle Removable T-handle for low torque operation
Temperature Rating -50°C to 230°C

Features and Benefits

  • Bubble tight Shut-off.
  • Rolled Stem threads for smooth acting, strength and long life.
  • Mirror finished stem enables smooth stem operation and extended packing life.
  • Low operating torque.
  • Packing below stem threads.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Mini Needle Valve Series – Male x Female is designed for accurate and reliable flow control in small or compact piping systems. Its male-to-female connections allow easy integration into existing instrumentation or process lines. The valve ensures bubble-tight shut-off, preventing leaks in sensitive applications.

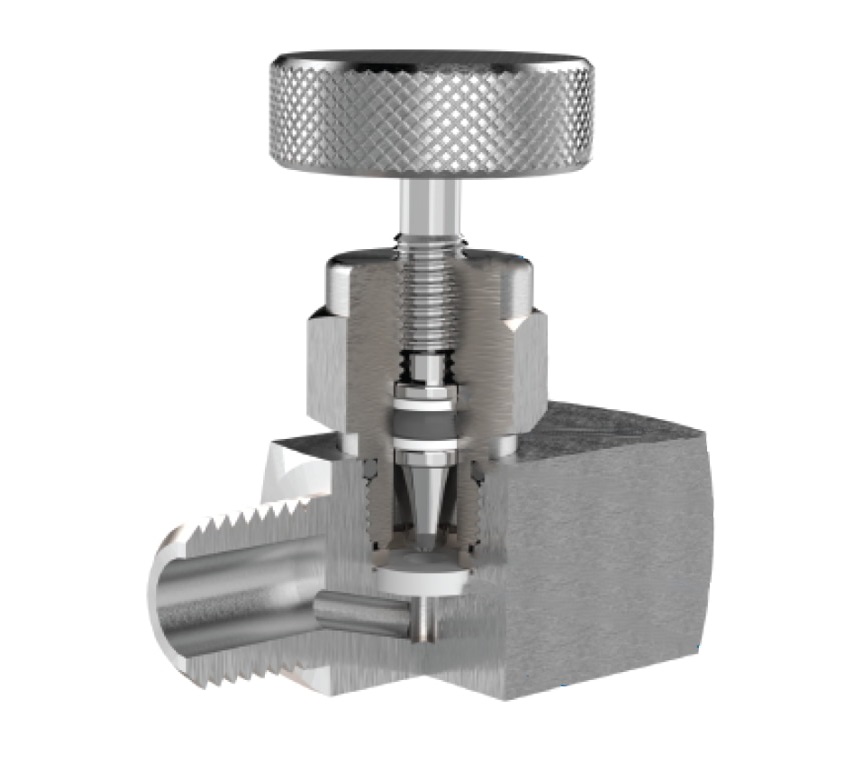

The rolled stem threads provide smooth operation, strength, and long service life, while the mirror-finished stem reduces friction, extends packing life, and ensures consistent performance. Packing located below the stem threads prevents lubricant washout, protects against corrosion, and keeps solids from entering the thread area, which could cause damage.

With low operating torque, these valves are easy to operate even in tight spaces. Optional panel-mount versions allow installation in control panels or instrument assemblies, making them ideal for oil and gas, chemical, and other industrial applications where precise flow control is essential.

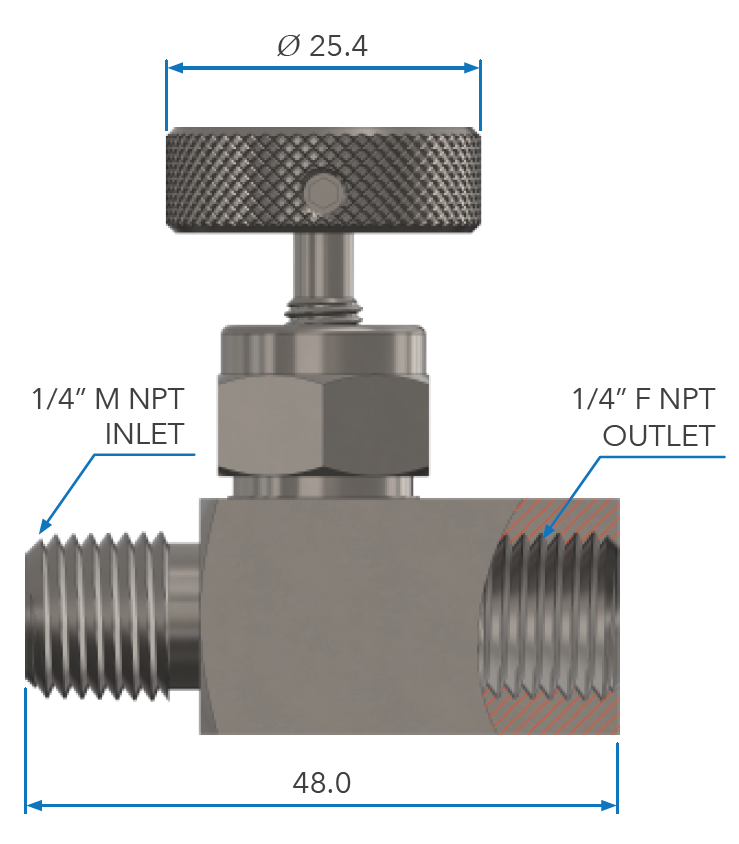

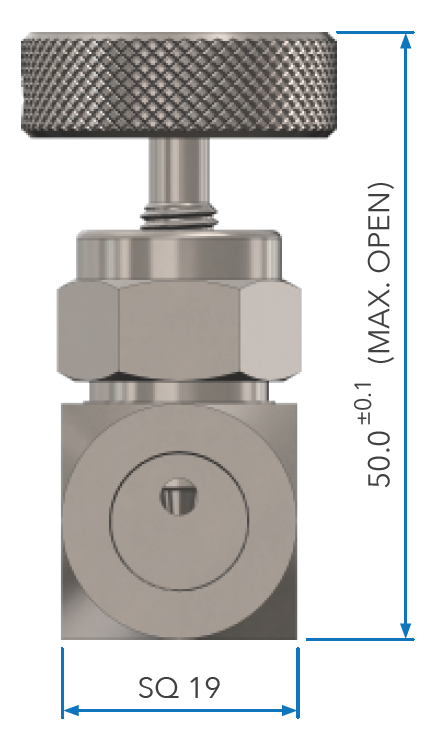

Engineering Data
