Executive Summary
The H Type 3 Valve Manifold with Flange to Flange connections is designed for connecting impulse lines to differential pressure transmitters in oil and gas and process industries. It allows precise measurement by providing two block valves, an equalizer, and vent/test ports for safe calibration, isolation, and system maintenance. This type is chosen for its robust flange connections, high pressure rating, and reliable leak-free performance in demanding industrial applications.

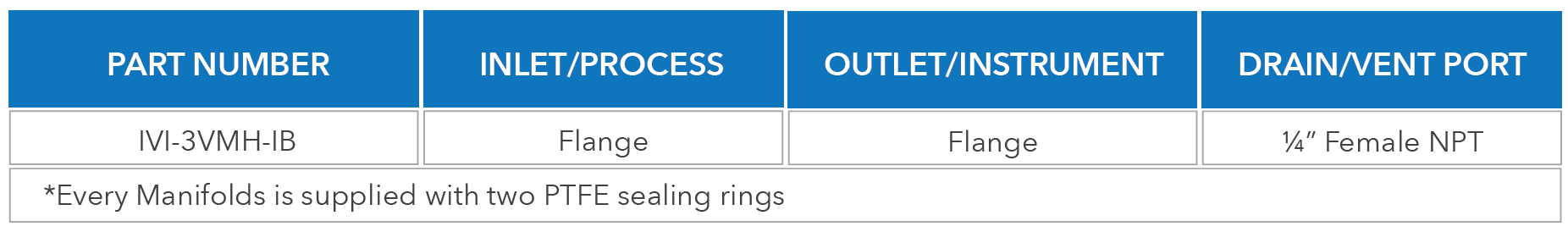

Technical Specifications
| Inlet/Process | Flange |
| Outlet/Instrument | Flange |
| Drain/Vent Port | 1/4” Female NPT |
| Type | H type 3 valve manifold |
| Standard Working Pressure | 6000 PSI |
| Pressure-Temperature Ratings | ASME B16.34 |
| Process Piping Code | ASME B31.3 |
| Temperature Rating | -50°C to 230°C |
| Body-Bonnet Seal | Metal-to-metal |
| Type Tested | MSS-SP-99 |
Features and Benefits
- Easy and reliable operation even in harsh environments.
- Durable design reduces wear and extends service life.
- Simplifies installation and reduces potential leak paths.
- Removable T-handle for low torque operation.
- Metal-to-metal body bonnet seal, no O-ring required.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description

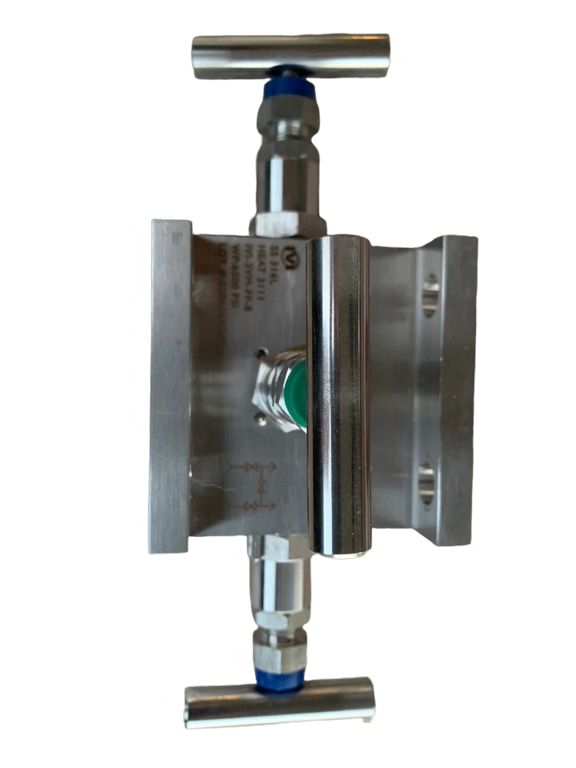

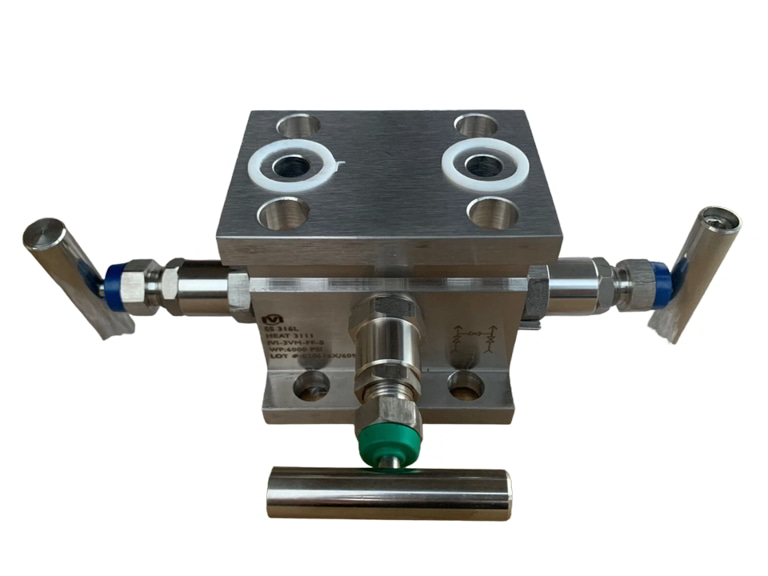

The H Type 3 Valve Manifold – Flange to Flange is designed for connecting impulse lines and differential pressure transmitters in oil and gas and industrial process applications. It consists of two block valves, one equalizer valve, and two ¼” Female NPT vent/test connections, providing accurate isolation, calibration, and maintenance of instrumentation.
The manifold is rated for a standard working pressure of 6000 PSI, with maximum ratings up to 10000 PSI available on request. Temperature ratings range from -50°C to 230°C, with 500°C possible using graphite seals. The body features a metal-to-metal seal for high pressure and temperature applications, eliminating the need for O-ring seals, and materials can be supplied according to NACE MR 01 75 standards.
Each valve is 100% factory tested per international pressure standards, including pneumatic testing with nitrogen at 1000 PSI for seat and packing leakage, with a maximum allowable leak rate of 0.1 sec/min. Stems have back seats, rolled threads, and self-centering non-rotating tips for consistent, leak-free operation. The H Type design allows reliable, safe, and precise operation in high-pressure, high-temperature process environments.

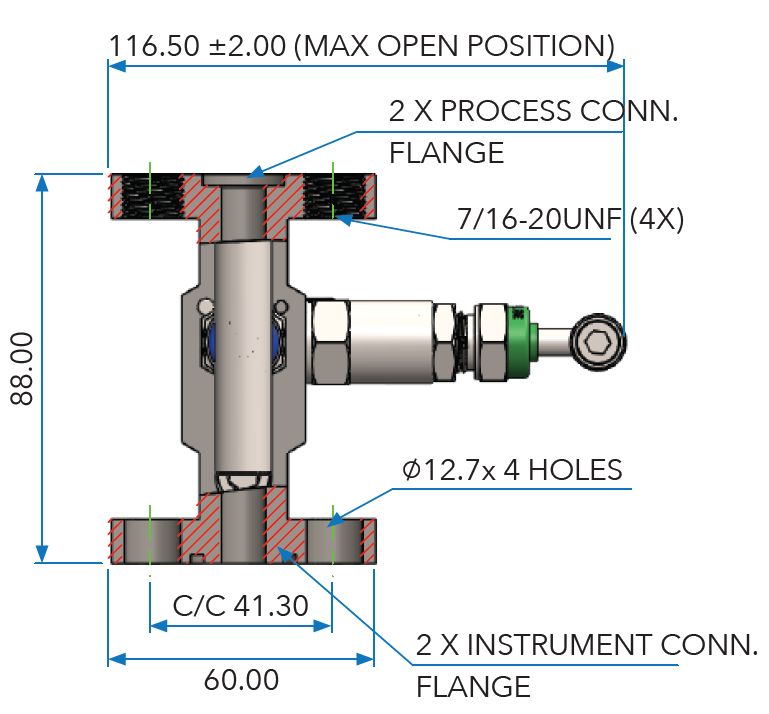

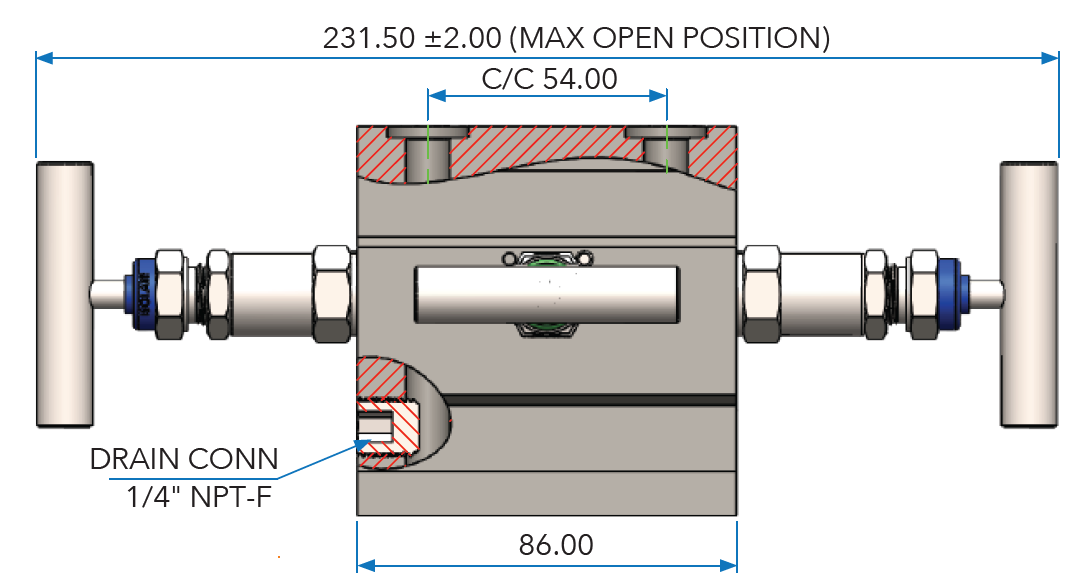

Engineering Data
