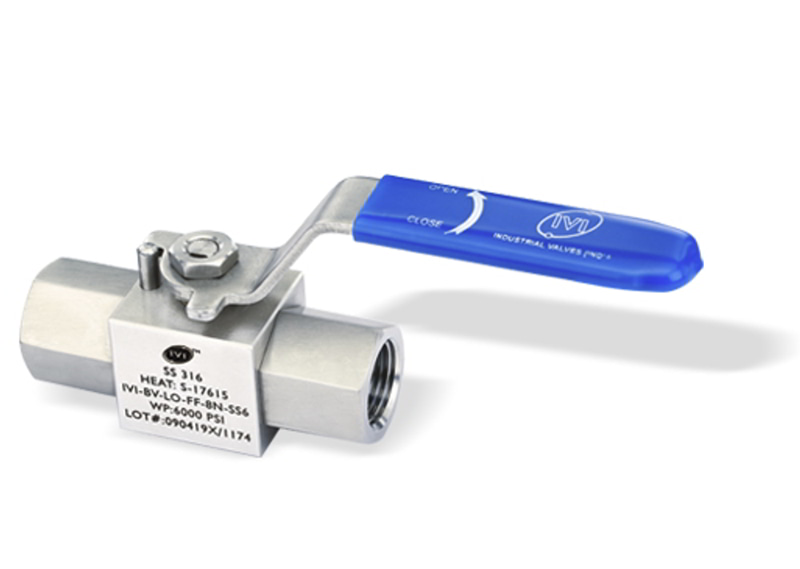

Ball Valve Lever Operated – 2-Way Female x Female End Connection – 1/4”, 3/8”, 1/2”, 3/4”, 1” – 6000 psi – ASME B16.34 / ISO 9001

Ball Valve

Also known as:

Shut-off Valve, Quarter-turn Valve

Ball Valve Lever Operated – 2-Way Female x Female End Connection – 1/4”, 3/8”, 1/2”, 3/4”, 1” – 6000 psi – ASME B16.34 / ISO 9001

Ball Valve

Also known as:

Shut-off Valve, Quarter-turn Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

The Ball Valve, Lever Operated 2-Way Female × Female, is an isolation valve used to control or shut off fluid flow in oil and gas piping systems, offering secure inline connections without requiring male fittings.

Executive Summary

The Ball Valve Lever Operated – 2-Way Female × Female is a high-performance isolation valve designed for oil and gas piping systems. Its female × female connections allow secure inline installation without male fittings, simplifying assembly and reducing potential leak points.

The valve features a floating ball design, ensuring reliable, leak-proof shut-off under high-pressure conditions. Operation is simple and efficient with a quarter-turn lever, providing fast control when needed. Built for demanding industrial environments, it delivers dependable performance and durability, making it suitable for a wide range of oil and gas applications.

Technical Specifications

Connection Female × Female
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Design Standard ASME B16.34
Pressure-Temperature Rating ASME B16.34
Piping Code ASME B31.3
Type Test MSS-SP-99
Flow Bi-Directional
Configuration 2-Way straight

Features and Benefits

  • Easy and quick operation with low torque.
  • Can operate in extreme temperature conditions.
  • Can control flow in either direction.
  • Robust body construction.
  • Heat code traceability.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Ball Valve Lever Operated – 2-Way Female × Female is a high-performance isolation valve designed for oil and gas piping systems where reliable flow control is essential.


Its female × female connections allow for secure inline installation directly onto male-threaded pipes or fittings, simplifying assembly, reducing the need for additional adapters, and minimizing potential leak points. This configuration is particularly useful in production lines, injection lines, sampling lines, and other pipelines with male-threaded ends.

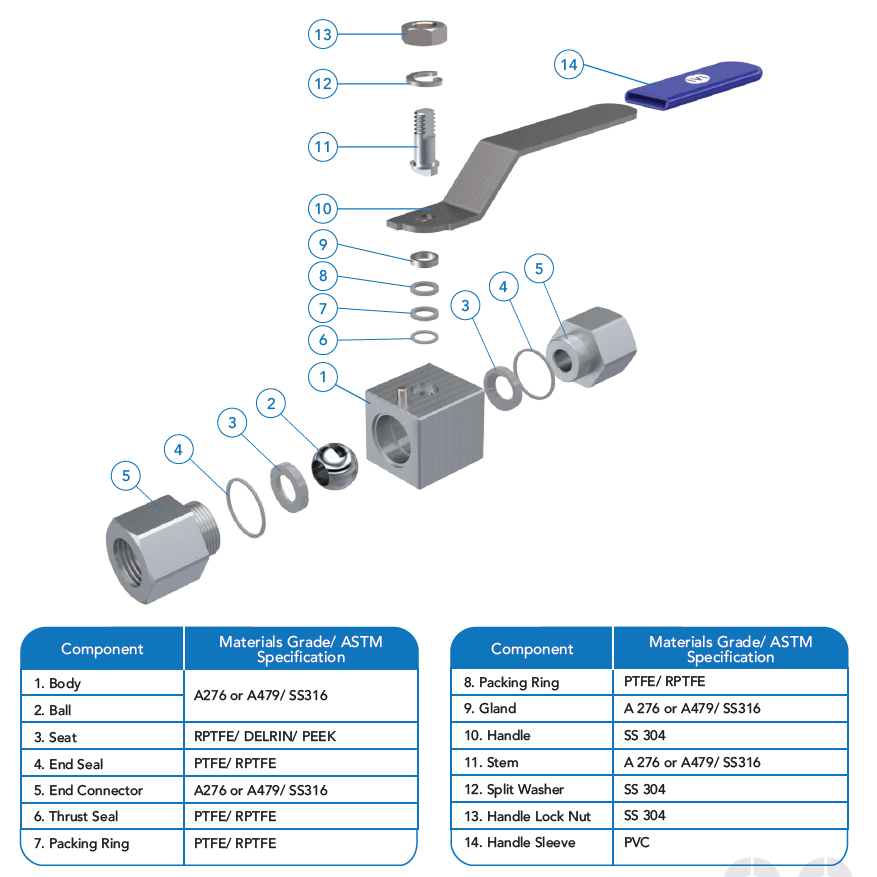

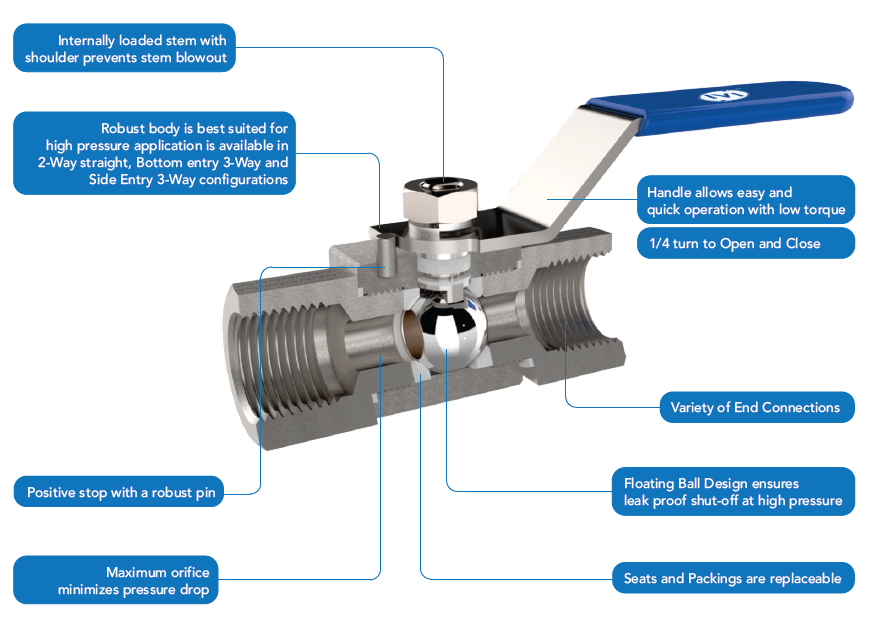

The valve features a floating ball design that provides seat wear compensation, ensuring consistent, leak-proof shut-off under high-pressure conditions. Operation is simple and efficient with a quarter-turn lever, allowing fast opening and closing with low torque. The internally loaded stem with shoulder prevents blowout, enhancing operational safety, while replaceable seats and packings extend service life. The maximum orifice design also minimizes pressure drop across the valve.


This valve is suitable for a wide range of oil and gas applications, including upstream, midstream, and downstream pipelines. It is factory tested to ensure leak-proof performance and can be supplied to meet NACE MR0175 standards and fire-safe requirements. Heat code traceability ensures quality and material verification for all components, making this valve a dependable and durable solution for industrial environments.

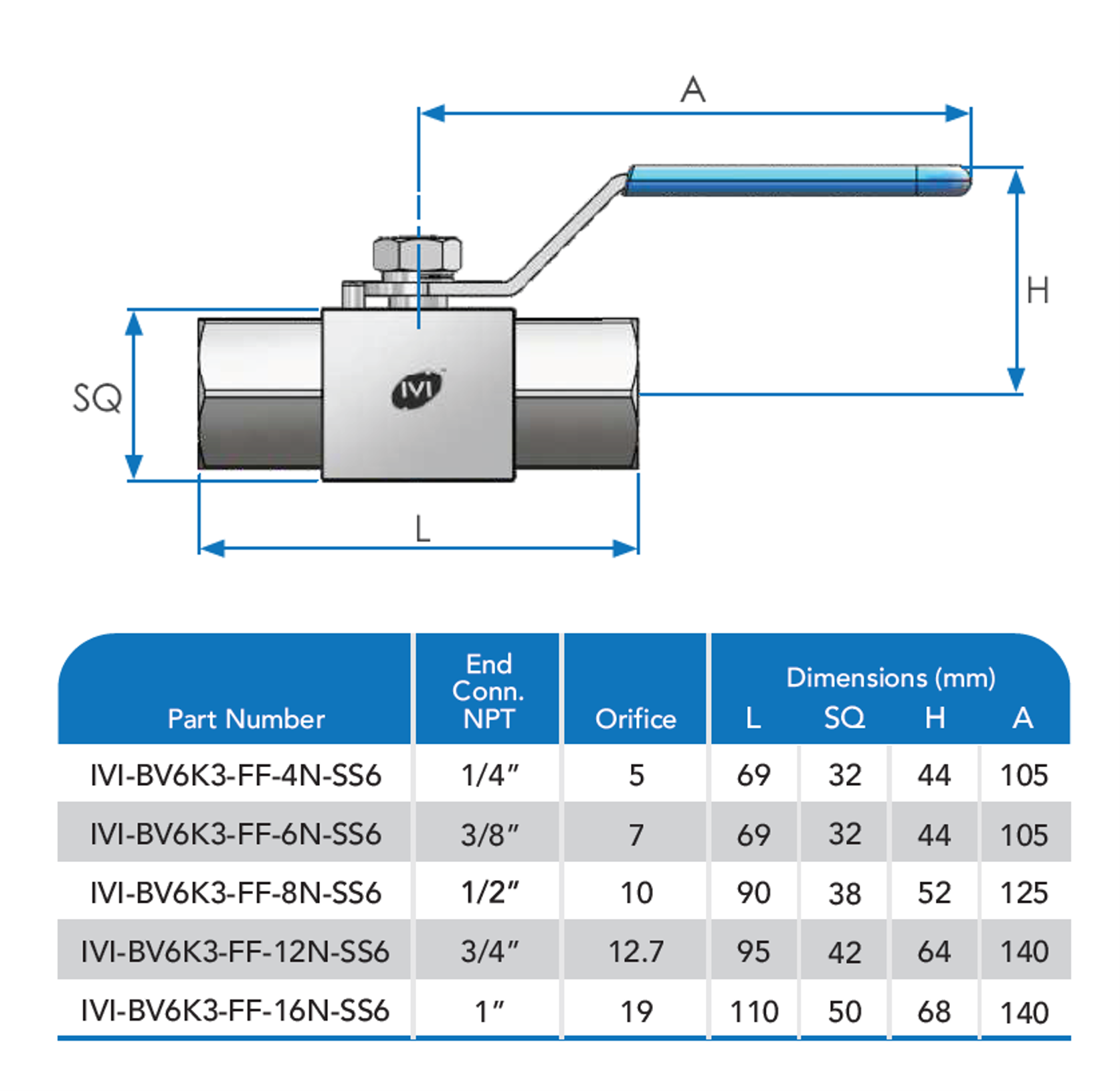

Engineering Data
