Reducing adapters Female to Male NPT connect pipes or instrumentation lines of different sizes while ensuring a secure, leak-tight seal. They are used in oil and gas applications where a pipe size change is needed.

Executive Summary

Reducing adapters Female to Male NPT are used in oil and gas applications to connect pipes or instrumentation lines of different sizes while ensuring a secure and leak-tight connection. They allow reliable adaptation between line sizes in high-pressure systems and are compatible with standard NPT threads for straightforward installation and operation.

Technical Specifications

Size Range 1/8” to 1”
Material SS 316, Brass, Carbon Steel
Temperature Range for Ratings -28 to 37°C (-20 to 100°F)
Pressure Ratings Based on ASME B31.3 at ambient temperature
Thread Engagement Standard ASME B1.20.1 for NPT threads
Internal Surface Burr-free
Cleaning Free from machine oils, loose particles, grease
Type Instrumentation and Process Control
Thread Protection Capped and properly packed
Recommended Seal PTFE tape for male tapered threads

Features and Benefits

  • Handles pressures up to 10,000 PSI.
  • Suitable for high temperature and vibration conditions.
  • Provides secure, leak-resistant connections.
  • Adapts existing piping to new equipment without replacement.
  • Easy and quick to install.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

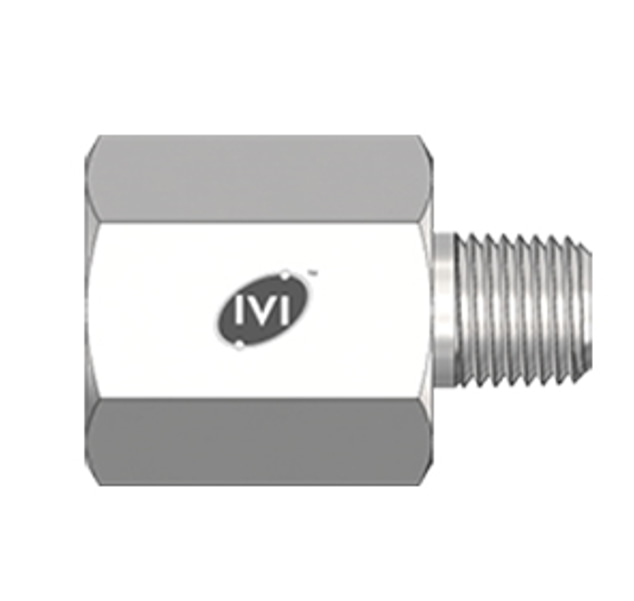

Reducing adapters Female to Male NPT are used to connect pipes or instrumentation lines of different diameters in oil and gas systems. They allow a larger pipe or fitting to join with a smaller one without leaking, ensuring the flow of liquids or gases remains safe and controlled. These fittings are especially useful in situations where space is limited or existing piping needs to be adapted to new equipment.

They are made from high-quality materials such as stainless steel, brass, or carbon steel, which can handle pressures up to 10,000 PSI. The female NPT side threads internally to receive a male pipe, while the male NPT side threads externally to connect to a female fitting. This combination provides a secure, leak-resistant connection that is durable even under high pressure, vibration, or temperature changes.

Reducing adapters are widely used in oil and gas production, processing, and distribution systems.

They are ideal for connecting instrumentation, control systems, chemical injection lines, or any piping where size changes are required. Their compact design and simple installation make them a practical choice for engineers and technicians who need reliable connections in complex piping networks.

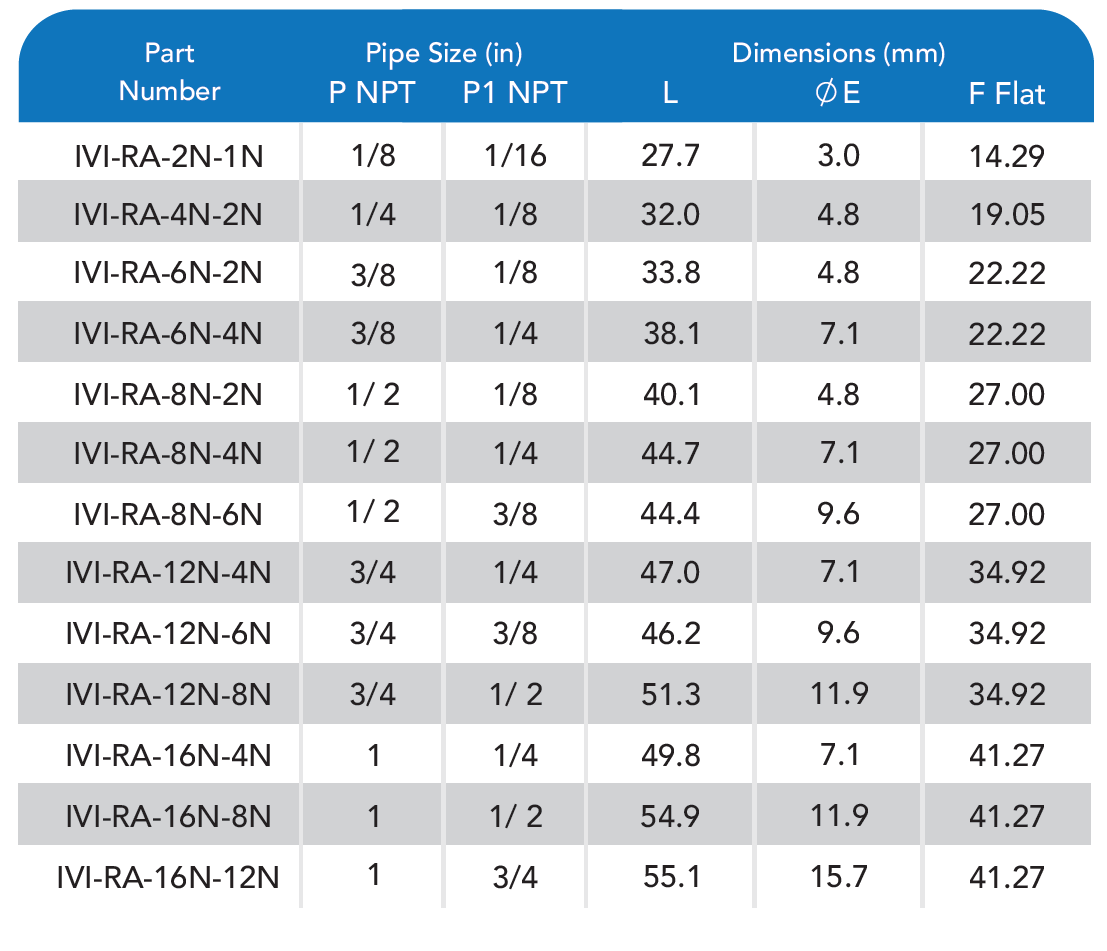

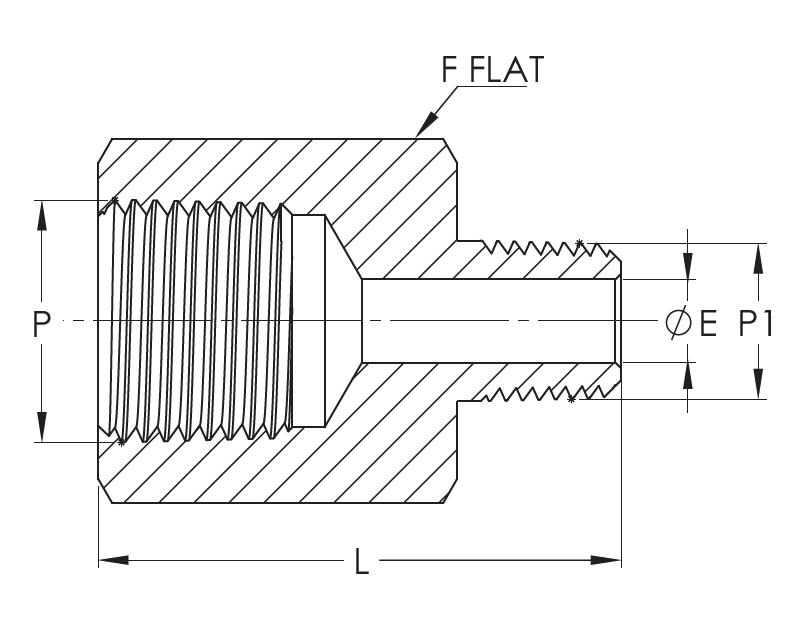

Engineering Data
