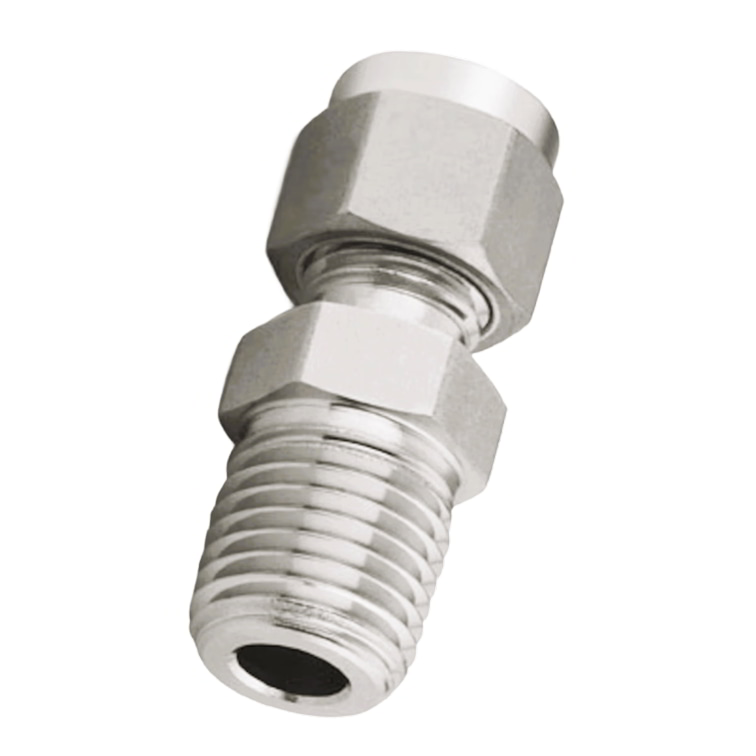

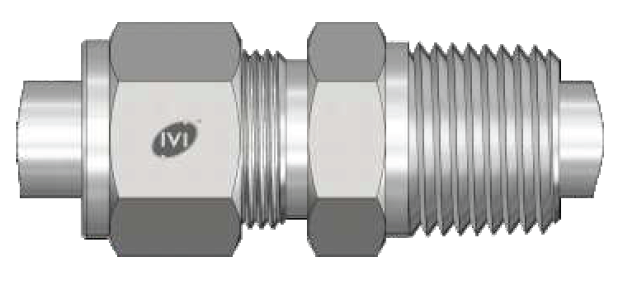

Tube Fittings Bore Through Male Connector NPT Thread – 1/16”, 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 1/2", 5/8”, 3/4”, 1” – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Tube Fitting

Also known as:

Compression Fitting, Flare Fitting, Instrumentation Fitting

Tube Fittings Bore Through Male Connector NPT Thread – 1/16”, 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 1/2", 5/8”, 3/4”, 1” – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Tube Fitting

Also known as:

Compression Fitting, Flare Fitting, Instrumentation Fitting

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

Bore Through Male Connector NPT fittings provide leak-tight, full-flow connections for tubing in oil and gas process systems.

Executive Summary

The Bore Through Male Connector NPT fittings are designed for high-pressure oil, gas, and process applications. They allow secure, full-flow connections between tubes, ensuring leak-free performance even under vibration, impulse, and heavy-duty conditions. Their design simplifies installation and maintenance, making them reliable for critical system operations.

Technical Specifications

Size Ranges 1/16” to 1”
Sealing Leak-free under vibration, vacuum, impulse
Assembly Finger-tight, ready to use
Back Ferrule Case-hardened for strength
Appearance High-quality finish
Certifications ASME B1.20.1, SAE AS71051
Material SS, Alloy, Carbon Steel, Brass, Nylon
Pressure Rating Up to 10,000 PSI
Tubing Hardness Softer than fitting material
Installation Tube bottoms on shoulder

Features and Benefits

  • Straight fittings from bar stock, shaped from forgings.
  • Ready for immediate use, finger-tight installation.
  • Reduces maintenance needs and risk of thread damage.
  • Durable and long-lasting connections.
  • Silver-plated female threads to prevent galling.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Bore Through Male Connector NPT fittings are engineered to create robust, leak-free connections in high-pressure systems. These fittings feature a bore-through design, allowing fluid or gas to flow freely without obstruction, which minimizes pressure drop and ensures consistent system performance. Made from high-quality materials, they are suitable for pressures up to 6000 PSI and are manufactured to meet ASME B16.34, MSS-SP-99, and ASME B31.3 standards.

The NPT (National Pipe Thread) male connection ensures a tight seal when connected to compatible threaded components, providing reliable performance in oil and gas, chemical, and process industries. The fittings are precision-machined for proper ferrule deformation, which ensures leak-free connections under vibration, impulse, or vacuum conditions. Silver-plated threads reduce friction and prevent galling, while the bore-through design supports high flow rates without obstruction.

Bore Through Male Connector NPT fittings are easy to install and maintain. They are finger-tight for initial assembly and then wrench-tightened to achieve a secure seal, reducing installation errors and downtime. Their design allows disconnection and reconnection without compromising sealing integrity, making them suitable for applications requiring frequent maintenance or system modifications.

These fittings are unique in combining full-flow capability, high-pressure performance, and reliable sealing in a compact, easy-to-install form, making them ideal for demanding oil and gas systems, process lines, and high-pressure instrumentation setups.

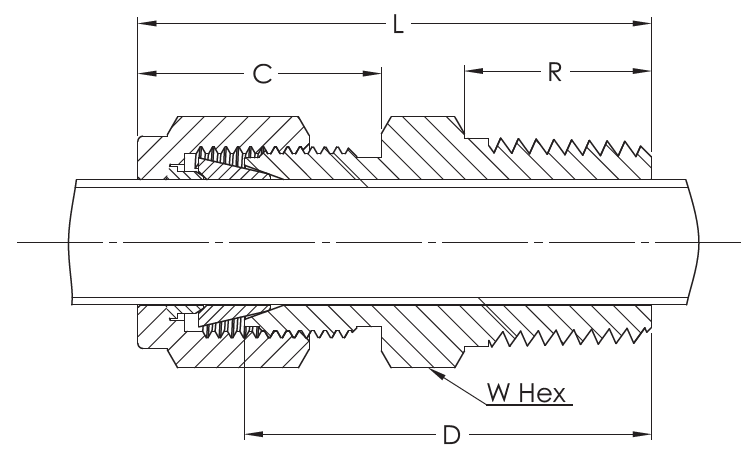

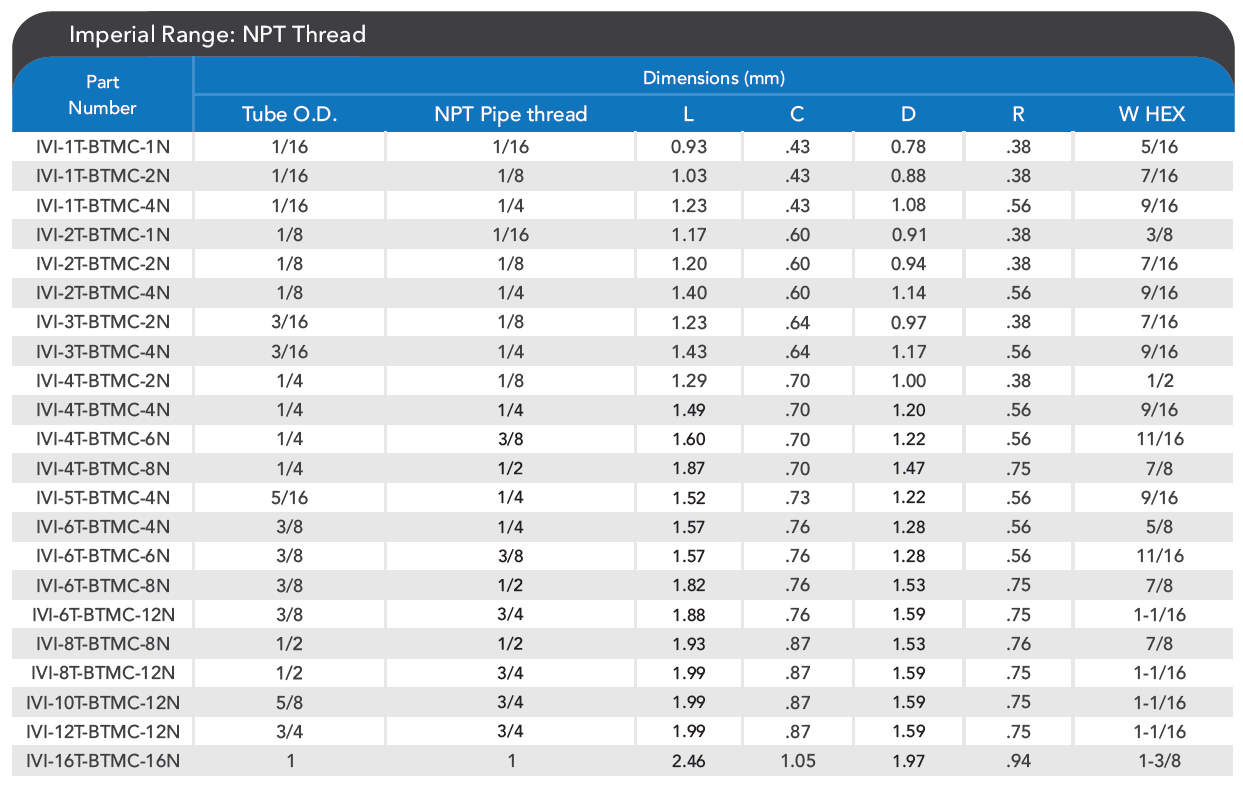

Engineering Data
