Ball Valve Lever Operated 3-Way Female × Female Side Entry, is a valve used to control or divert fluid flow in oil and gas piping systems.

Executive Summary

The Ball Valve Lever Operated 3-Way Female × Female Side Entry is an isolation valve designed to control or divert fluid flow in oil and gas piping systems. Its female × female connections allow secure inline installation without male fittings, while the side entry configuration enables flow to be directed between multiple pipelines.

The valve operates with a quarter-turn lever and a floating ball design to provide reliable, leak-proof shut-off in high-pressure applications.

Technical Specifications

Connection Female x Female
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Design Standard ASME B16.34
Pressure-Temperature Rating ASME B16.34
Piping Code ASME B31.3
Type Test MSS-SP-99
Flow Splits flow
Configuration 3-Way

Features and Benefits

  • Ensures proper performance in process piping systems.
  • Reduces maintenance cost and extends valve life.
  • Resistant to sour gas corrosion.
  • Internally loaded stem with shoulder.
  • 3-Way floating ball design.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Ball Valve Lever Operated 3-Way Female × Female Side Entry is a high-performance valve designed to control or divert fluid flow in oil and gas piping systems. Its 3-way configuration allows flow to be directed between multiple pipelines, making it ideal for applications such as flow diversion, sampling lines, injection systems, or process line bypasses.

The valve supports split flow and is suitable for pressures up to 6000 PSI (maximum 10000 PSI on request) and temperatures from –40 °F to 450 °F (–40 °C to 232 °C).

The female × female connections enable secure inline installation without the need for male fittings, simplifying assembly and reducing potential leak points. The valve features a floating ball design for seat wear compensation, ensuring consistent, leak-proof shut-off under high-pressure conditions.

It is manufactured and tested to ASME B16.34 standards, pressure-temperature rated to ASME B31.3, and type-tested to MSS-SP-99, providing verified performance and reliability in industrial environments.

Operation is efficient and reliable with a quarter-turn lever, allowing fast control with low torque. The internally loaded stem with shoulder prevents blowout, enhancing safety, while replaceable seats and packings extend service life. Fire-safe designs and optional compliance with NACE MR0175 standards are available, and heat code traceability ensures material verification.

Built for demanding industrial environments, the valve is suitable for a wide range of oil and gas applications where flow control, diversion, and durability are critical.

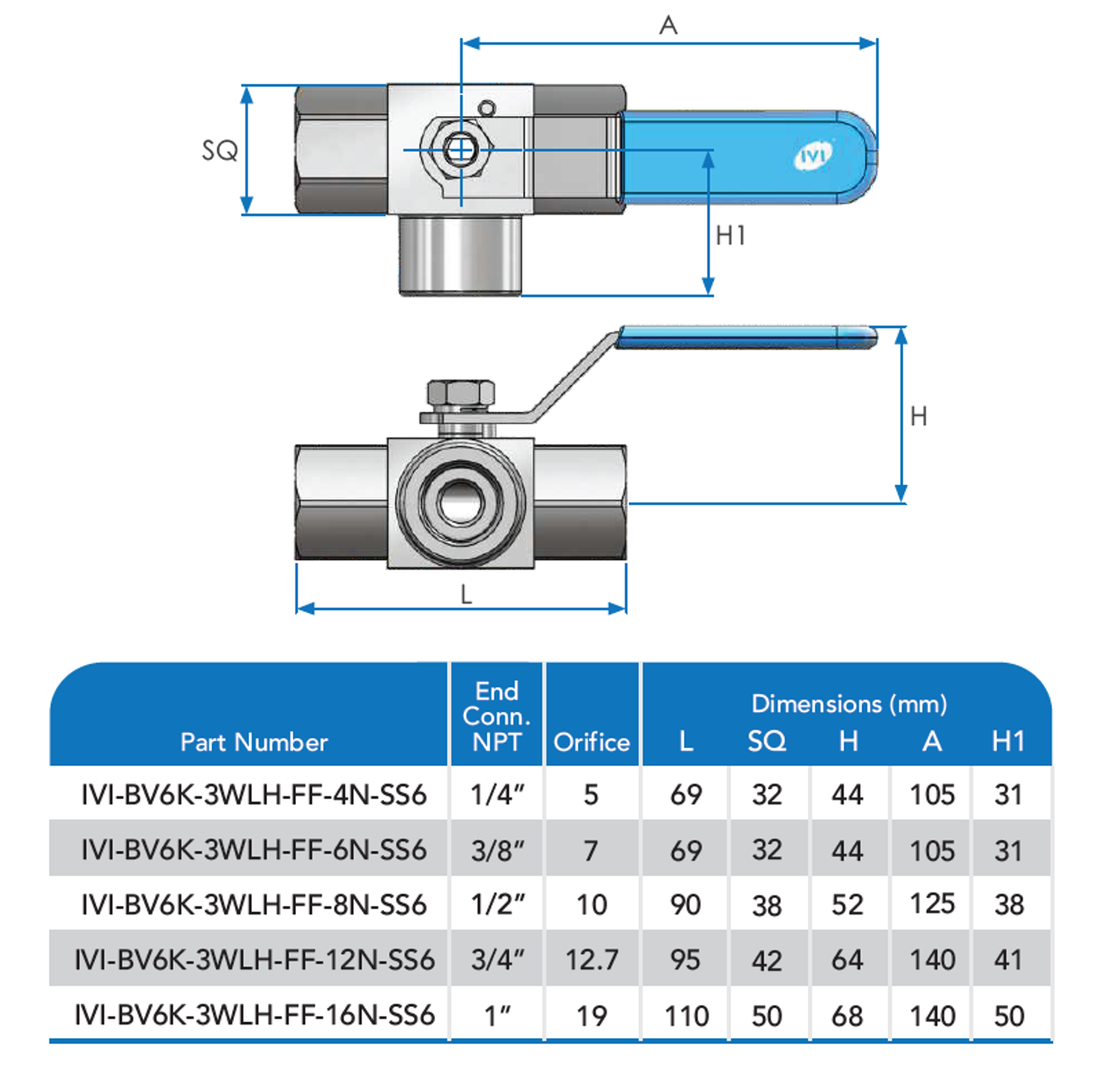

Engineering Data
