Executive Summary

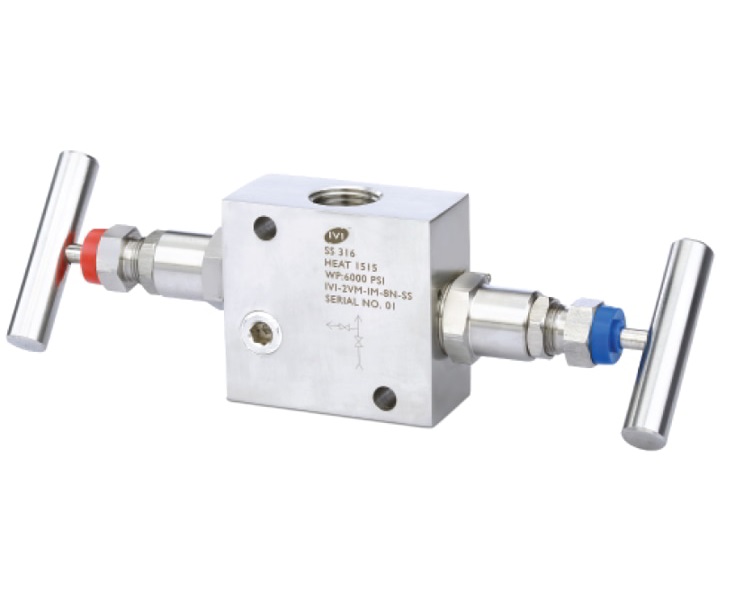

The R Type 2 Valve Manifold Integral Mount 1/2” Female NPT is designed for connecting impulse lines to pressure transmitters in oil and gas applications. It features a compact two-valve configuration that enables easy block, bleed, and calibration of static pressure transmitters while maintaining a secure, leak-free seal.
This manifold is ideal when space is limited or when direct mounting to a transmitter is required, providing reliable and efficient pressure measurement. Its integral mount design reduces piping complexity and ensures consistent performance under high-pressure conditions.
Technical Specifications
| Inlet/Process | 1/2” Female NPT |
| Outlet/Instrument | 1/2” Female NPT |
| Drain/Vent Port | 1/4” Female NPT |
| Type | R type 2 valve manifold |
| Standard Working Pressure | 6000 PSI |
| Pressure-Temperature Ratings | ASME B16.34 |
| Process Piping Code | ASME B31.3 |
| Temperature Rating | -50°C to 230°C |
| Body-Bonnet Seal | Metal-to-metal |
| Type Tested | MSS-SP-99 |
Features and Benefits
- Integral mount design connects directly to transmitters for secure and stable installation.
- Minimizes risk of process leakage and enhances operational safety.
- Compatible with a wide range of pressure transmitters and gauges.
- Dust cap on stem prevents contamination and protects threads.
- Wide temperature range capability.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description
The R Type 2 Valve Manifold Integral Mount 1/2” Female NPT is a compact and robust solution for connecting impulse lines directly to pressure transmitters or gauges. It features a simple two-valve arrangement that allows operators to block process pressure, safely bleed trapped pressure, and calibrate transmitters without the need for additional piping. This configuration ensures quick and efficient maintenance and reduces potential leak points.
Its integral mount design allows the manifold to be attached directly to the transmitter, eliminating the need for extra brackets or complex assemblies. This not only saves space but also provides a secure and stable connection, which is particularly useful in oil and gas applications where reliability under high-pressure conditions is critical.
The manifold is constructed with a metal-to-metal body and bonnet seal to handle pressures up to 6000 PSI, with higher pressure options available upon request. It is fully factory tested for seat and packing leakage, and materials can be supplied to meet NACE MR 01 75 standards. The R Type is suitable for a wide temperature range and is designed to provide smooth operation, long-term durability, and leak-free performance even in demanding field conditions.

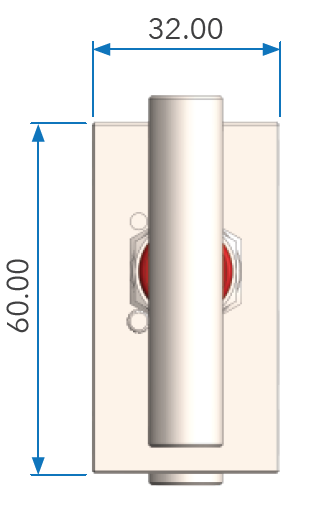

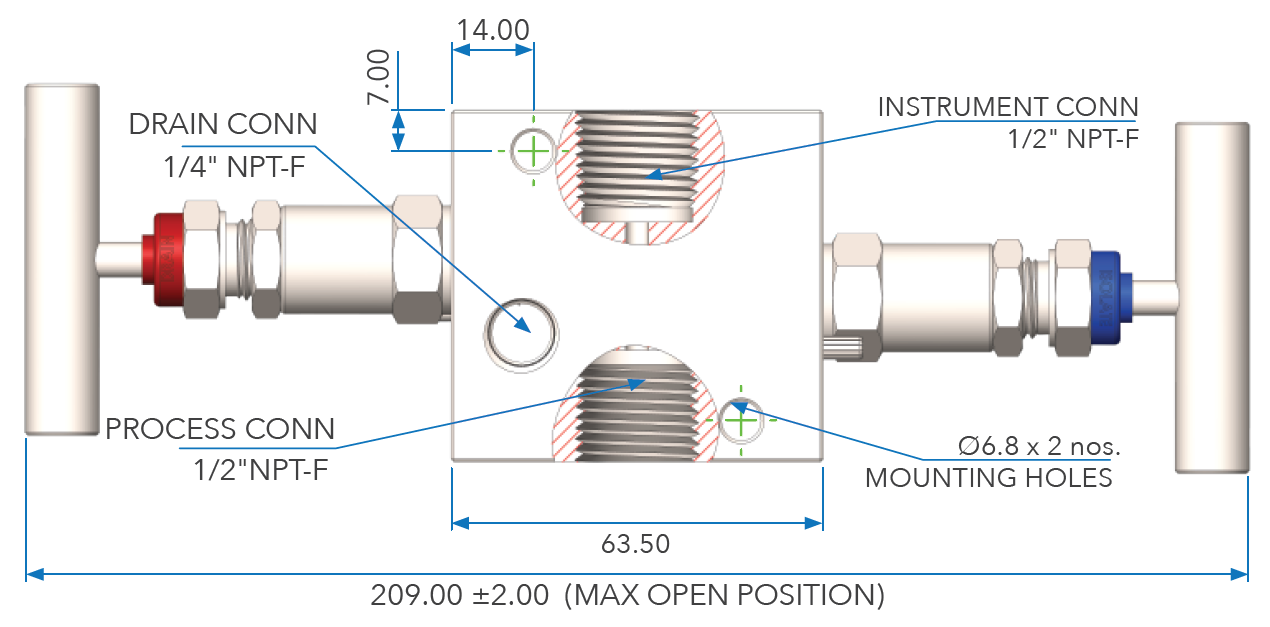

Engineering Data
