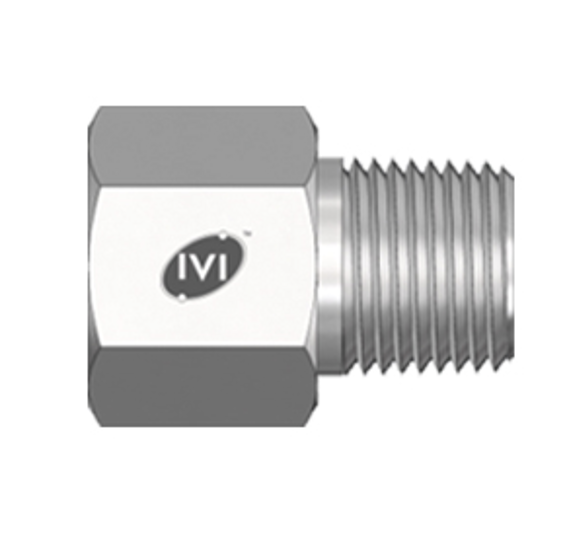

Pipe Fittings Gauge Adapters – Female ISO Parallel Thread to Male NPT – 1/4", 3/8", 1/2" – 10000 PSI – ASME B1.20.1 / SAE AS71051 / ISO 7-1 / ISO 228

Pipe Fitting

Also known as:

Pipe Connectors, Piping Fittings, Fittings

Pipe Fittings Gauge Adapters – Female ISO Parallel Thread to Male NPT – 1/4", 3/8", 1/2" – 10000 PSI – ASME B1.20.1 / SAE AS71051 / ISO 7-1 / ISO 228

Pipe Fitting

Also known as:

Pipe Connectors, Piping Fittings, Fittings

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

Gauge adapters with female ISO parallel thread to male NPT connect instruments to piping for secure, leak-tight pressure measurement in oil and gas and industrial systems.

Executive Summary

Gauge adapters with a female ISO parallel thread to male NPT provide a reliable connection between instruments and piping systems. They are used to attach pressure gauges, transmitters, or other instrumentation in oil and gas and industrial applications.

The female ISO thread ensures compatibility with standard instruments, while the male NPT allows connection to piping, providing a secure, leak-resistant seal. These adapters are suitable for high-pressure environments and help maintain accurate measurement and system integrity.

Technical Specifications

Size Range 1/4” to 1/2”
Material SS 316, Brass, Carbon Steel
Temperature Range for Ratings -28 to 37°C (-20 to 100°F)
Pressure Ratings Based on ASME B31.3 at ambient temperature
Thread Engagement Standard ASME B1.20.1 for NPT threads
Internal Surface Burr-free
Cleaning Free from machine oils, loose particles, grease
Type Instrumentation and Process Control
Thread Protection Capped and properly packed
Recommended Seal PTFE tape for male tapered threads

Features and Benefits

  • Connects instruments with female ISO threads to male NPT piping.
  • Compatible with a wide range of instruments and piping systems.
  • Long-lasting and reduces the risk of downtime.
  • Reliable and safe under high-pressure industrial conditions.
  • Ensures accurate measurement of pressure or other parameters.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

Gauge adapters with a female ISO parallel thread to male NPT are small but essential components used to connect measurement instruments, such as pressure gauges or transmitters, to piping systems in industrial and oil and gas applications.

The female ISO thread screws directly onto the instrument, while the male NPT thread connects securely to the pipe or tube, creating a tight and leak-resistant connection.

These adapters are made from high-quality materials such as stainless steel or brass, which makes them durable and resistant to corrosion, even in harsh environments. They are designed to handle high pressures, up to 10,000 PSI, ensuring that instruments provide accurate readings without risk of failure.

They follow international thread standards including ASME B1.20.1, SAE AS71051, ISO 7-1, and ISO 228, which guarantees compatibility with other equipment and ensures reliable performance in critical systems. This makes them a practical and dependable choice for monitoring and controlling fluids.

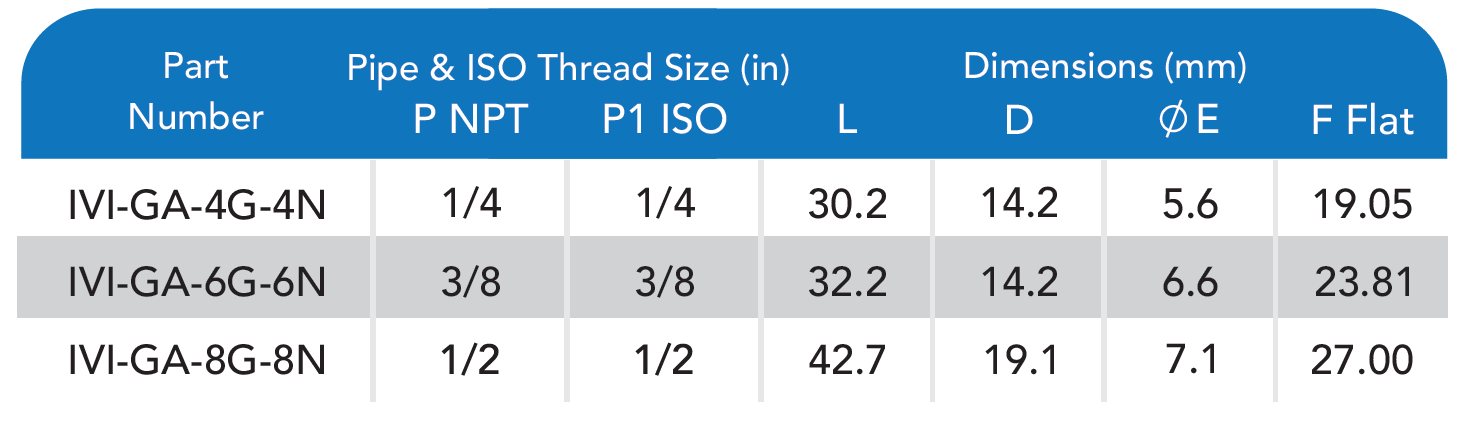

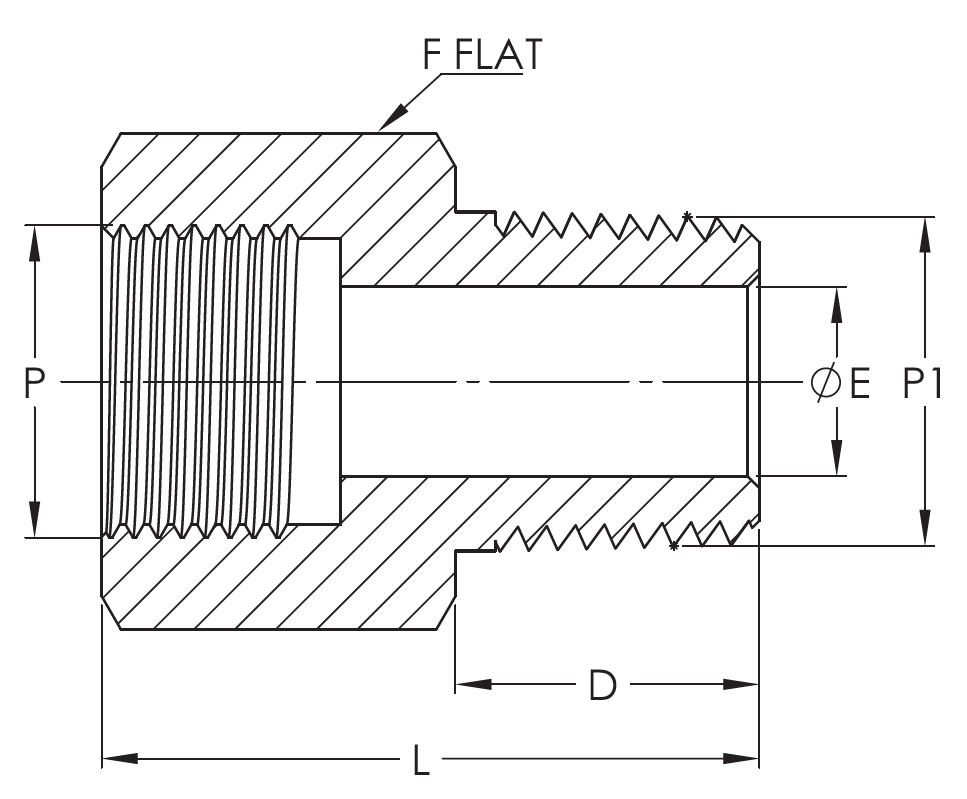

Engineering Data
