Ball Valve Panel Mounted – 2-Way Female x Female End Connection – 1/4”, 3/8”, 1/2”, 3/4”, 1” – 6000 PSI – ASME B16.34 / ISO 9001

Ball Valve

Also known as:

Shut-off Valve, Quarter-turn Valve

Ball Valve Panel Mounted – 2-Way Female x Female End Connection – 1/4”, 3/8”, 1/2”, 3/4”, 1” – 6000 PSI – ASME B16.34 / ISO 9001

Ball Valve

Also known as:

Shut-off Valve, Quarter-turn Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

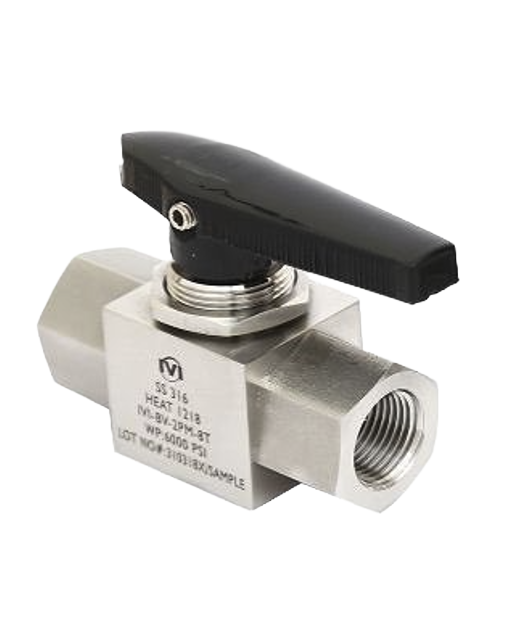

The Panel Mounted Ball Valve 2-Way Female x Female is a valve used to control or shut off fluid flow in oil and gas piping systems, with a panel-mounted design for easy installation and operation.

Executive Summary

The Panel Mounted Ball Valve 2-Way Female × Female is an isolation valve used to start, stop, or control fluid flow in oil and gas piping systems. The 2-way design allows flow in either direction between two ports, while the female × female connections provide secure inline installation without additional fittings.

The panel-mounted configuration enables the valve to be operated conveniently from a control panel, making it suitable for systems where multiple valves need centralized or accessible control.

Technical Specifications

Connection Female × Female
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Design Standard ASME B16.34
Pressure-Temperature Rating ASME B16.34
Piping Code ASME B31.3
Type Test MSS-SP-99
Flow Bi-Directional
Configuration 2-Way straight

Features and Benefits

  • Compact design for maximum flow.
  • Leak-proof performance under high pressure.
  • Wide range of materials for corrosion resistance and compatibility.
  • Fast, low-torque operation with clear flow indication.
  • Panel-mounted design with mounting nut for easy installation.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Panel Mounted Ball Valve, 2-Way Female × Female, is an isolation valve designed to control, start, or stop fluid flow in oil and gas piping systems. Its 2-way configuration allows flow in either direction between two ports, providing reliable on/off operation for process lines, sampling, injection systems, or bypass lines.

The female × female connections provide secure inline installation without the need for additional fittings, reducing potential leak points and simplifying system integration. The panel-mounted design enables operation from a control panel, making it suitable for applications where multiple valves are centralized or access to the pipeline is limited.

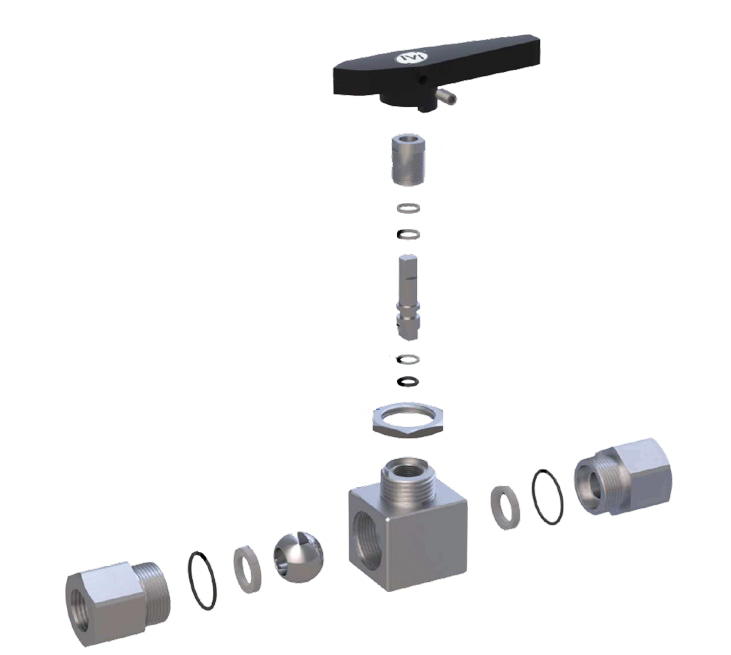

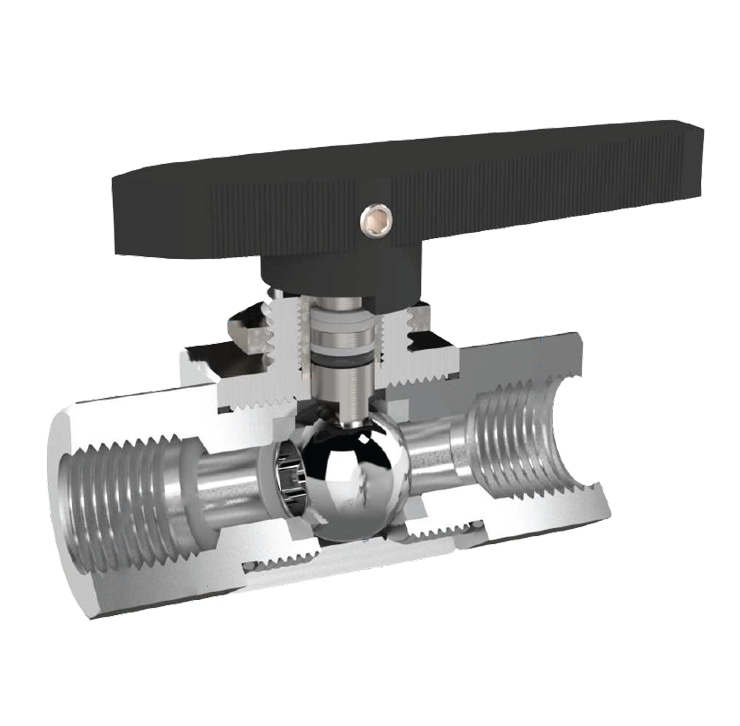

The valve features a floating ball design that ensures leak-proof shut-off under high-pressure conditions. Operation is achieved via a quarter-turn handle, which indicates flow direction and allows fast, low-torque control. The three-piece construction facilitates easy installation, maintenance, and replacement of internal components. It is factory tested for seat and stem leakage and is available in a range of corrosion-resistant materials including SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, and Monel. Optional compliance with NACE MR0175 and fire-safe designs make it suitable for demanding industrial environments.

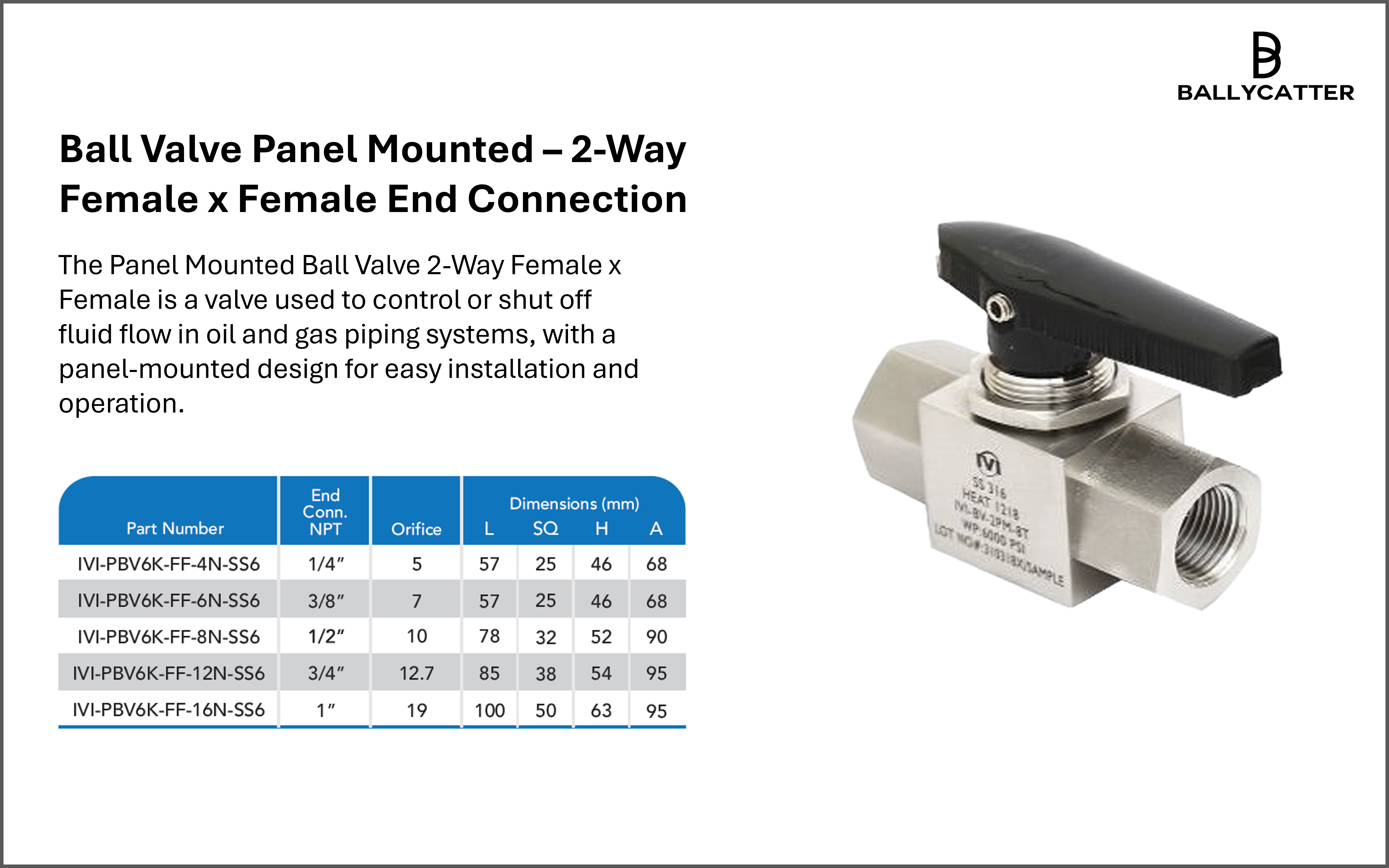

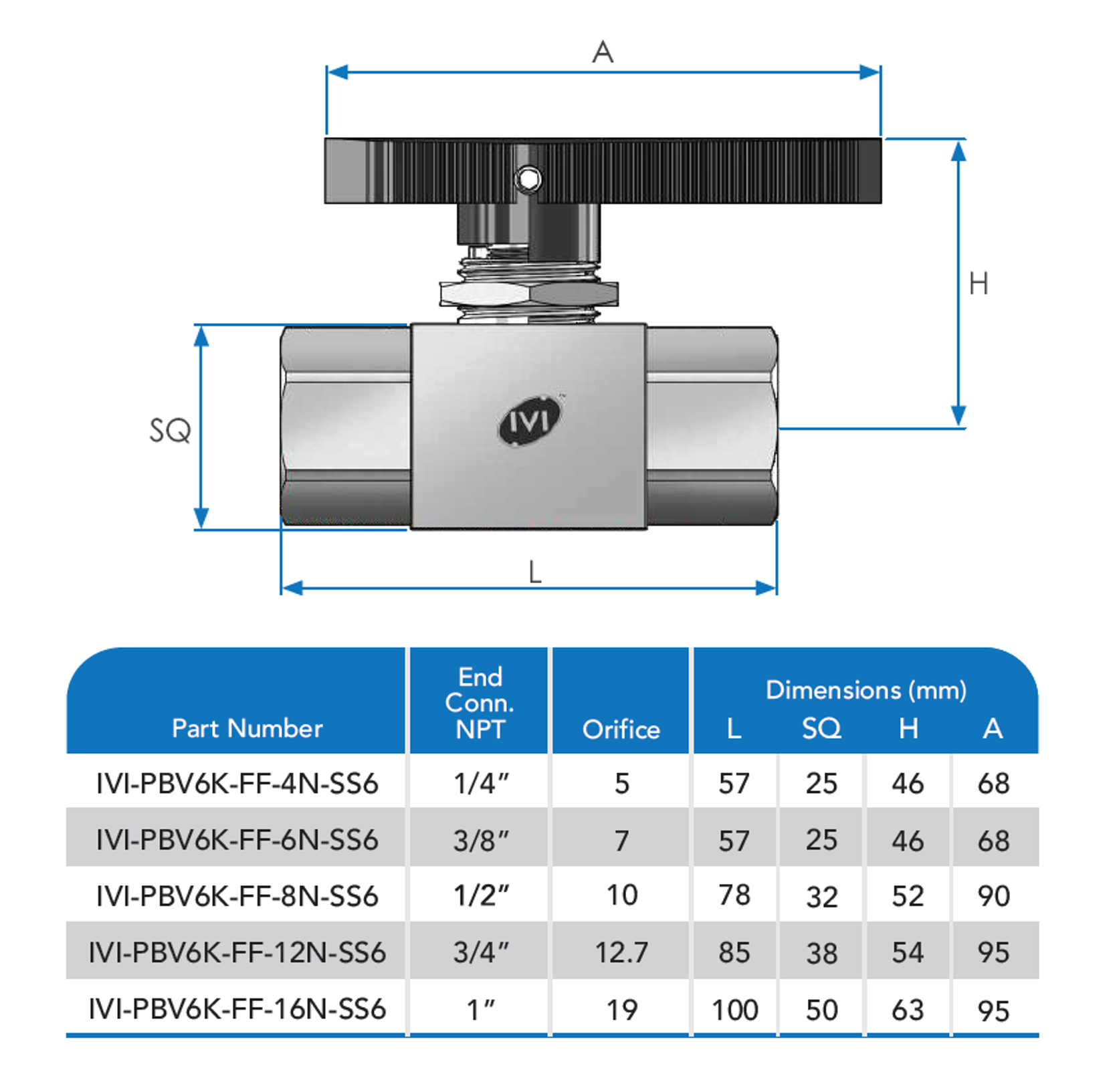

Engineering Data
