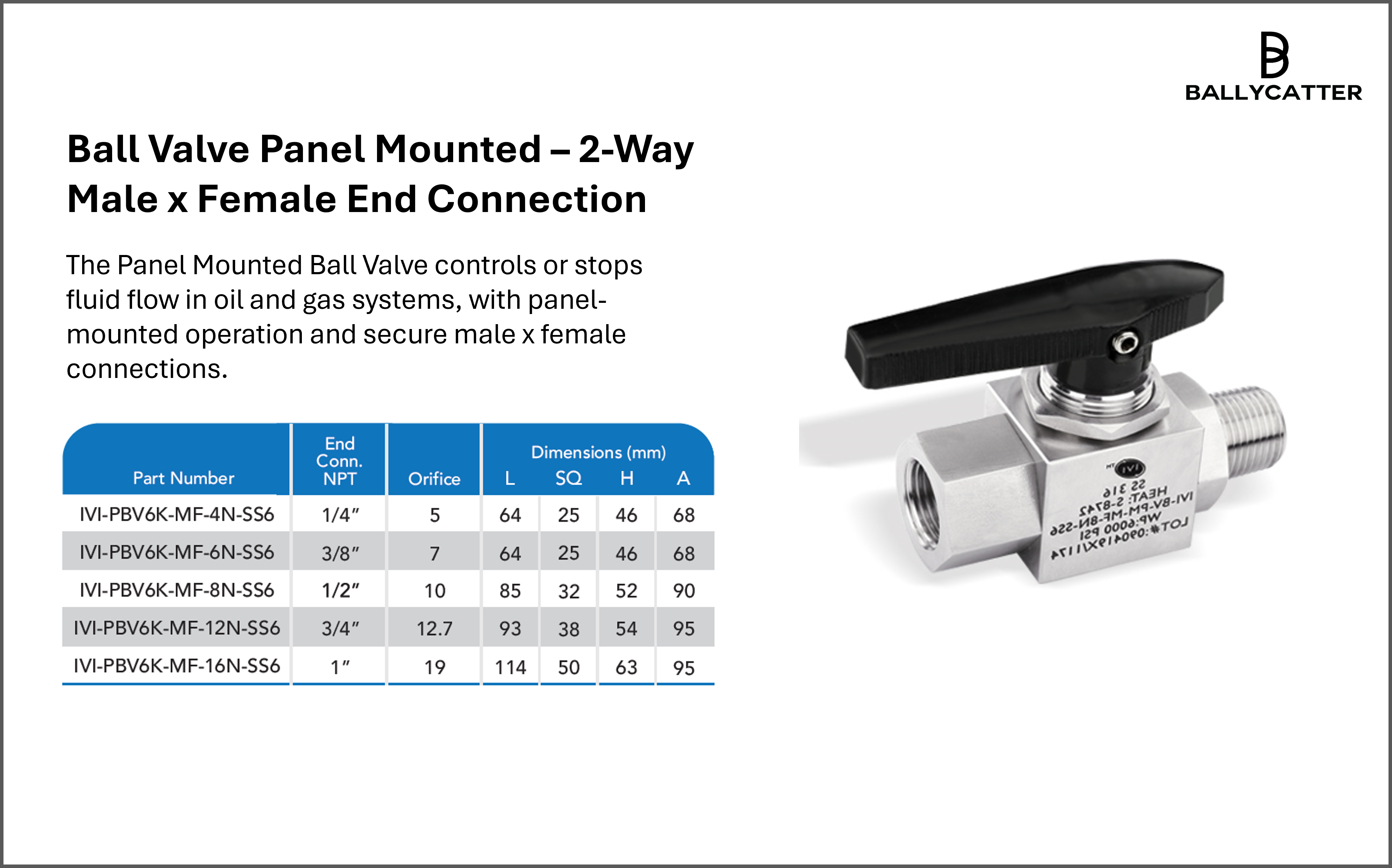

Ball Valve Panel Mounted – 2-Way Male x Female End Connection – 1/4”, 3/8”, 1/2”, 3/4”, 1” – 6000 PSI – ASME B16.34 / ISO 9001

Ball Valve

Also known as:

Shut-off Valve, Quarter-turn Valve

Ball Valve Panel Mounted – 2-Way Male x Female End Connection – 1/4”, 3/8”, 1/2”, 3/4”, 1” – 6000 PSI – ASME B16.34 / ISO 9001

Ball Valve

Also known as:

Shut-off Valve, Quarter-turn Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

The Panel Mounted Ball Valve controls or stops fluid flow in oil and gas systems, with panel-mounted operation and secure male x female connections.

Executive Summary

This 2-way panel-mounted ball valve with male x female connections is used to control or stop fluid flow in oil and gas piping systems. It allows bi-directional flow between two ports and provides secure, inline installation compatible with existing pipelines. The panel-mounted design enables convenient operation from a control panel, while the floating ball design ensures reliable, leak-proof shut-off with simple quarter-turn handle operation.

Technical Specifications

Connection Male × Female
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Design Standard ASME B16.34
Pressure-Temperature Rating ASME B16.34
Piping Code ASME B31.3
Type Test MSS-SP-99
Flow Bi-Directional
Configuration 2-Way straight

Features and Benefits

  • Panel mounted design.
  • Three-piece construction for easy installation and maintenance.
  • Leak-proof performance under high pressure.
  • Compact design reduces space requirements and pressure drop.
  • Meets recognized industrial standards for safety and reliability.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

This 2-way panel-mounted ball valve with male x female connections is designed to control, start, or stop fluid flow in oil and gas piping systems. Its 2-way configuration allows fluid to flow in either direction between two ports, providing reliable on/off operation for pipelines, sampling lines, injection systems, or process bypasses.

The male x female connections allow secure inline installation and easy integration into existing piping without requiring additional fittings. The panel-mounted design enables operation from a control panel, making it suitable for systems where multiple valves need centralized access or where physical access to the pipeline is limited.

The valve features a floating ball design for leak-proof shut-off under high-pressure conditions. Operation is simple with a quarter-turn handle that provides fast, low-torque control. The three-piece construction allows easy installation and maintenance, including replacement of internal components. Factory testing ensures seat and stem integrity, and the valve is available in a range of corrosion-resistant materials, including SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, and Monel. Optional compliance with NACE MR0175 and fire-safe designs makes it suitable for demanding industrial environments.

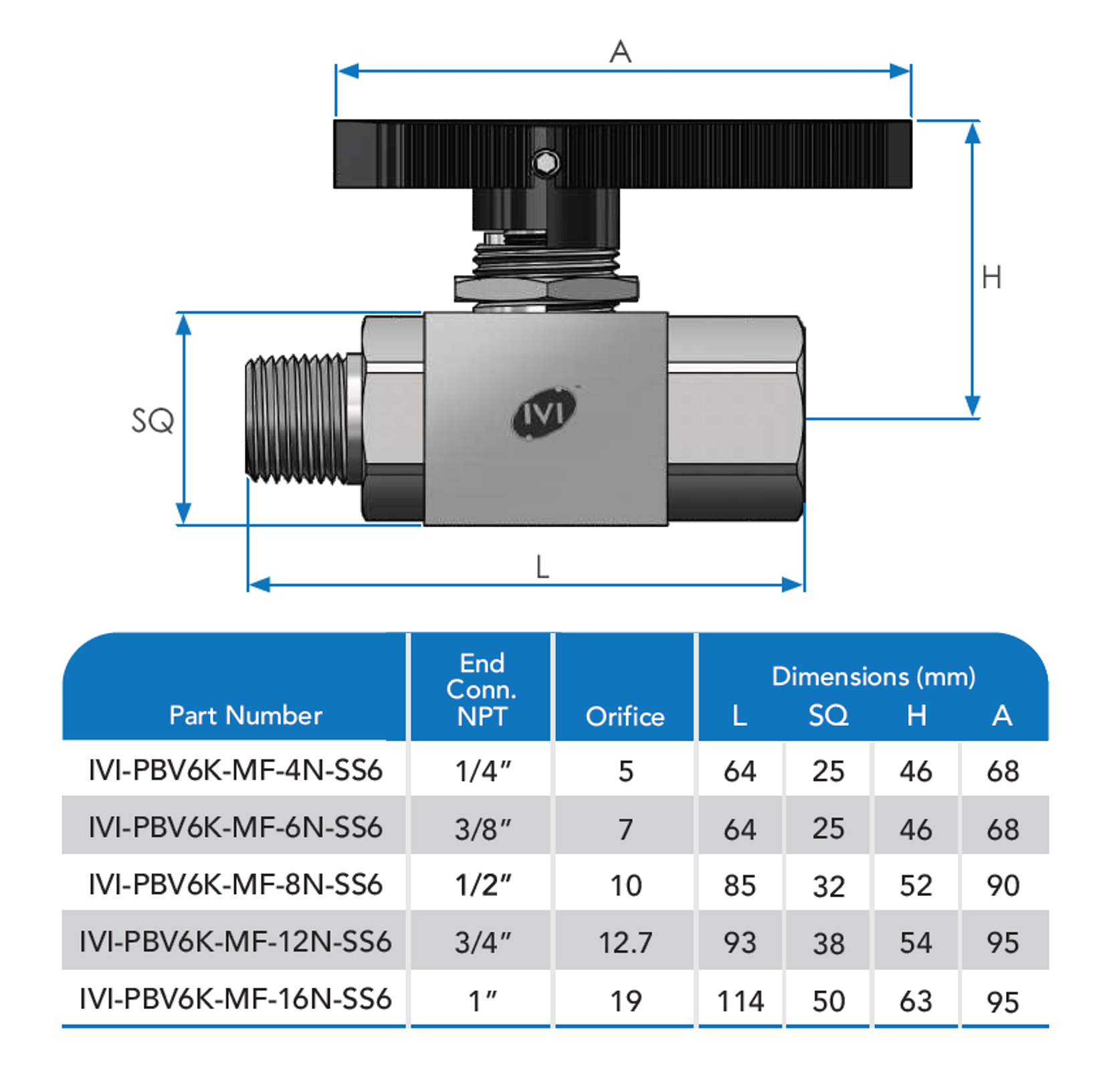

Engineering Data
