Executive Summary

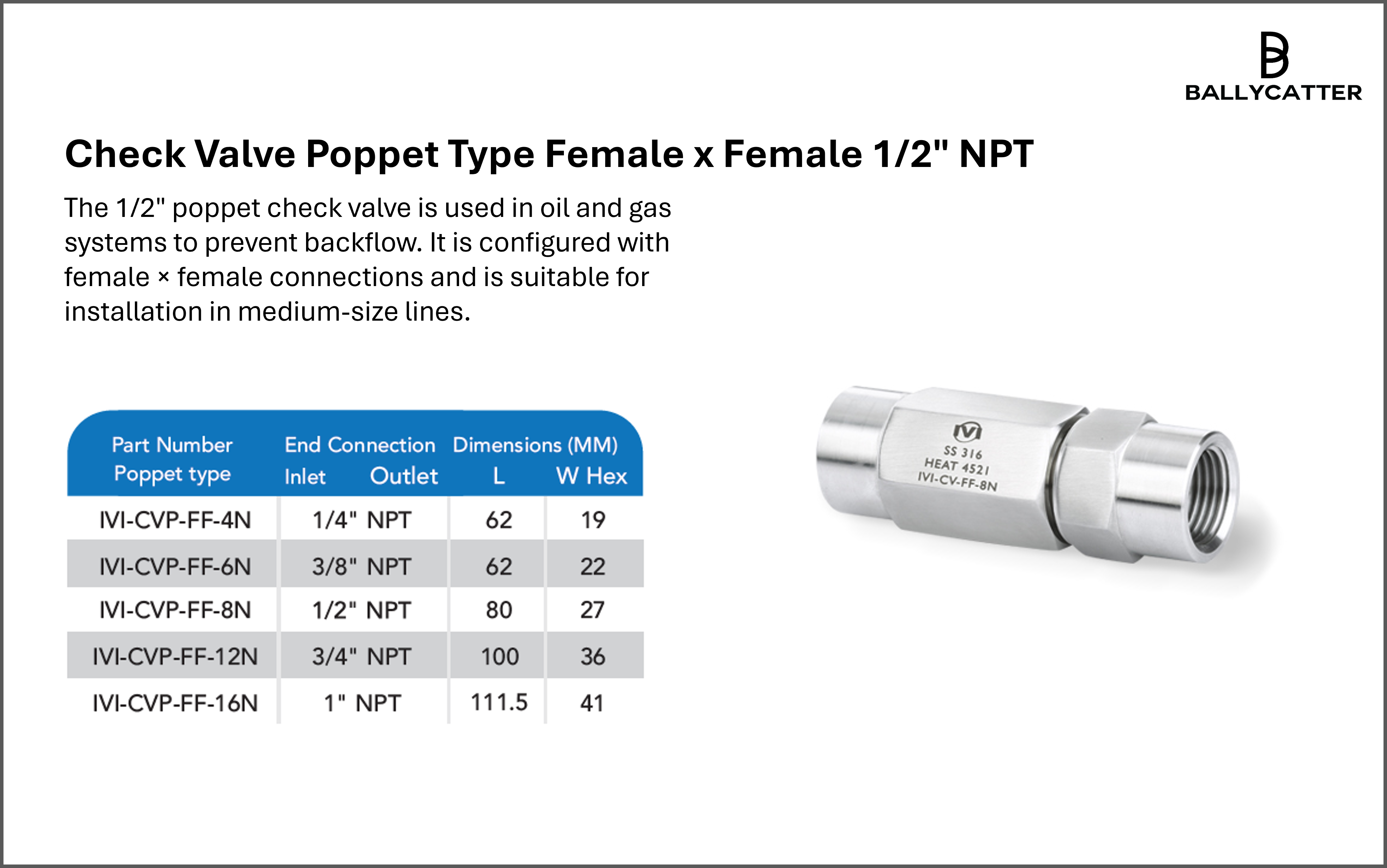

The 1/2" poppet type check valve allows fluid to flow in one direction and prevents backflow in oil and gas systems. It is suitable for medium diameter lines, instrumentation, and control applications. Female × female NPT connections enable secure inline installation and integration into existing piping.

The valve is rated for a standard working pressure of 6000 psi and is manufactured to ISO 9001 standards. It is made from corrosion-resistant materials and factory tested for cracking and reseal performance, ensuring reliable operation in demanding oil and gas environments.

Technical Specifications

End Connection Female x Female NPT
Size 1/2"
Flow Direction Uni-directional
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Cracking Pressure 1/3 to 25 PSI
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Materials SS 316, Brass, Monel 400
Installation Inline or panel-mounted integration possible
Valve Type Poppet Check Valve

Features and Benefits

  • Easy integration into existing piping without extra fittings.
  • Minimizes maintenance requirements while maintaining consistent operation.
  • Adjustable cracking pressure allows system-specific optimization.
  • Standard working pressure of 6000 PSI.
  • Poppet type design for fast response and positive sealing.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

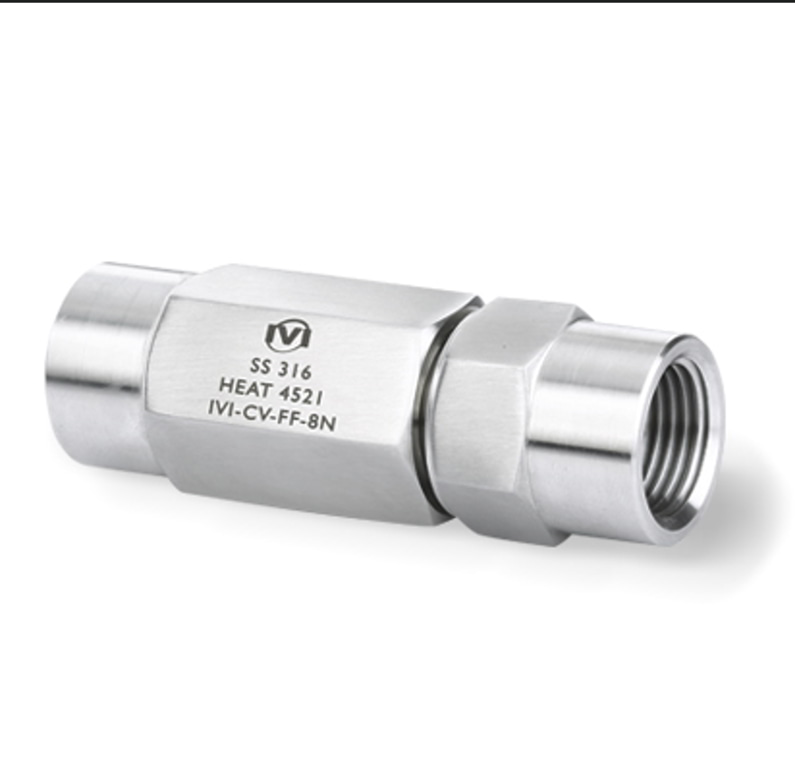

The 1/2" poppet check valve with female × female NPT connections is designed to allow fluid to flow in only one direction while preventing any backflow. This is important in oil and gas systems because backflow can damage pumps, pipelines, and other equipment. The valve is commonly used in medium-sized lines, instrumentation, sampling, and control applications where reliable flow control is required.

The valve operates at a standard pressure of 6000 psi, with optional configurations available for pressures up to 10000 psi. Cracking pressures, the minimum pressure needed to open the valve, can be selected from 1/3 to 25 psi, giving flexibility to match the needs of specific systems. Its poppet mechanism responds quickly to flow changes and provides a tight seal, ensuring consistent performance and preventing leaks.

Made from corrosion-resistant materials such as SS 316, SS 316L, Duplex, Super Duplex, Hastelloy C276, Inconel 625, Monel 400, and Brass, the valve is suitable for harsh oil and gas environments. Female × female NPT connections allow for secure inline installation without extra fittings, reducing the risk of leaks and simplifying integration into existing piping.

Each valve is factory tested for cracking and reseal performance, ensuring it opens and closes reliably. Heat code traceability is provided to verify material quality. Additional testing, such as vibration, temperature, and helium testing, can be requested for applications requiring high reliability.

This valve is compact, durable, and designed for long-term operation with minimal maintenance. It helps maintain system pressure, protects critical equipment, and ensures that oil and gas systems operate safely and efficiently.

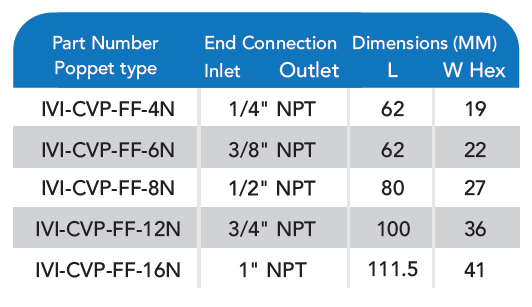

Engineering Data
