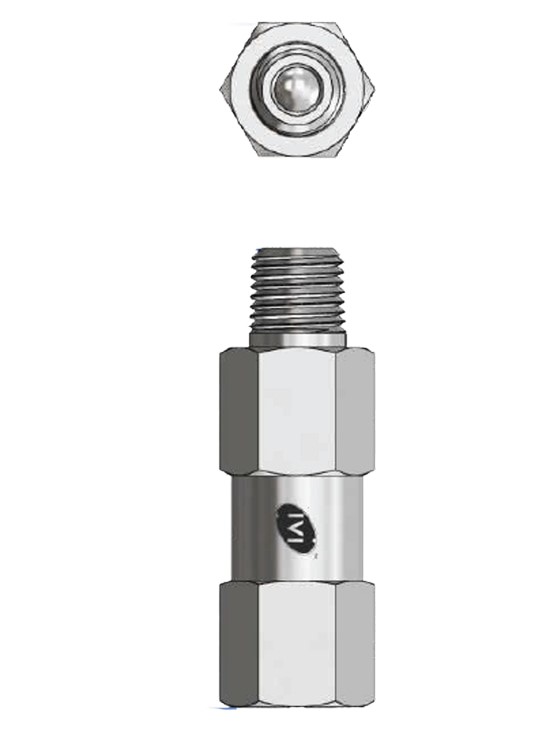

Check Valve Poppet Type – Male x Female 1/2" NPT – 6000 PSI – ISO 9001

Check Valve

Also known as:

Non-return Valve, One-way Valve, Reflux Valve, Retention Valve

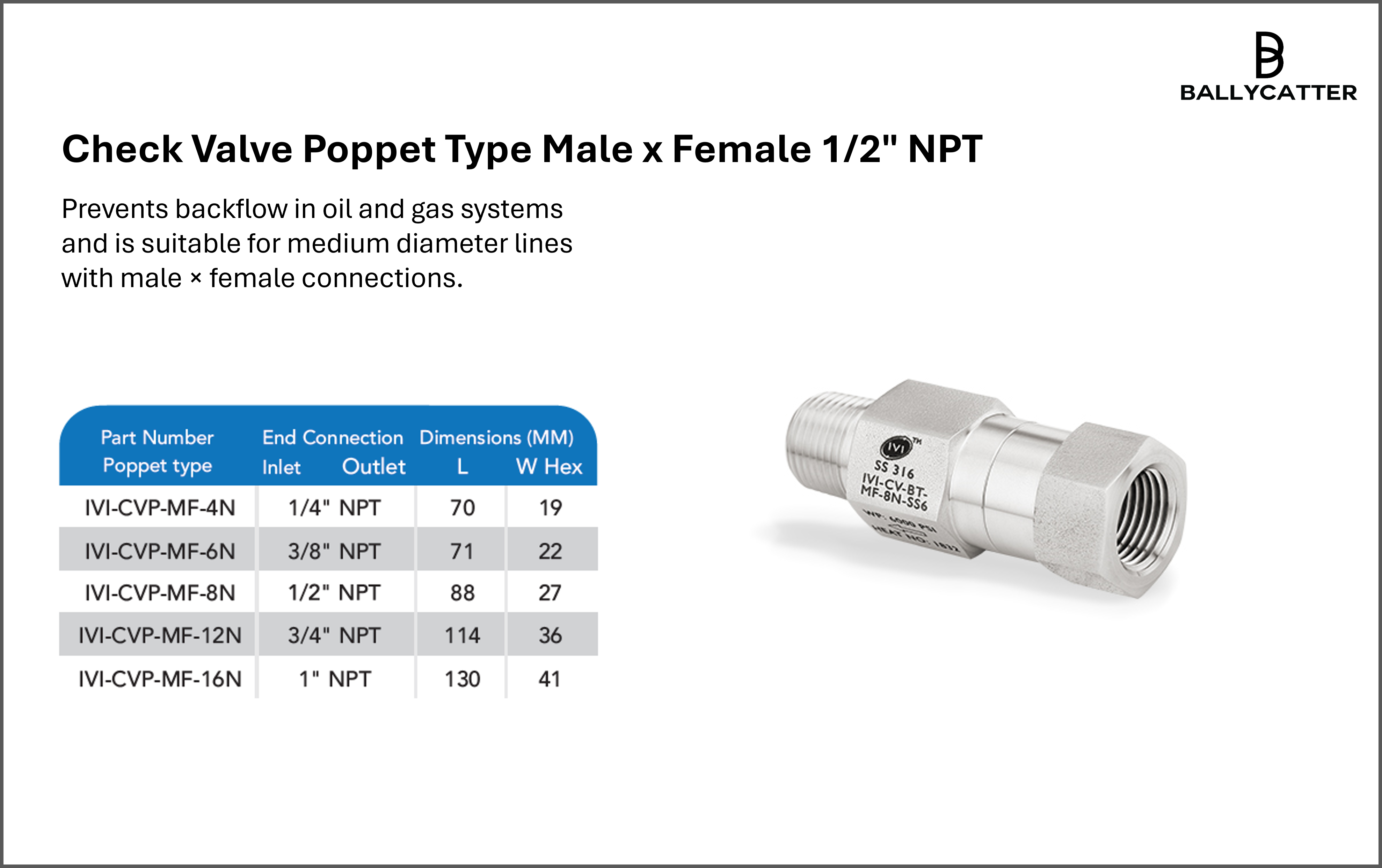

Check Valve Poppet Type – Male x Female 1/2" NPT – 6000 PSI – ISO 9001

Check Valve

Also known as:

Non-return Valve, One-way Valve, Reflux Valve, Retention Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

The 1/2" poppet type check valve prevents backflow in oil and gas systems and is suitable for medium diameter lines with male × female connections.

Executive Summary

The 1/2" poppet type check valve allows fluid to flow in one direction while preventing backflow in oil and gas systems. It is suitable for medium diameter lines, instrumentation, and control applications. Male × female NPT connections provide secure inline installation and easy integration into existing piping, ensuring reliable operation under standard and high-pressure conditions.

Technical Specifications

End Connection Male x Female NPT
Size 1/2"
Flow Direction Uni-directional
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Cracking Pressure 1/3 to 25 PSI
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Materials SS 316, Brass, Monel 400
Installation Inline or panel-mounted integration possible
Valve Type Poppet Check Valve

Features and Benefits

  • Pneumatic testing at 1000 psig to verify seat integrity.
  • Adjustable cracking pressure allows system-specific performance.
  • Protects pipelines, pumps, and equipment from backflow and pressure fluctuations.
  • Male × female NPT connections for secure inline installation.
  • Heat code traceability for material verification.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The 1/2" poppet type check valve with male × female NPT connections is designed to allow fluid flow in one direction while preventing backflow in oil and gas systems. Its poppet mechanism provides fast response and a positive seal under pressure, protecting pipelines, pumps, and equipment from reverse flow and pressure fluctuations.

The 1/2" size is suitable for medium diameter lines, instrumentation, sampling, and control applications where reliable uni-directional flow is required. Male × female connections enable secure inline installation and integration into existing piping systems without additional fittings, reducing potential leak points and simplifying system layout.

The valve has a standard working pressure of 6000 psi, with optional configurations up to 10000 psi. Selectable cracking pressures range from 1/3 to 25 psi, allowing precise adaptation to system requirements. Construction materials include corrosion-resistant SS 316, SS 316L, Duplex, Super Duplex, Hastelloy C276, Inconel 625, Monel 400, and Brass, ensuring durability in demanding oil and gas environments.

All valves are factory tested for cracking and reseal performance, with pneumatic testing at 1000 psig to verify seat integrity. Heat code traceability ensures quality and material verification, and additional testing including vibration, temperature, and helium is available for critical applications requiring high reliability.

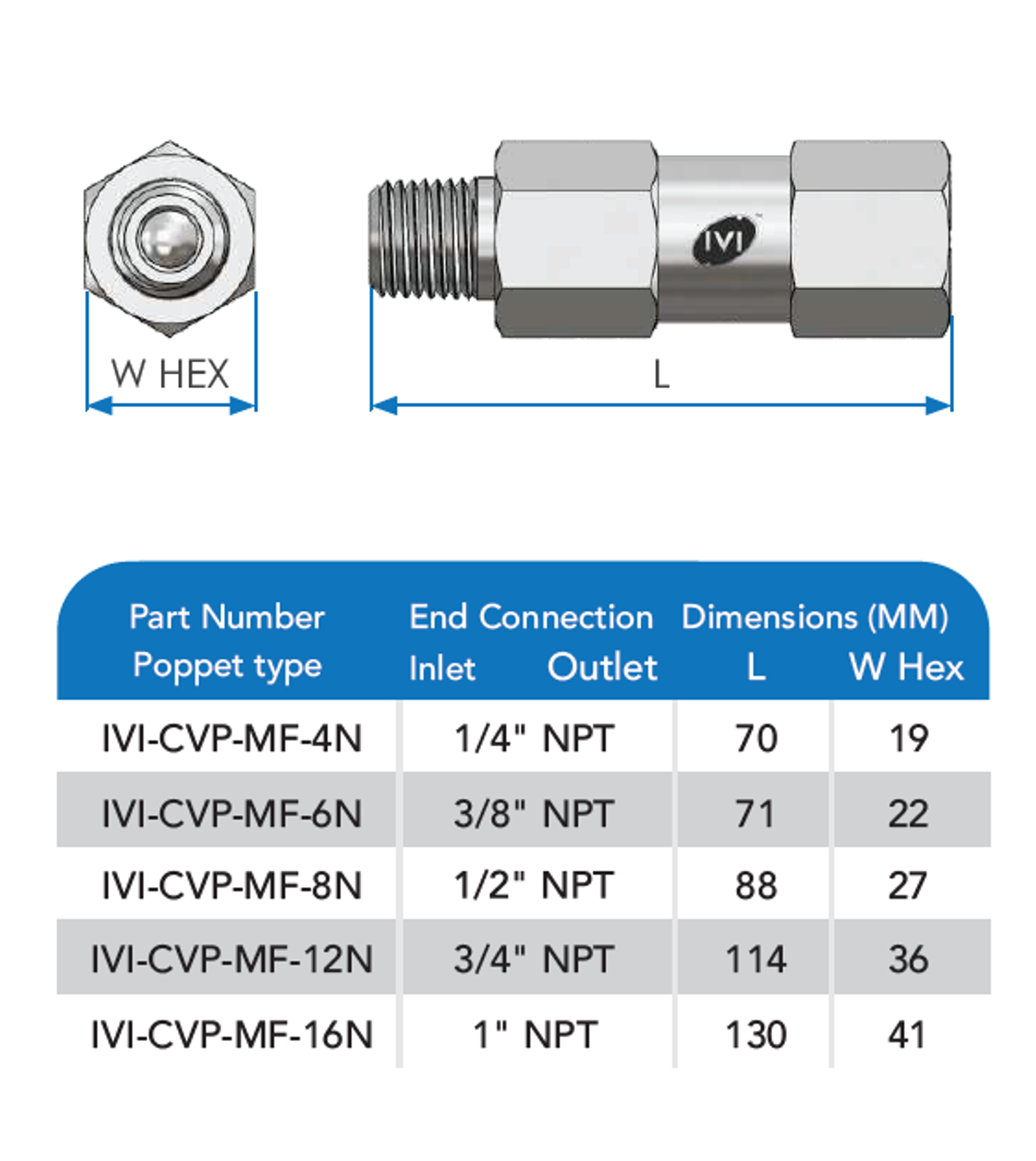

Engineering Data
