Gauge Root Valve – Female x Female – 1/4”, 1/2”, 3/4” – 6000 PSI – ASME B16.34 / ISO 9001 / PED / ATEX

Gauge Root Valve

Also known as:

Gauge Isolation Valve

Gauge Root Valve – Female x Female – 1/4”, 1/2”, 3/4” – 6000 PSI – ASME B16.34 / ISO 9001 / PED / ATEX

Gauge Root Valve

Also known as:

Gauge Isolation Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

Gauge Root Valve provides reliable isolation for pressure instruments and gauge connections, allowing safe operation and maintenance in high-pressure systems.

Executive Summary

The Gauge Root Valve is designed for controlling and isolating pressure instruments in oil, gas, and process systems. Its female x female connection allows direct connection to male-threaded instruments or piping, simplifying installation and reducing leak risks. The valve provides reliable shutoff to protect gauges and ensure accurate pressure measurement in high-pressure environments.

Technical Specifications

Connection Type Female x Female
Standard Working Pressure 6000 PSI
Maximum Working Pressure Up to 10000 PSI on request
Packing Below stem threads, easily adjustable gland retainer
Standards Compliance ASME B16.34, ASME B31.3, MSS-SP-99
Seal Type Metal-to-metal body bonnet seal
Handle Removable T-handle for low torque operation
Quality Certifications ISO 9001:2015, PED 2014/68/EU, ATEX 2014/34/EU
Temperature Rating -50°C to 230°C (500°C with graphite)
Dust Protection Stem dust cap included

Features and Benefits

  • Metal-to-metal sealing ensures leak-free operation under high pressure.
  • Long-lasting valve performance.
  • Provides reliable and precise isolation of pressure instruments.
  • Compatible with corrosion-resistant materials for harsh environments.
  • Self-centering, non-rotating stem tip for consistent shutoff.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Gauge Root Valve Female x Female connection is designed to control and isolate pressure instruments in process systems, particularly in oil and gas applications. It is rated for a standard working pressure of 6000 PSI, with the option for higher pressures upon request.

The valve is type-tested to MSS-SP-99 and designed according to ASME B16.34 for pressure-temperature ratings, ensuring reliable performance under demanding conditions.

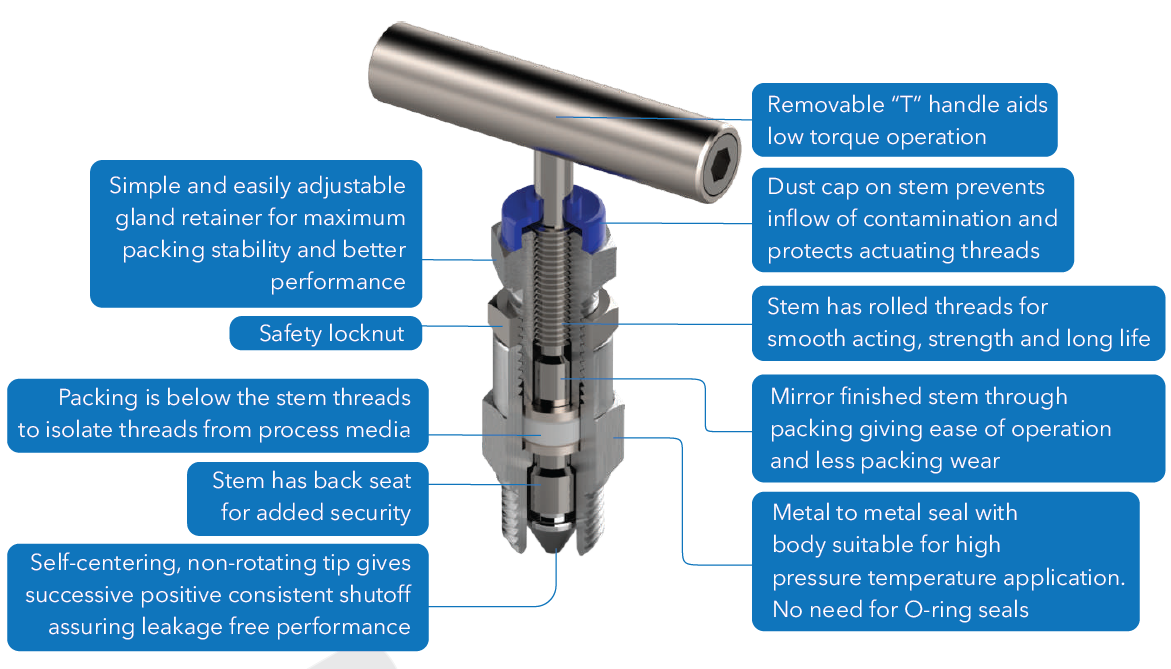

The valve features a metal-to-metal body and bonnet seal, providing high-pressure and temperature sealing without the need for O-rings. It can operate in temperatures from -50°C to 230°C, with graphite sealing available for applications up to 500°C. The stem has a backseat for added security, and a self-centering, non-rotating tip ensures consistent shutoff and leak-free performance.

The packing is located below the stem threads, isolating the threads from process media, and the gland retainer is easily adjustable for maximum packing stability. The valve includes a removable T-handle for low-torque operation and a dust cap to prevent contamination. All valves are factory-tested with nitrogen at 1000 PSI to verify seat and packing leakage, with a maximum allowable leak rate of 0.1 sec/min.

Materials can be supplied to meet NACE MR 01-75 standards, and heat code traceability is provided. Additional tests, including vibration, temperature, and helium, are available on request. This design ensures long-lasting, reliable operation while protecting connected instruments and maintaining safety in high-pressure systems.

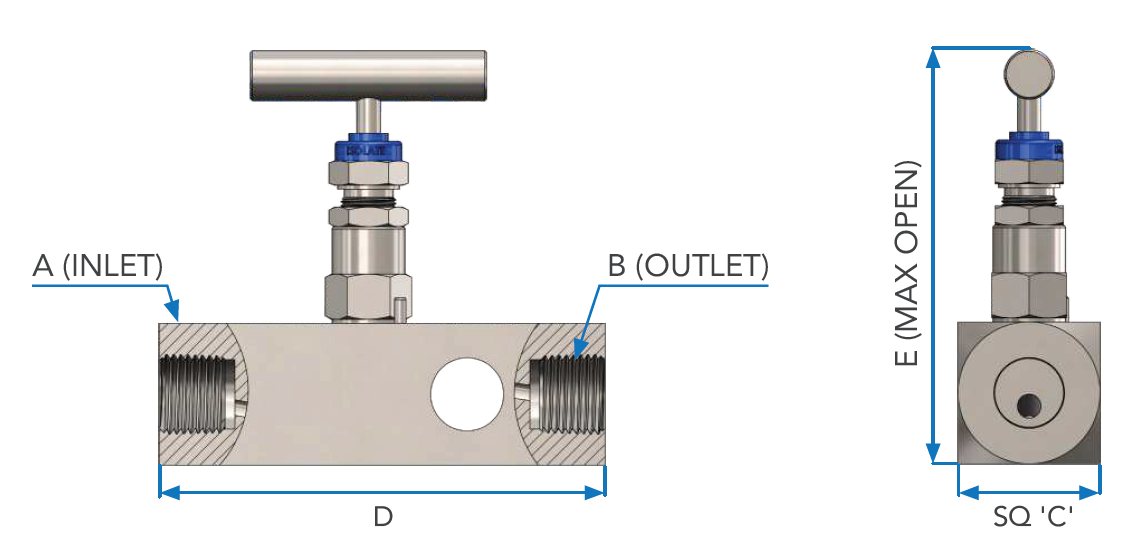

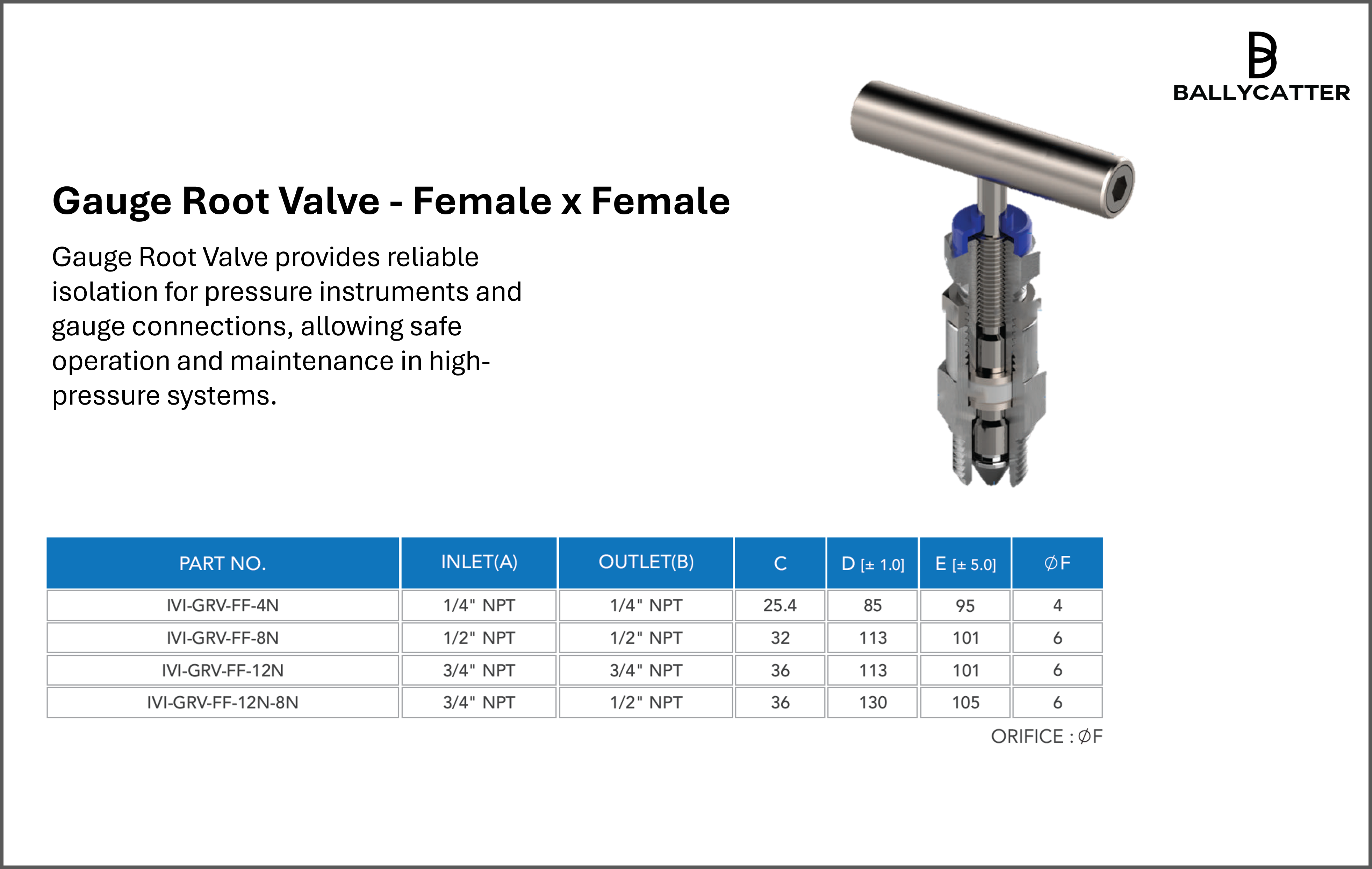

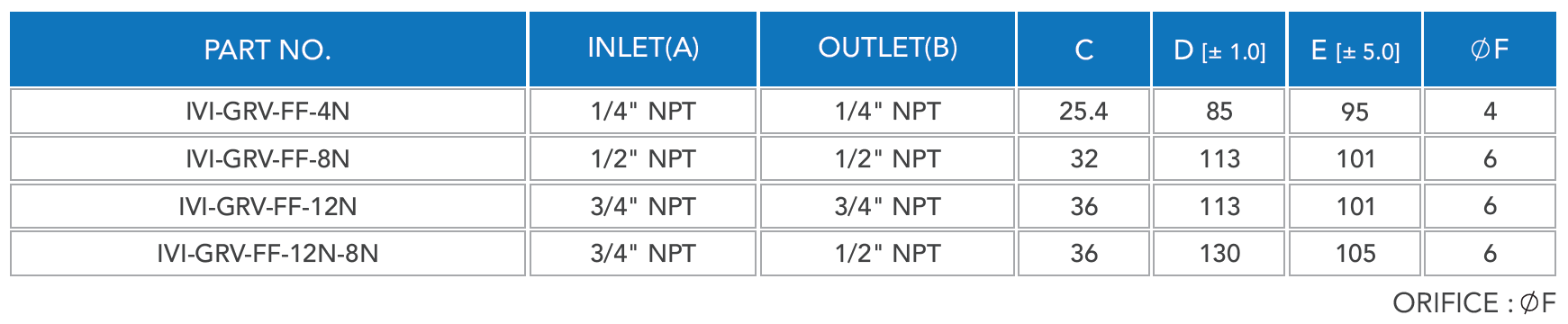

Engineering Data
