Alligator Grab Tool is a wireline fishing tool used in oil and gas wells to catch and retrieve loose or broken objects from a wellbore.

Executive Summary

The Alligator Grab is a wireline fishing tool used to catch and retrieve loose objects from within the wellbore. Its spring-loaded, serrated jaws provide a controlled grip on target debris, with adjustable jaw pressure to ensure effective engagement.

Commonly used in wireline fishing operations, the Alligator Grab is essential for safely recovering “fish” from wells without causing additional damage. Its precise design and reliable functionality make it a dependable component for well intervention and maintenance activities.

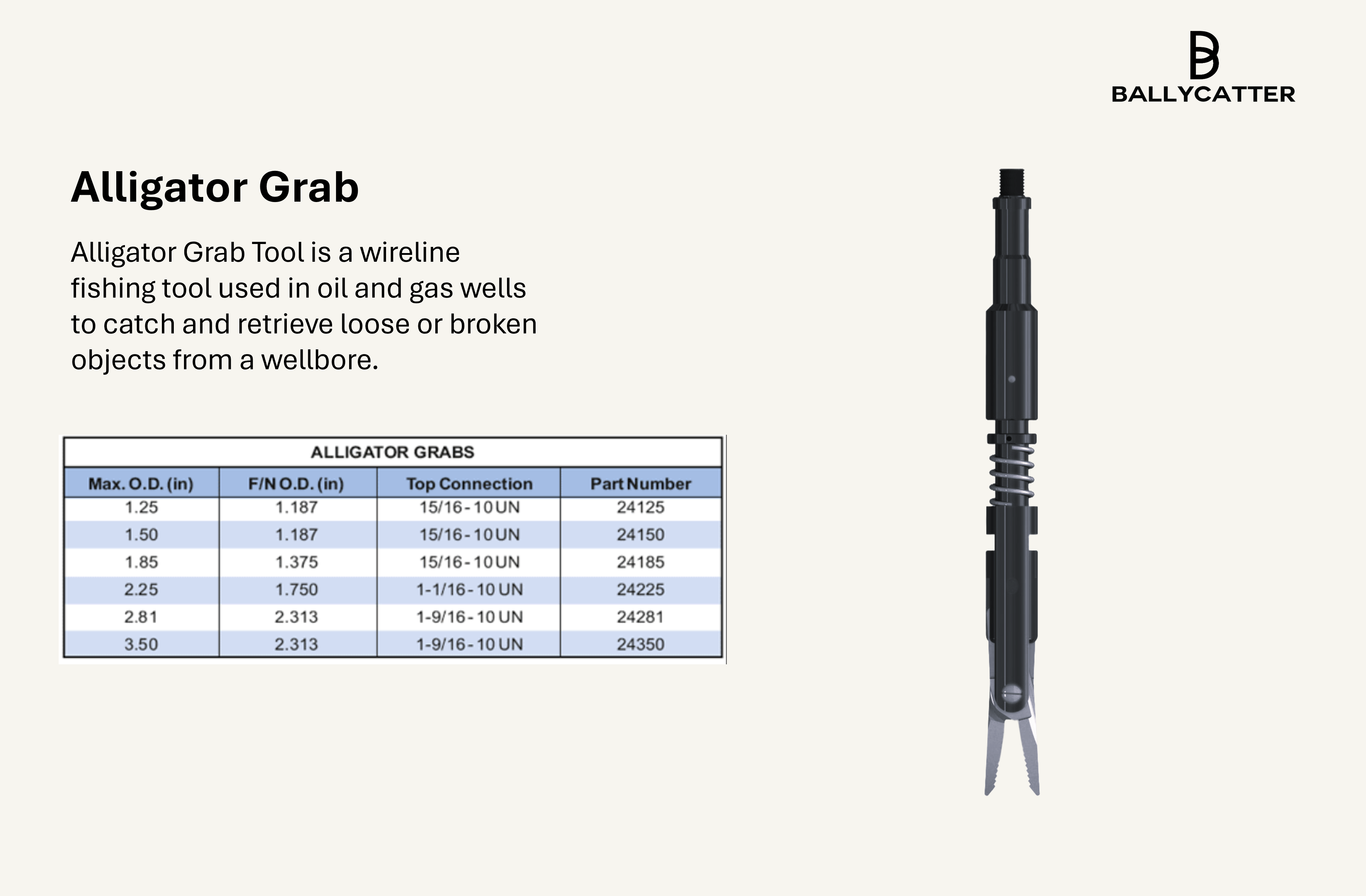

Technical Specifications

Tool Type Wireline fishing tool
Max O.D. 1.25 to 3.50 inch
Fishing Nech (F/N) O.D. 1.187 to 2313 inch
Top Connection 15/16-10 UN to 1-9/16-10 UN
Jaw Type Spring-loaded, serrated
Adjustable Jaw Pressure Adjustable before deployment
Material Steel
Pin Type Shearing pin
Certification / Standard ISO 9001:2015
Suitable Object Size Small to medium “fish” in wellbore

Features and Benefits

  • Compact design for restricted wellbore spaces.
  • Handles a wide range of loose or broken objects.
  • Easy integration with other wireline tools.
  • Standard top connections.
  • Provides a secure grip on loose or broken objects.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

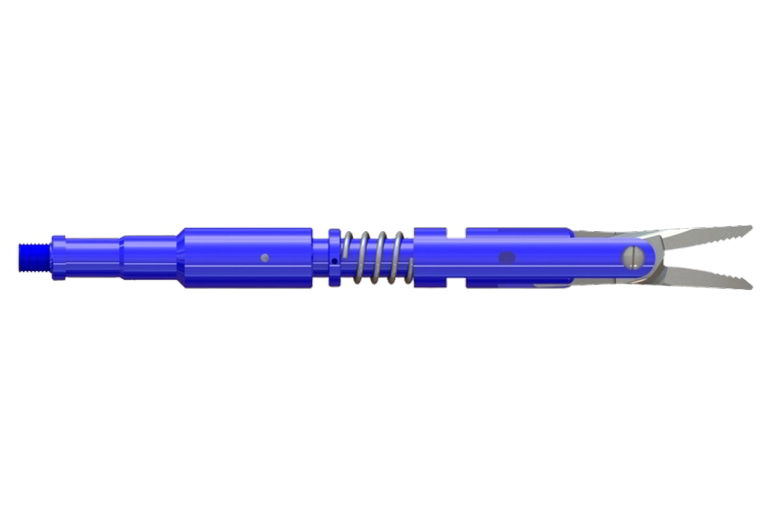

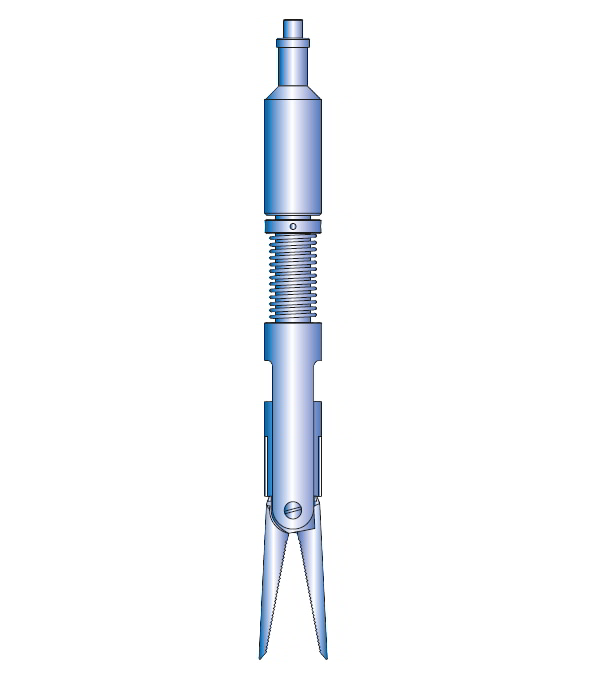

The Alligator Grab is a wireline fishing tool used to catch and retrieve loose or broken objects from inside an oil or gas wellbore. It has spring-loaded, serrated jaws that can be adjusted before use to set the right amount of grip for the object being retrieved. When downward force is applied, a pin shears, allowing the jaws to close and hold the object securely.

This tool is needed when small or hard-to-reach objects, often called “fish,” are stuck or floating in the wellbore. Unlike other retrieval tools, the Alligator Grab provides a controlled grip that can be adjusted to the size and type of object, reducing the risk of pushing it further down or damaging the well. It is not meant for heavy jarring once it has gripped an object, so it is used for careful and precise recovery.

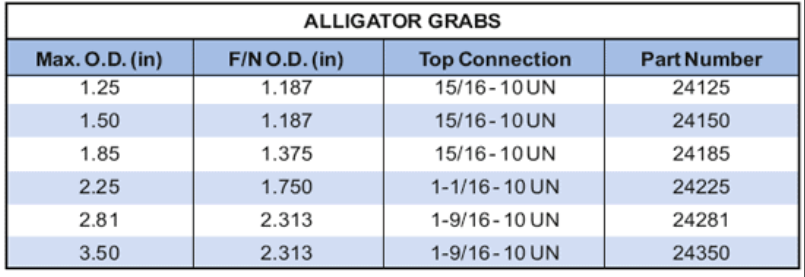

The Alligator Grab comes in various sizes, with a maximum outside diameter of 1.25 to 3.50 inches, a fishing neck O.D. of 1.187 to 2.313 inches, and top connections ranging from 15/16-10 UN to 1-9/16-10 UN. It includes fishing necks and pin threads compatible with standard wireline equipment.

What makes this type of Alligator Grab unique is its ability to retrieve objects in tight or restricted wellbore spaces. Its adjustable jaws and compact size allow it to securely grip objects that other tools might not reach, making it especially valuable for precise and reliable recovery operations.

Engineering Data
