Needle Valves Square Body Series – Male x Female – 1/4", 3/8”, 1/2”, 3/4", 1” – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Needle Valve

Also known as:

Plunger Valve

Needle Valves Square Body Series – Male x Female – 1/4", 3/8”, 1/2”, 3/4", 1” – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Needle Valve

Also known as:

Plunger Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

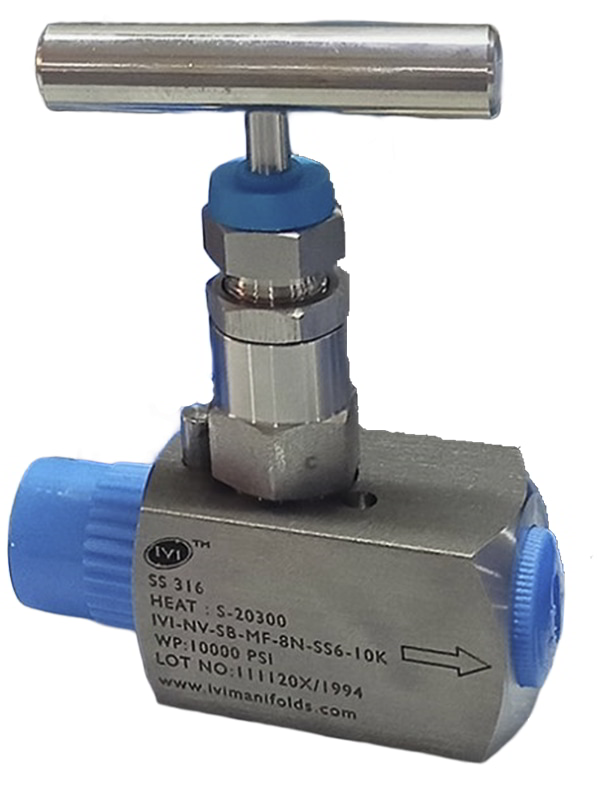

Square Body Needle Valves Male x Female offer precise flow control and easy installation with secure threaded connections for high-pressure applications.

Executive Summary

Square Body Needle Valves Male x Female are used to control and regulate fluid flow precisely in high-pressure systems. The square body design provides durability and stability, while the male and female threaded connections allow secure integration into piping systems. This type of valve is commonly used in instrumentation, process control, and oil and gas applications where accurate flow adjustment and reliable sealing are required.

Technical Specifications

Body Style Square Body Series
Connections Male x Female NPT
Body Bonnet Seal Metal to Metal
Standard ASME B16.34
Valve Ratings ASME B31.3 Process Piping Code
Type Tested MSS-SP-99
Standard Working Pressure 6000 PSI
Dust Protection Dust cap on stem
Handle Removable T-handle for low torque operation
Temperature Rating -50°C to 230°C

Features and Benefits

  • Packing located below the stem threads.
  • Metal-to-metal body and bonnet seal.
  • Square body design for stability during installation.
  • Male x Female threaded connections.
  • Easy installation and secure connection without extra fittings.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

Square Body Needle Valves Male x Female are engineered for precise flow control and isolation in high-pressure piping systems. The square body design provides a rigid, compact structure that allows for stable mounting, easy wrench access, and alignment during installation. The male and female threaded ends enable secure connections to instrumentation, piping, or process equipment, ensuring leak-tight operation.

These valves are used in oil and gas applications such as connecting impulse lines, controlling flow to pressure transmitters, and isolating instrumentation for maintenance or calibration. The square body allows for easy integration into compact manifolds or tight piping layouts where space and alignment are critical.

Constructed to meet ASME B16.34 and MSS-SP-99 standards, the valves are rated for standard working pressures of 6000 psi, with optional higher-pressure ratings available. They operate effectively over a wide temperature range and are factory-tested for seat and packing leakage, ensuring reliable, consistent performance in demanding field conditions.

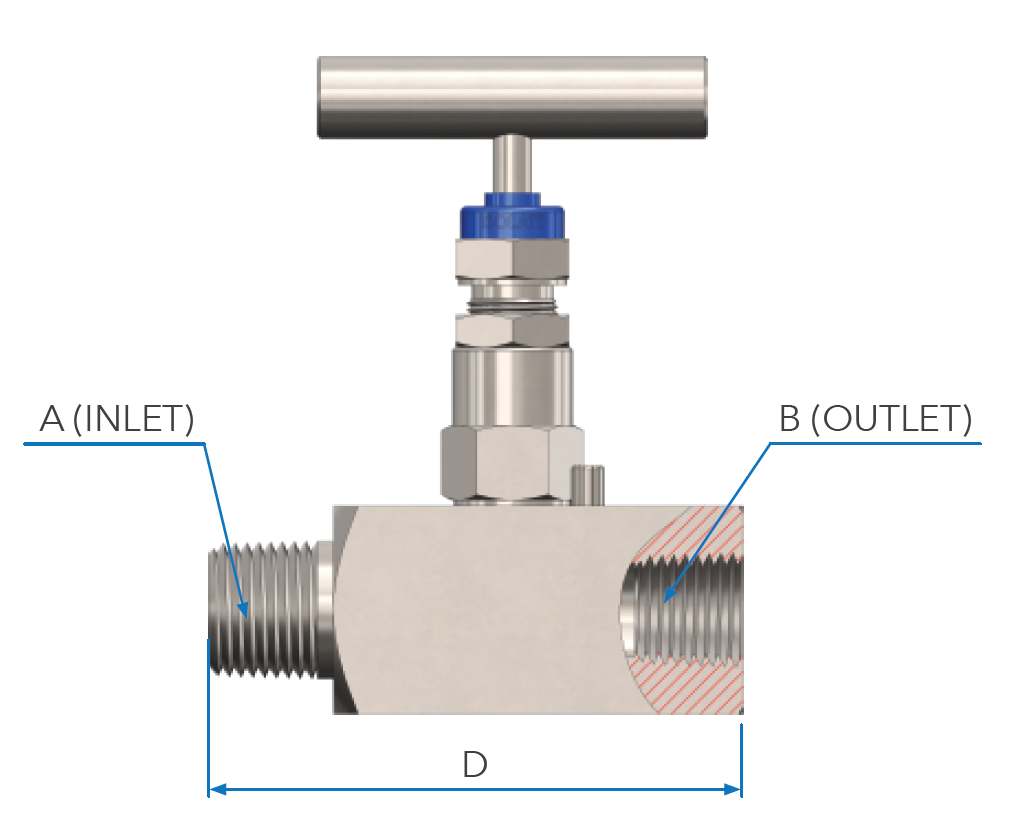

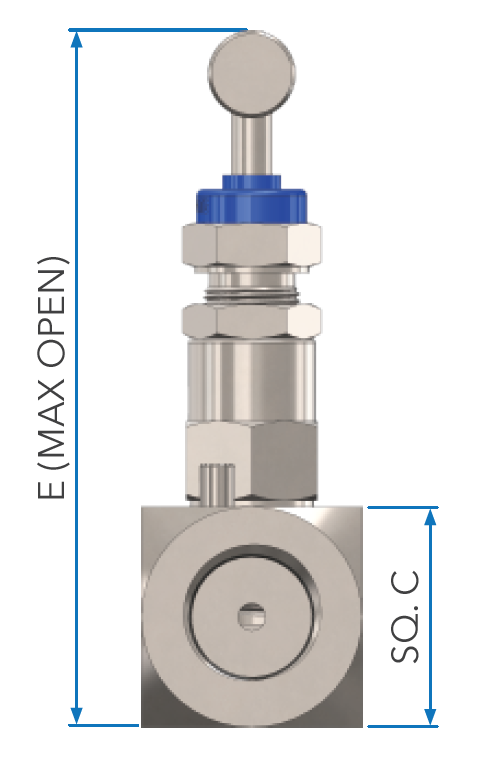

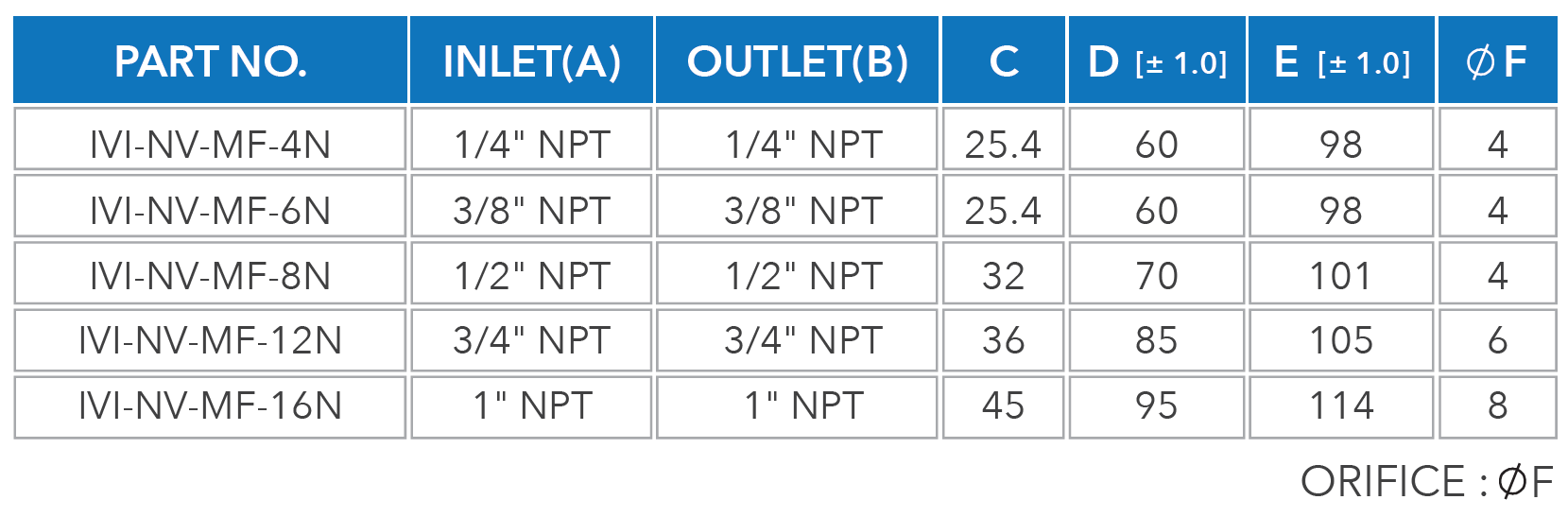

Engineering Data
