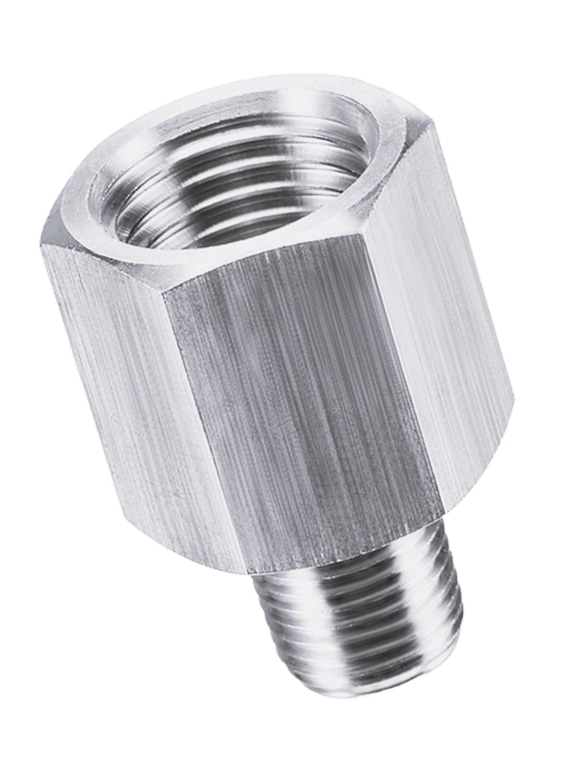

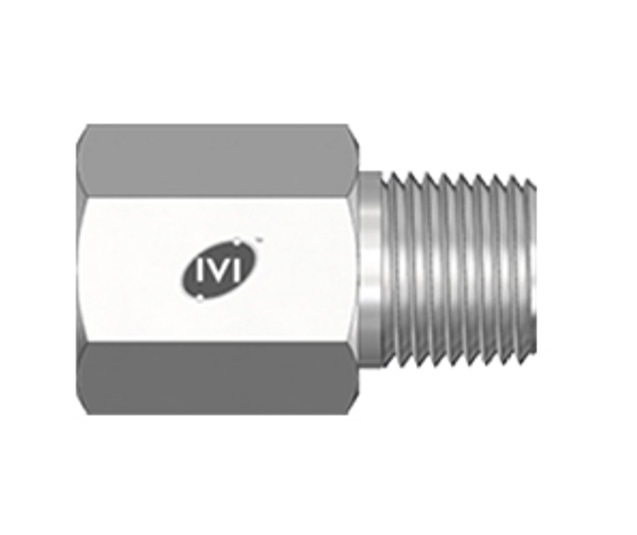

Pipe Fittings Adapters Female to Male NPT connect female and male threaded pipes, providing secure and leak-tight connections for oil and gas and industrial applications.

Executive Summary

Pipe Fittings Adapters Female to Male NPT are used to connect a female-threaded pipe or fitting to a male-threaded pipe, creating a secure and leak-resistant joint. They are commonly used in oil and gas systems, instrumentation, and process control where a reliable transition between different threaded components is needed. This type of fitting is ideal when adapting or connecting existing pipes and equipment, ensuring safe and efficient fluid or gas flow.

Technical Specifications

Size Range 1/8” to 1”
Material SS 316, Brass, Carbon Steel
Temperature Range for Ratings -28 to 37°C (-20 to 100°F)
Pressure Ratings Based on ASME B31.3 at ambient temperature
Thread Engagement Standard ASME B1.20.1 for NPT threads
Internal Surface Burr-free
Cleaning Free from machine oils, loose particles, grease
Type Instrumentation and Process Control
Thread Protection Capped and properly packed
Recommended Seal PTFE tape for male tapered threads

Features and Benefits

  • Supports safe connections in high-pressure systems.
  • Provides secure and leak-resistant connections.
  • Ensures smooth flow path and reduces risk of blockages.
  • High-pressure rating up to 10,000 PSI.
  • Connects female-threaded pipes or fittings to male-threaded pipes.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

Pipe Fittings Adapters Female to Male NPT are designed to connect a female-threaded pipe or fitting to a male-threaded pipe, providing a secure and leak-resistant joint. They are made from high-quality materials such as stainless steel, brass, and carbon steel to ensure durability and corrosion resistance in demanding environments.

The adapters are suitable for a wide range of pressures, with standard ratings up to 10,000 psi, and conform to industry standards including ASME B1.20.1, SAE AS71051, ISO 7-1, and ISO 228.

These adapters are used extensively in oil and gas applications, instrumentation, and process control systems where it is necessary to adapt different thread types or sizes. Their precise threading ensures maximum engagement and leak-tight connections, making them reliable for high-pressure or critical systems.

Available in sizes ranging from 1/8 inch to 1 inch, these adapters support efficient and safe connections in pipelines, instrumentation panels, and chemical or petrochemical systems. Their compact design allows for installation in tight spaces without compromising performance, and they are free from burrs or debris to maintain smooth flow paths.

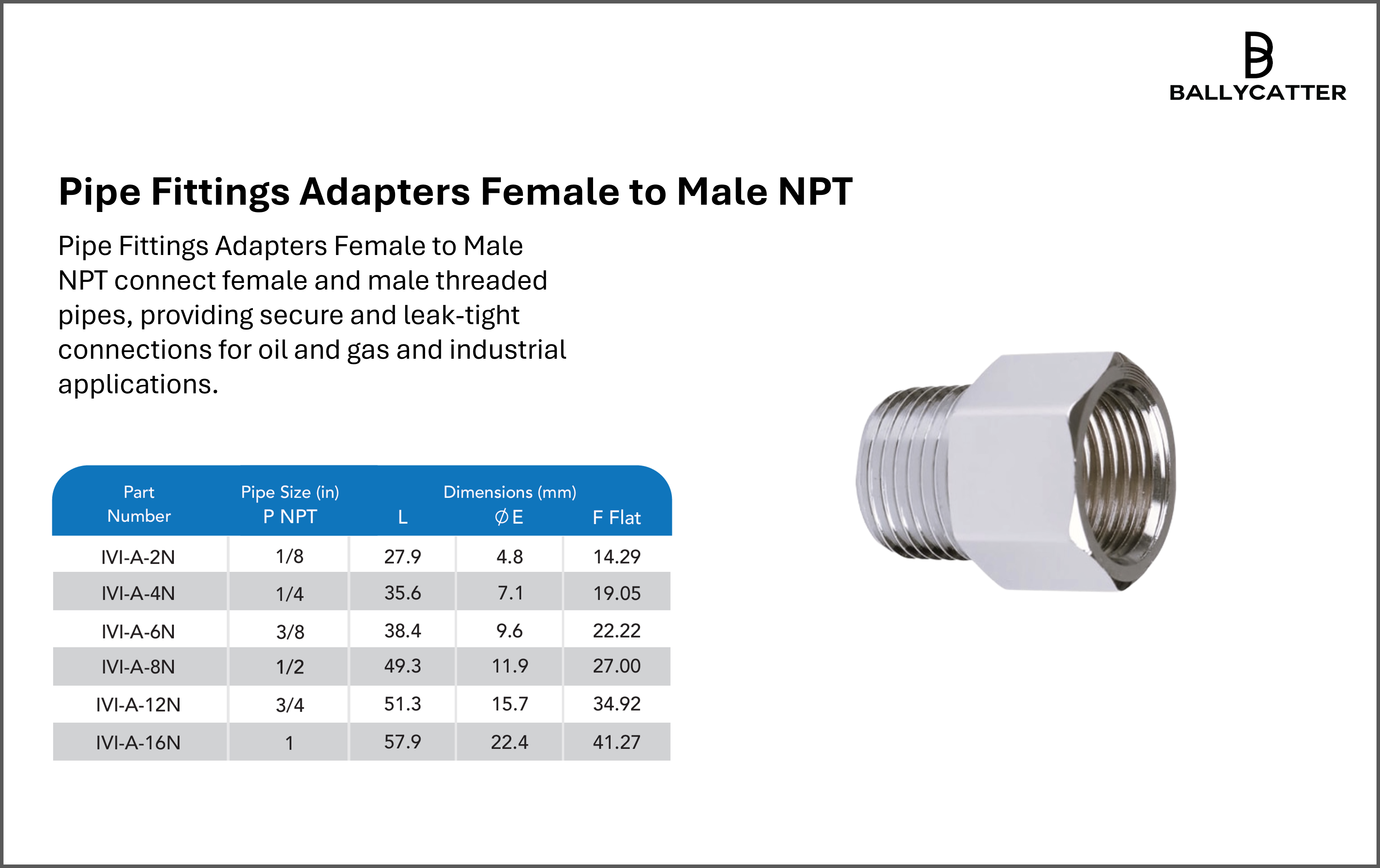

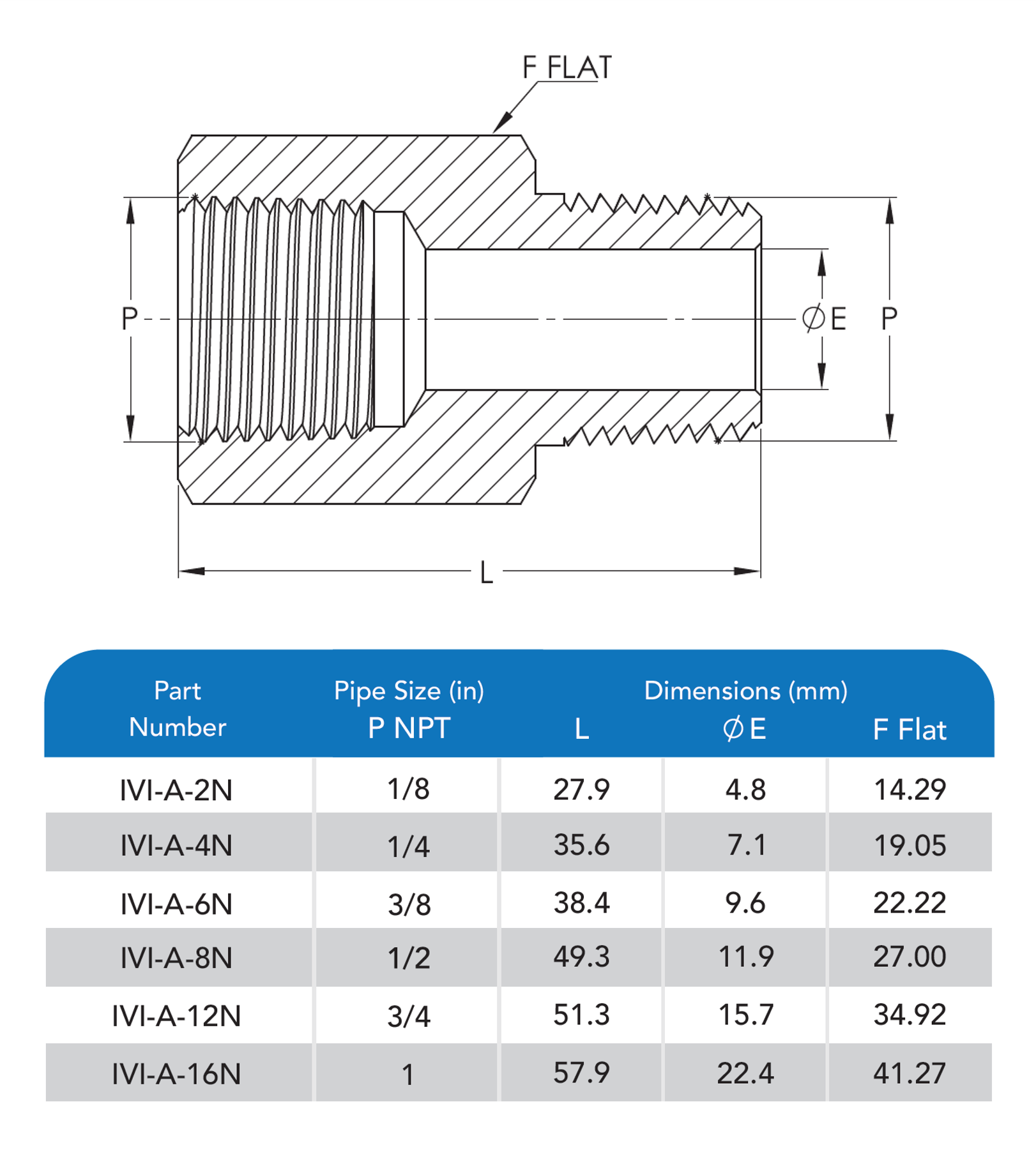

Engineering Data
