Ball Valve Lever Operated 3-Way Tube OD Side Entry is a valve used to control or divert fluid flow with direct tube connections for easy installation.Sign in
Welcome back
Sign up
Sign-up and make easy contact all providers in the industry.
Let's create your free account
Executive Summary
The Ball Valve Lever Operated – 3-Way Tube OD Side Entry is an isolation valve used to control or divert fluid flow in oil and gas piping systems. Its tube OD side entry connections allow direct attachment to tubing, simplifying installation and reducing the need for additional fittings.
The valve features a floating ball design, providing reliable, leak-proof shut-off under high-pressure conditions. Operation is simple and efficient with a quarter-turn lever, enabling fast flow control. This valve is suitable for a wide range of industrial applications where secure connections, flow diversion, and dependable performance are required.
Technical Specifications
| Connection | Tube OD |
| Standard Working Pressure | 6000 PSI |
| Maximum Working Pressure | 10000 PSI (on request) |
| Temperature Rating | –40 °F to 450 °F (–40 °C to 232 °C) |
| Design Standard | ASME B16.34 |
| Pressure-Temperature Rating | ASME B16.34 |
| Piping Code | ASME B31.3 |
| Type Test | MSS-SP-99 |
| Flow | Splits flow |
| Configuration | 3-Way |
Features and Benefits
- Temperature rating –40 °F to 450 °F.
- Standard working pressure 6000 PSI.
- Easy and quick operation with low torque.
- Maintains sealing performance over long service life.
- Minimizes pressure drop across the valve.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description

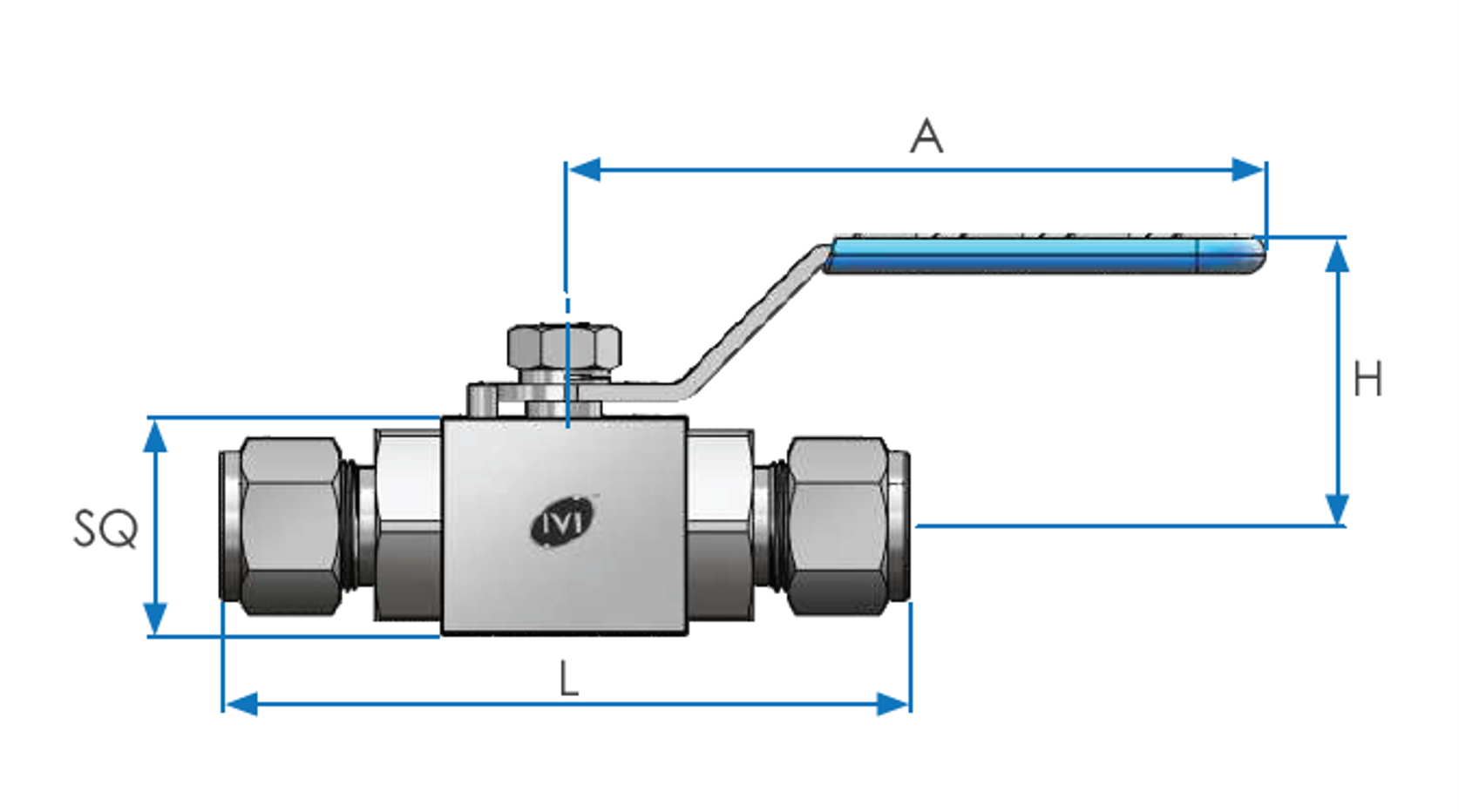

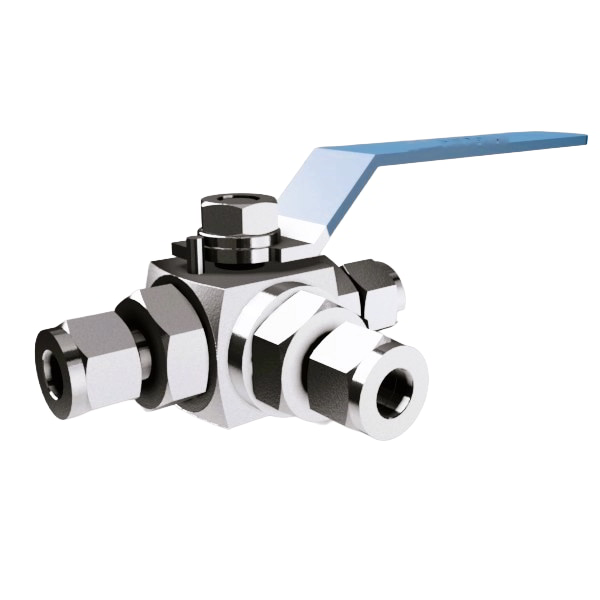

The Ball Valve Lever Operated 3-Way Tube OD Side Entry is a high-performance valve designed to control or divert fluid flow in oil and gas piping systems. Its 3-way configuration allows fluid to be routed between multiple tubing lines, making it useful for applications such as flow diversion, sampling, injection systems, or process line bypasses.
The side entry design provides easier access to the ball and internal components for maintenance or inspection, while also allowing compact installation in tight piping layouts. The tube OD connections enable direct attachment to tubing without additional fittings, simplifying assembly, reducing potential leak points, and providing secure, inline connections.
The valve uses a floating ball design to ensure consistent, leak-proof shut-off under high-pressure conditions. Operation is simple and reliable with a quarter-turn lever, providing fast control with low torque. The internally loaded stem with shoulder prevents blowout, and replaceable seats and packings allow maintenance without replacing the entire valve.
