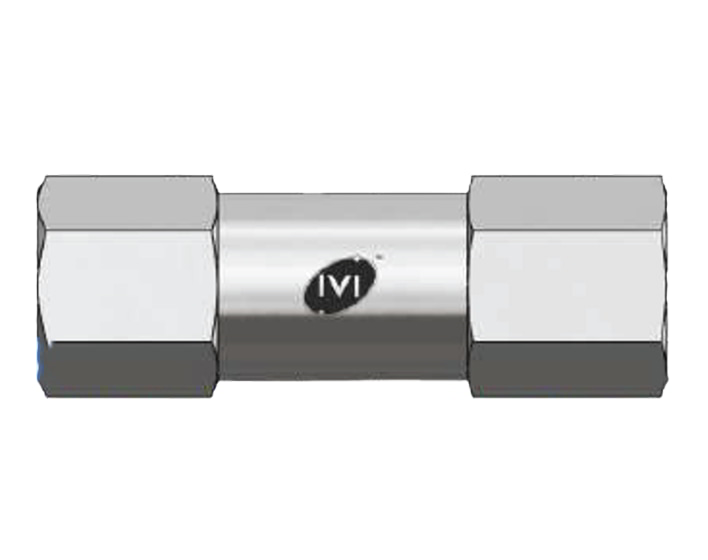

Check Valve Poppet Type – Female x Female 1/4" NPT – 6000 PSI – ISO 9001

Check Valve

Also known as:

Non-return Valve, One-way Valve, Reflux Valve, Retention Valve

Check Valve Poppet Type – Female x Female 1/4" NPT – 6000 PSI – ISO 9001

Check Valve

Also known as:

Non-return Valve, One-way Valve, Reflux Valve, Retention Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

The 1/4" poppet type check valve prevents backflow in oil and gas systems and is suitable for small diameter lines with female × female connections.

Executive Summary

The 1/4" poppet type check valve with female × female NPT connections is a uni-directional flow valve used to prevent backflow in oil and gas systems. It is suitable for small diameter lines, instrumentation, and control applications, providing secure inline installation and reliable operation.

All valves are factory tested for cracking and reseal performance and come with heat code traceability. They meet industry standards for high-pressure operation and can be supplied in corrosion-resistant.

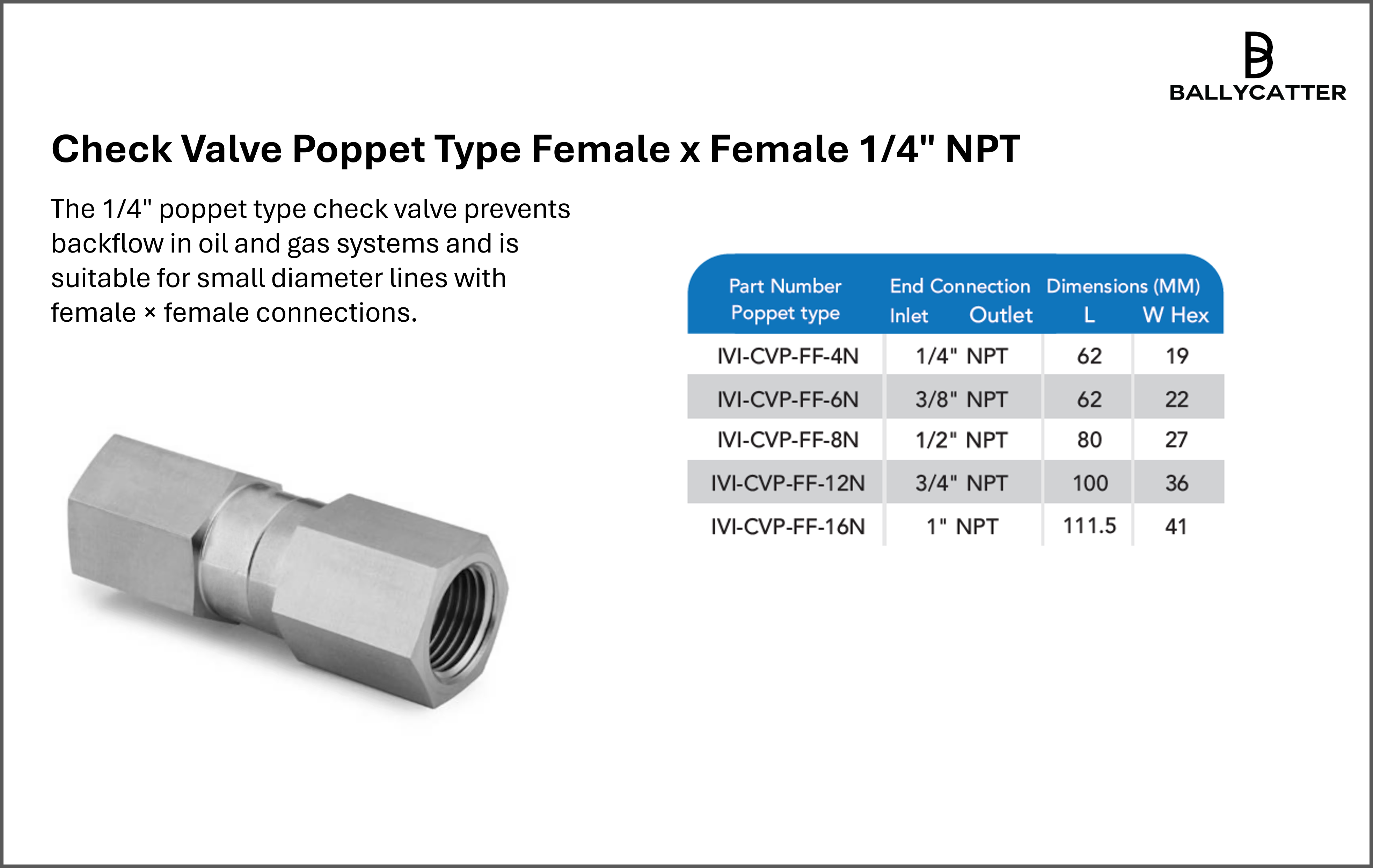

Technical Specifications

End Connection Female x Female NPT
Size 1/4"
Flow Direction Uni-directional
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Cracking Pressure 1/3 to 25 PSI
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Materials SS 316, Brass, Monel 400
Installation Inline or panel-mounted integration possible
Valve Type Poppet Check Valve

Features and Benefits

  • Easy integration into existing piping with reduced leak points.
  • Factory tested for cracking and reseal performance.
  • Uni-directional flow to prevent backflow.
  • Heat code traceability for material verification.
  • Poppet type mechanism for fast response and reliable sealing.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

In oil and gas systems, controlling the direction of fluid flow is critical to protect pipelines, pumps, and equipment. The 1/4" poppet type check valve with female × female NPT connections provides reliable uni-directional flow, preventing backflow and maintaining system integrity. Its compact size makes it ideal for small diameter lines, instrumentation, sampling, and control applications, while the female × female connections allow secure inline installation without additional fittings.

The valve has a standard working pressure of 6000 PSI, with optional configurations rated up to 10000 PSI. Selectable cracking pressures from 1/3 to 25 PSI allow precise adaptation to system requirements. It is available in corrosion-resistant materials including SS 316, SS 316L, Duplex, Super Duplex, Hastelloy C276, Inconel 625, Monel 400, and Brass, ensuring durability in demanding oil and gas environments.

All valves are factory tested for cracking and reseal performance, with pneumatic testing at 1000 psig to verify seat integrity. Heat code traceability guarantees quality and material verification, and additional testing, including vibration, temperature, and helium, is available for applications requiring maximum reliability.

Engineering Data
