Integral Bonnet Tube OD needle valves offer leak-free, precise flow control for tube connections in oil and gas.

Executive Summary

Integral Bonnet Tube OD needle valves are engineered to provide reliable, leak-free connections in tubing systems, with the bonnet integrated into the valve body for added strength and safety. The male-to-female Tube OD design allows secure connection to tubing while ensuring precise control of fluid flow. These valves are commonly used in oil and gas applications for instrumentation, pressure measurement, and process control, particularly in high-pressure systems where consistent, maintenance-free performance is essential.

Technical Specifications

Body Style Integral Bonnet Series
Connections Tube OD
Body Bonnet Seal Metal to Metal
Standard ASME B16.34
Valve Ratings ASME B31.3 Process Piping Code
Type Tested MSS-SP-99
Standard Working Pressure 6000 PSI
Dust Protection Dust cap on stem
Handle Removable T-handle for low torque operation
Temperature Rating -50°C to 230°C

Features and Benefits

  • Removable T Handle aids proper actuation.
  • Low torque operation.
  • Fully supported packing reduces need for adjustment.
  • Rolled stem threads for smooth acting, strength and long life.
  • One-piece construction no welding used – For high strength and safety.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

Integral Bonnet Tube OD needle valves feature a one-piece construction where the bonnet is integrated with the valve body, eliminating welded joints and providing enhanced strength and safety. This design ensures durability and reliable performance in high-pressure applications, minimizing the risk of leaks or failures.

The Tube OD connections allow secure attachment to tubing while providing precise flow control, making these valves ideal for instrumentation lines, pressure measurement, and process control systems. The design supports consistent, repeatable shut-off and smooth operation, even under demanding conditions.

These valves are particularly suitable for oil and gas applications where high-pressure resistance, leak-free performance, and ease of maintenance are critical. Additional features such as rolled stem threads and mirror-finished stems reduce wear, lower operating torque, and extend service life, ensuring dependable operation in both standard and critical environments.

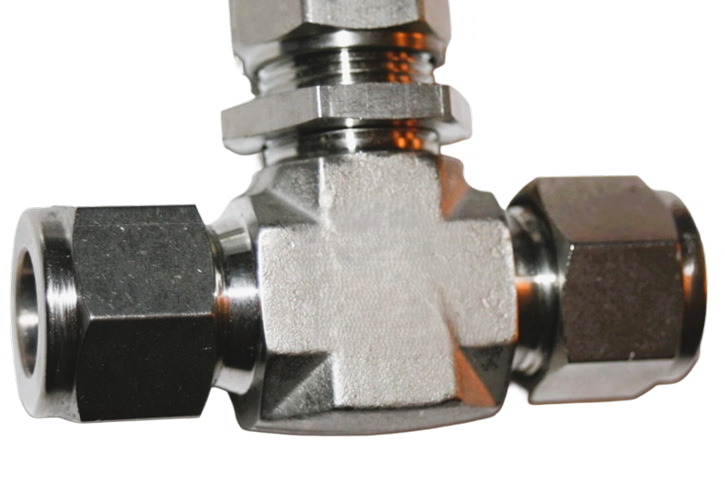

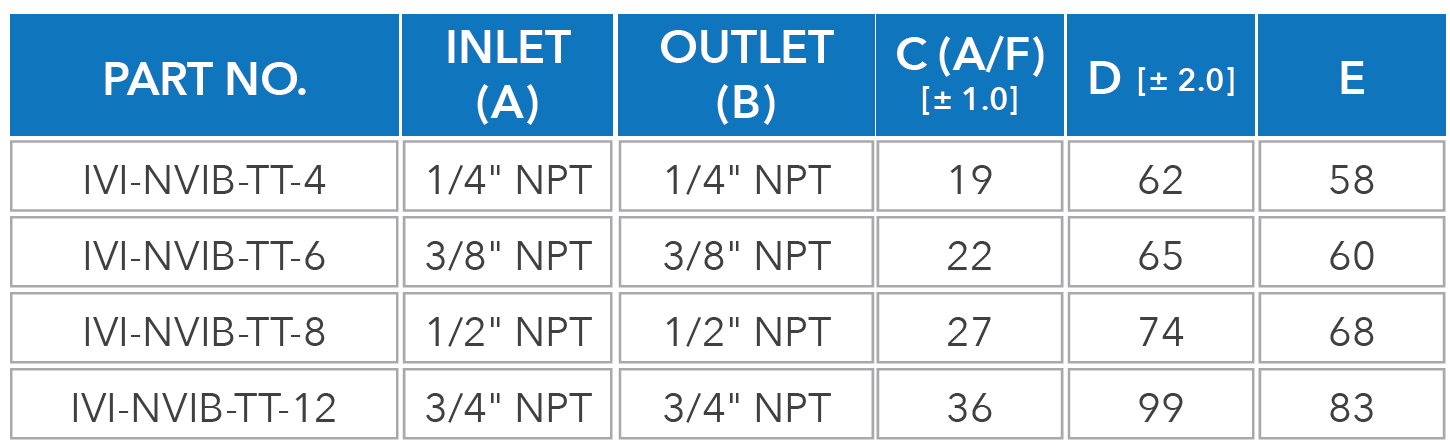

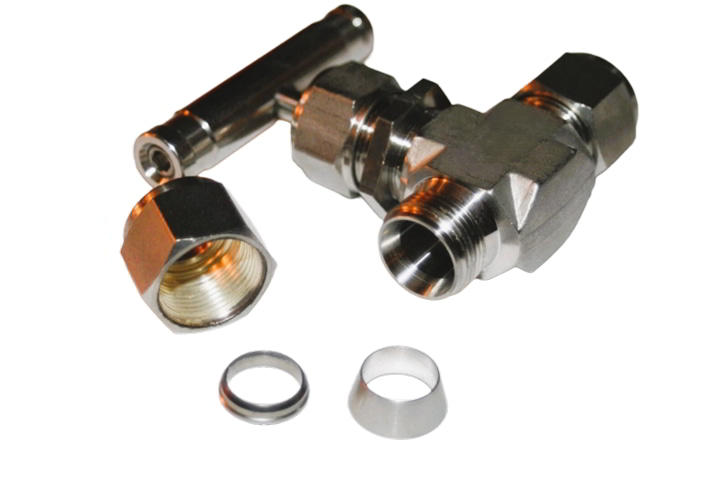

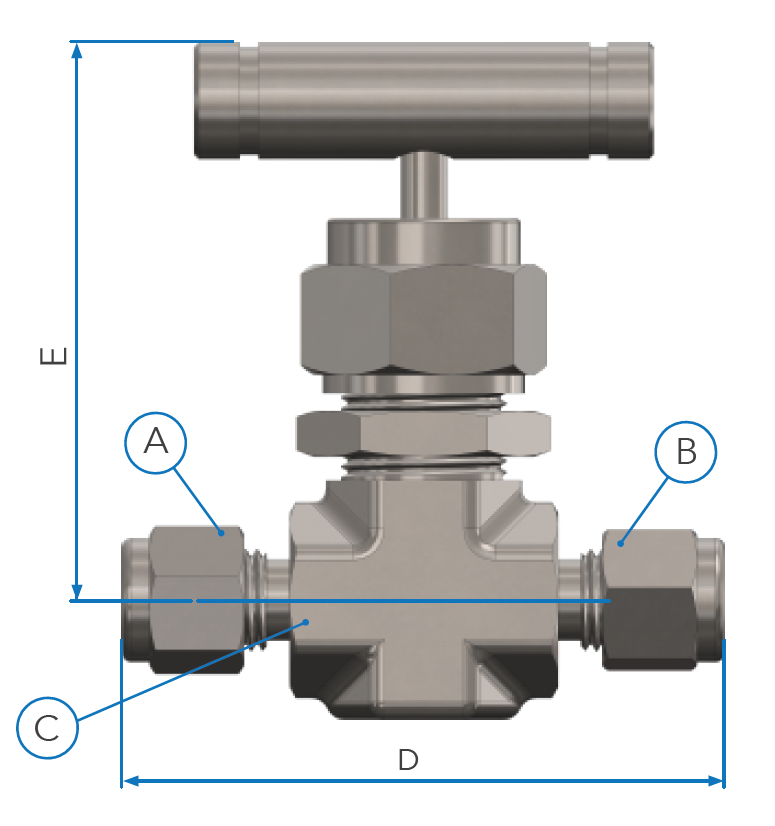

Engineering Data
