Tube Fittings Male Connector ISO Tapered Thread – 1/8”, 5/16”, 3/8”, 1/2”, 3/8”, 1/2" – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Tube Fitting

Also known as:

Compression Fitting, Flare Fitting, Instrumentation Fitting

Tube Fittings Male Connector ISO Tapered Thread – 1/8”, 5/16”, 3/8”, 1/2”, 3/8”, 1/2" – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Tube Fitting

Also known as:

Compression Fitting, Flare Fitting, Instrumentation Fitting

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

Tube Fittings Male Connector ISO Tapered Thread: High-pressure connector for secure tube-to-pipe connections in instrumentation and process systems.

Executive Summary

Tube Fittings Male Connectors provide safe, leak-tight connections for high-pressure tubing systems in the oil and gas industry. Designed to withstand pressures up to 6000 PSI and manufactured to international standards, they are essential for ensuring reliability in exploration, production, and processing operations where safety and performance cannot be compromised.

Technical Specifications

Size Ranges 1/8” to 1/2”
Sealing Leak-free under vibration, vacuum, impulse
Assembly Finger-tight, ready to use
Back Ferrule Case-hardened for strength
Appearance High-quality finish
Certifications ASME B1.20.1, SAE AS71051
Material SS, Alloy, Carbon Steel, Brass, Nylon
Pressure Rating Up to 10,000 PSI
Tubing Hardness Softer than fitting material
Installation Tube bottoms on shoulder

Features and Benefits

  • Straight fittings from bar stock, shaped from forgings.
  • Ready for immediate use, finger-tight installation.
  • Reduces maintenance needs and risk of thread damage.
  • Durable and long-lasting connections.
  • Silver-plated female threads to prevent galling.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

Tube Fittings Male Connectors are precision parts used to connect tubing directly to a threaded port in oil and gas systems. One side of the connector is designed for tubing, while the other side has an ISO tapered male thread that screws into valves, manifolds, pumps, or other equipment.

These connectors are made for high-pressure applications, with working pressure ratings up to 6000 PSI. The tapered thread design creates a tight, reliable seal that prevents leaks of gas or liquid, even under vibration, temperature changes, or fluctuating pressures.

They are commonly used in drilling rigs, wellhead equipment, hydraulic control lines, instrumentation systems, and process piping. Available sizes include 1/8”, 5/16”, 3/8”, and 1/2”, making them suitable for a wide range of tubing diameters.

By ensuring a strong, leak-free connection, Tube Fittings Male Connectors improve safety, reduce downtime, and support efficient operation in demanding oil and gas environments.

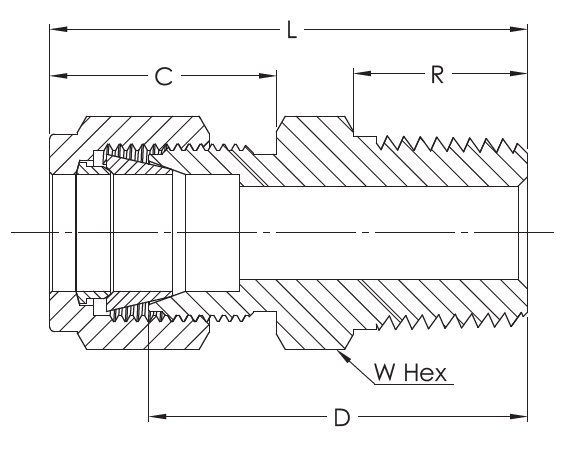

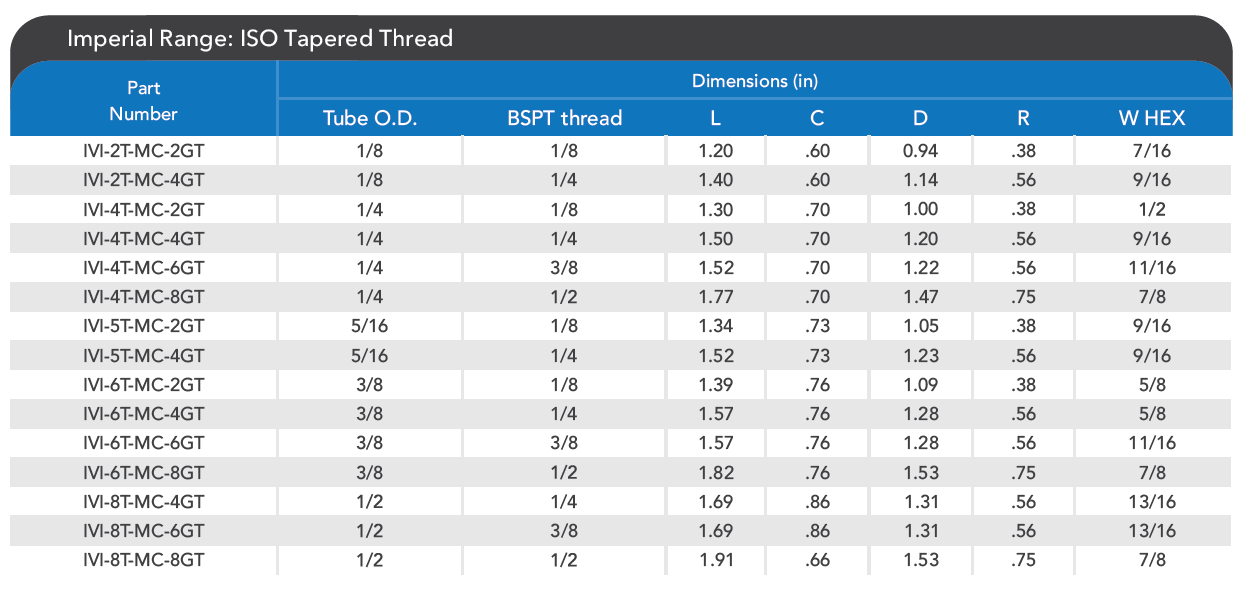

Engineering Data
