Tube Fittings Male Connector ISO Parallel Thread – 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1" – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Tube Fitting

Also known as:

Compression Fitting, Flare Fitting, Instrumentation Fitting

Tube Fittings Male Connector ISO Parallel Thread – 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1" – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Tube Fitting

Also known as:

Compression Fitting, Flare Fitting, Instrumentation Fitting

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

Tube Fittings Male Connector ISO Parallel Thread connects tubing to parallel-threaded ports, providing leak-resistant high-pressure connections for oil and gas systems.

Executive Summary

The Tube Fittings Male Connector with ISO Parallel Thread provides a secure and leak-resistant connection between tubing and parallel-threaded ports. Designed for high-pressure applications up to 6000 PSI, it ensures reliable fluid control in oil and gas systems. Its robust construction, ease of installation make it ideal for both operational and maintenance efficiency. This fitting is suitable for pipelines, instrumentation, and process connections.

Technical Specifications

Size Ranges 1/8” to 1”
Sealing Leak-free under vibration, vacuum, impulse
Assembly Finger-tight, ready to use
Back Ferrule Case-hardened for strength
Appearance High-quality finish
Certifications ASME B1.20.1, SAE AS71051
Material SS, Alloy, Carbon Steel, Brass, Nylon
Pressure Rating Up to 10,000 PSI
Tubing Hardness Softer than fitting material
Installation Tube bottoms on shoulder

Features and Benefits

  • Straight fittings from bar stock, shaped from forgings.
  • Ready for immediate use, finger-tight installation.
  • Reduces maintenance needs and risk of thread damage.
  • Durable and long-lasting connections.
  • Silver-plated female threads to prevent galling.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Tube Fittings Male Connector with ISO Parallel Thread is designed to join tubing to parallel-threaded ports in high-pressure systems. This fitting ensures a tight, leak-resistant seal that maintains system integrity under pressures up to 6000 PSI, making it suitable for demanding oil and gas applications.

Constructed from high-quality materials, the fitting is manufactured to precise tolerances to ensure proper ferrule deformation and consistent performance. The parallel thread design allows for a straightforward installation and secure connection without excessive torque, reducing the risk of thread damage or galling.

These fittings are used extensively in pipelines, instrumentation, and process systems where a reliable and durable connection is required. The male connector configuration allows it to mate with female threaded components, providing versatility in system design. The robust design also ensures excellent performance under vibration, temperature changes, and fluctuating pressures.

Overall, this fitting combines technical reliability with ease of use, making it suitable for both engineering and operational personnel who require dependable tubing connections in oil and gas environments.

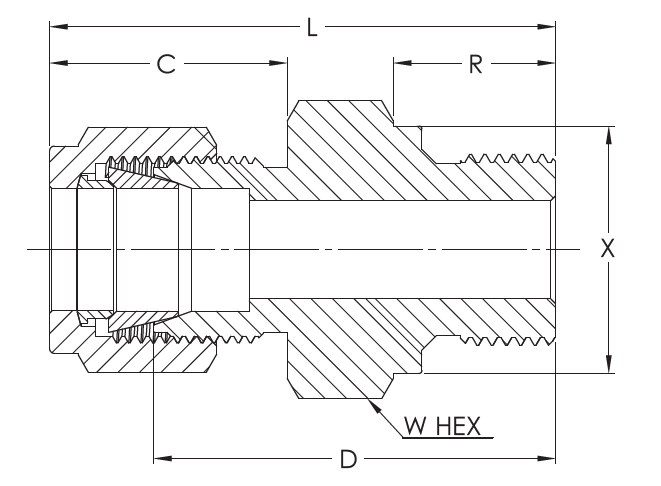

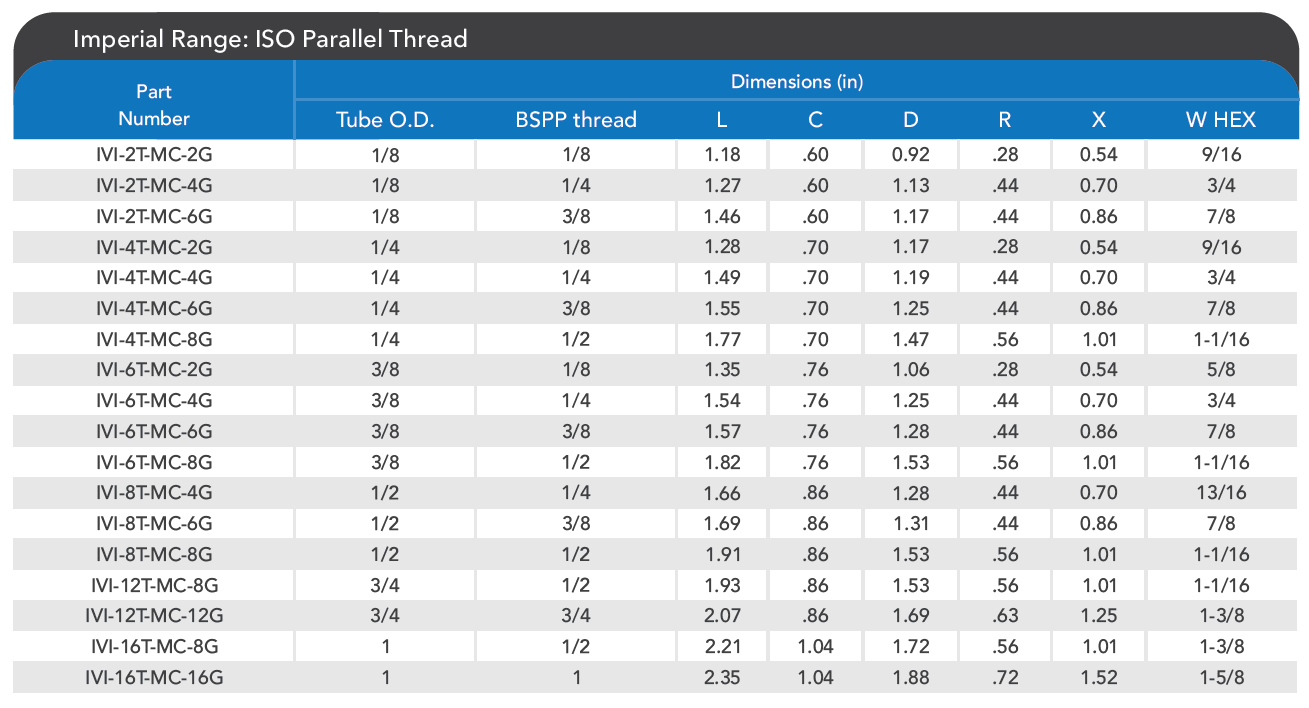

Engineering Data
