The L type 2 valve manifold connects impulse lines and transmitters, allowing easy block, bleed, and calibration with reliable high-pressure sealing.Sign in
Welcome back
Sign up
Sign-up and make easy contact all providers in the industry.
Let's create your free account
Executive Summary
The L type 2 valve manifold is a compact, reliable solution for connecting impulse lines to pressure transmitters or gauges in the oil and gas industry. It allows operators to block, bleed, and calibrate instrumentation safely and efficiently. Designed for high-pressure applications up to 6000 psi standard and higher on request, it features metal-to-metal sealing, durable stems, and low-torque operation for consistent, leak-free performance.
Technical Specifications

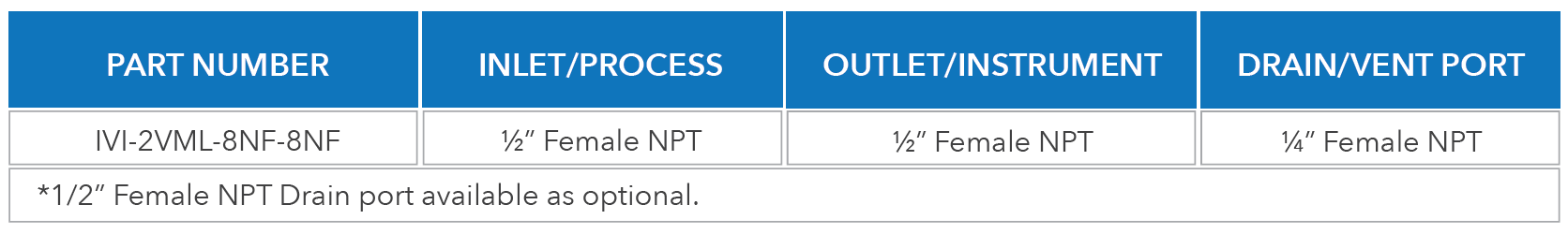

| Inlet/Process | 1/2” Female NPT |
| Outlet/Instrument | 1/2” Female NPT |
| Drain/Vent Port | 1/4” Female NPT |
| Type | L type 2 valve manifold |
| Standard Working Pressure | 6000 PSI |
| Pressure-Temperature Ratings | ASME B16.34 |
| Process Piping Code | ASME B31.3 |
| Temperature Rating | -50°C to 230°C |
| Body-Bonnet Seal | Metal-to-metal |
| Type Tested | MSS-SP-99 |
Features and Benefits
- Self-centering, non-rotating tip ensures consistent shutoff.
- Removable T-handle for easy low-torque operation.
- Back seat adds extra security during maintenance.
- Standard pressure 6000 PSI.
- Pipe-to-pipe connections simplify integration with impulse lines.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description
The L type 2 valve manifold is a compact and reliable solution designed for connecting impulse lines to pressure transmitters or gauges in industrial systems. Its primary purpose is to allow safe and efficient measurement of process pressures while providing the ability to isolate, vent, or calibrate instruments without disrupting the process.
The L type configuration refers to the layout of the two valves, arranged in an L shape, which allows for simple and intuitive operation. This design enables the user to block the process pressure, bleed off trapped pressure, and perform calibration on static pressure transmitters or gauges. The arrangement minimizes installation space while ensuring clear and accessible operation.
Pipe to pipe manifolds are designed to connect directly to process lines using standard piping connections. This allows for straightforward integration with impulse lines and reduces the need for additional fittings. The manifold provides a secure and leak-free connection while maintaining easy access for maintenance, calibration, and testing of instruments. Overall, the L type 2 valve manifold combines compact design, operational simplicity, and high reliability for critical measurement applications.

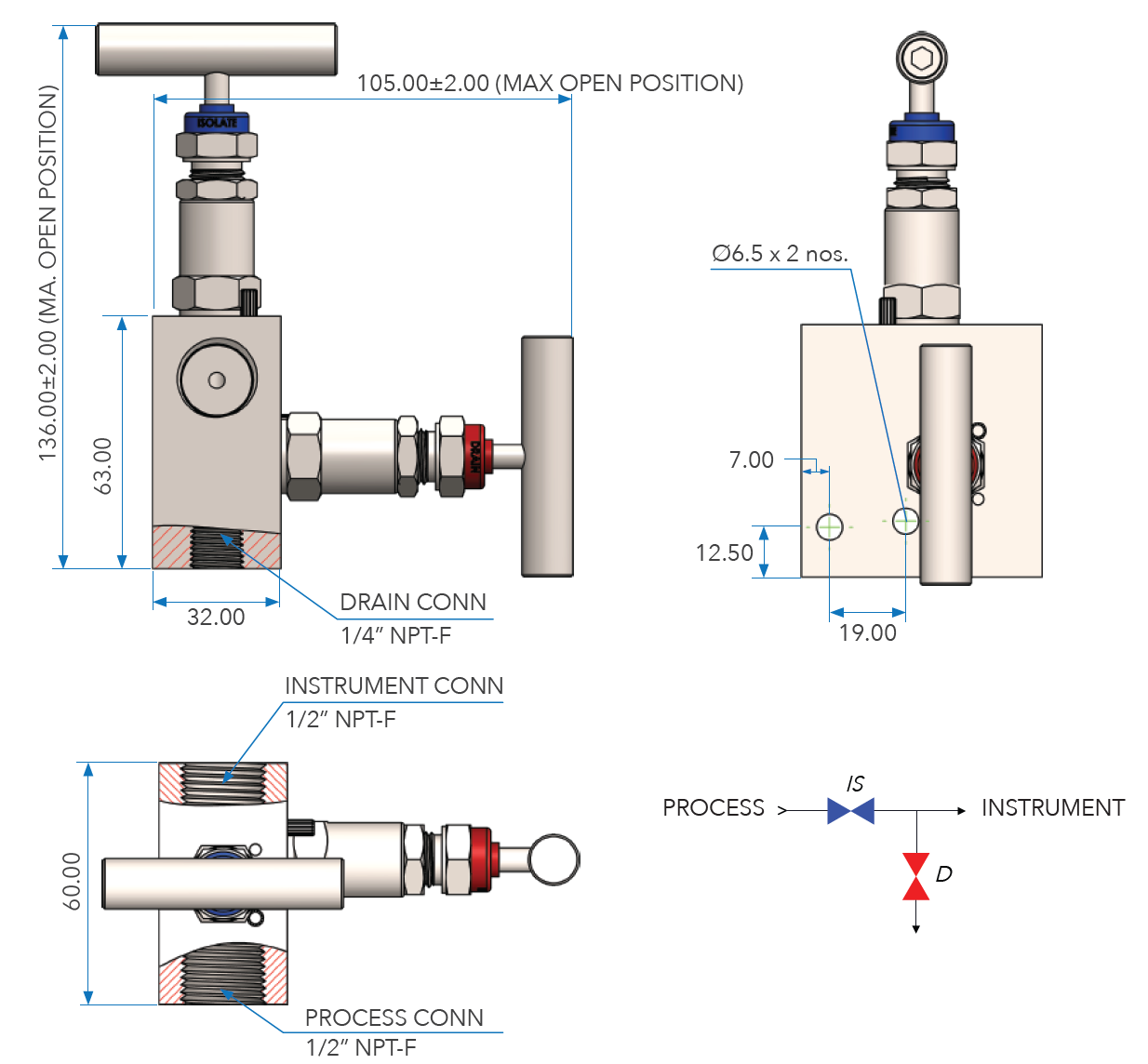

Engineering Data
