Tube Fittings Male Elbow NPT provide a 90° connection between tubing and threaded components in high-pressure oil, gas, and process systems, rated up to 6000 PSI.

Executive Summary

The Tube Fittings Male Elbow NPT is a high-pressure fitting that connects tubing to threaded components at a 90° angle. It is widely used in oil, gas, and industrial systems for secure and leak-free performance under pressures up to 6000 PSI. Available in multiple sizes, it provides a reliable solution for fluid and gas transfer in demanding applications.

Technical Specifications

Size Ranges 1/4” to 1”
Sealing Leak-free under vibration, vacuum, impulse
Assembly Finger-tight, ready to use
Back Ferrule Case-hardened for strength
Appearance High-quality finish
Certifications ASME B1.20.1, SAE AS71051
Material SS, Alloy, Carbon Steel, Brass, Nylon
Pressure Rating Up to 10,000 PSI
Tubing Hardness Softer than fitting material
Installation Tube bottoms on shoulder

Features and Benefits

  • Straight fittings from bar stock, shaped from forgings.
  • Ready for immediate use, finger-tight installation.
  • Reduces maintenance needs and risk of thread damage.
  • Durable and long-lasting connections.
  • Silver-plated female threads to prevent galling.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

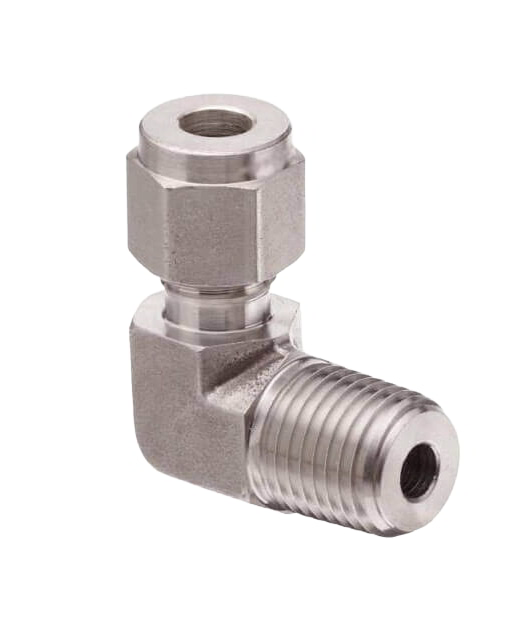

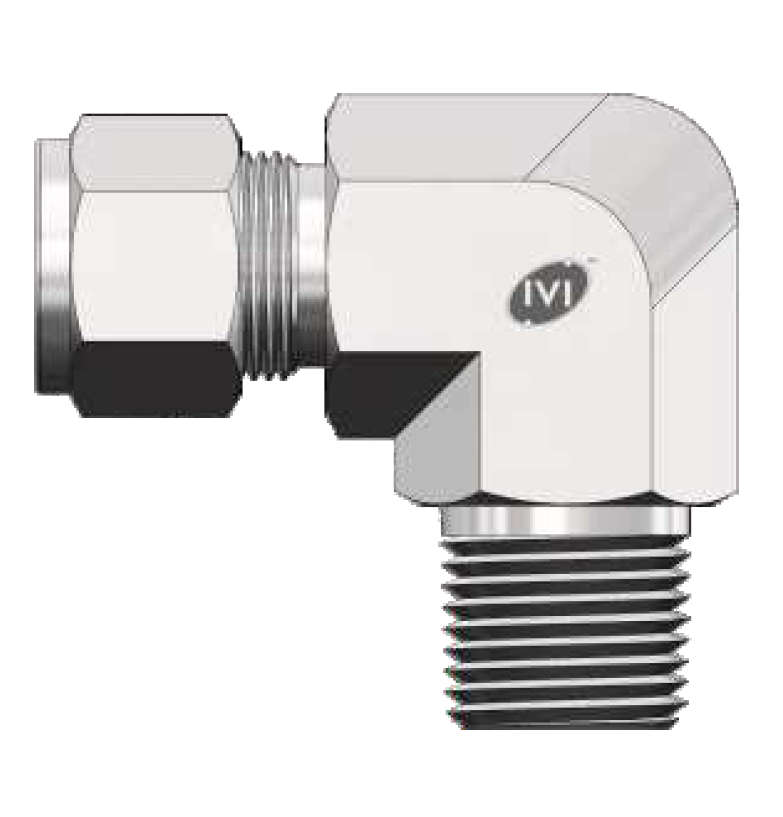

The Tube Fittings Male Elbow NPT is a mechanical fitting that provides a 90° connection between tubing and components with National Pipe Taper (NPT) threads. It is designed for use in high-pressure systems with operating pressures up to 6000 PSI.

The elbow configuration allows tubing runs to change direction while maintaining a sealed joint. Threads are tapered in accordance with NPT standards to create a pressure-tight seal when properly installed.

These fittings are produced in a range of sizes from 1/4” to 1” and are manufactured in line with ASME B16.34, MSS-SP-99, and ASME B31.3 requirements. Typical applications include oil, gas, and industrial process systems where tubing must be connected to threaded equipment or piping at an angle.

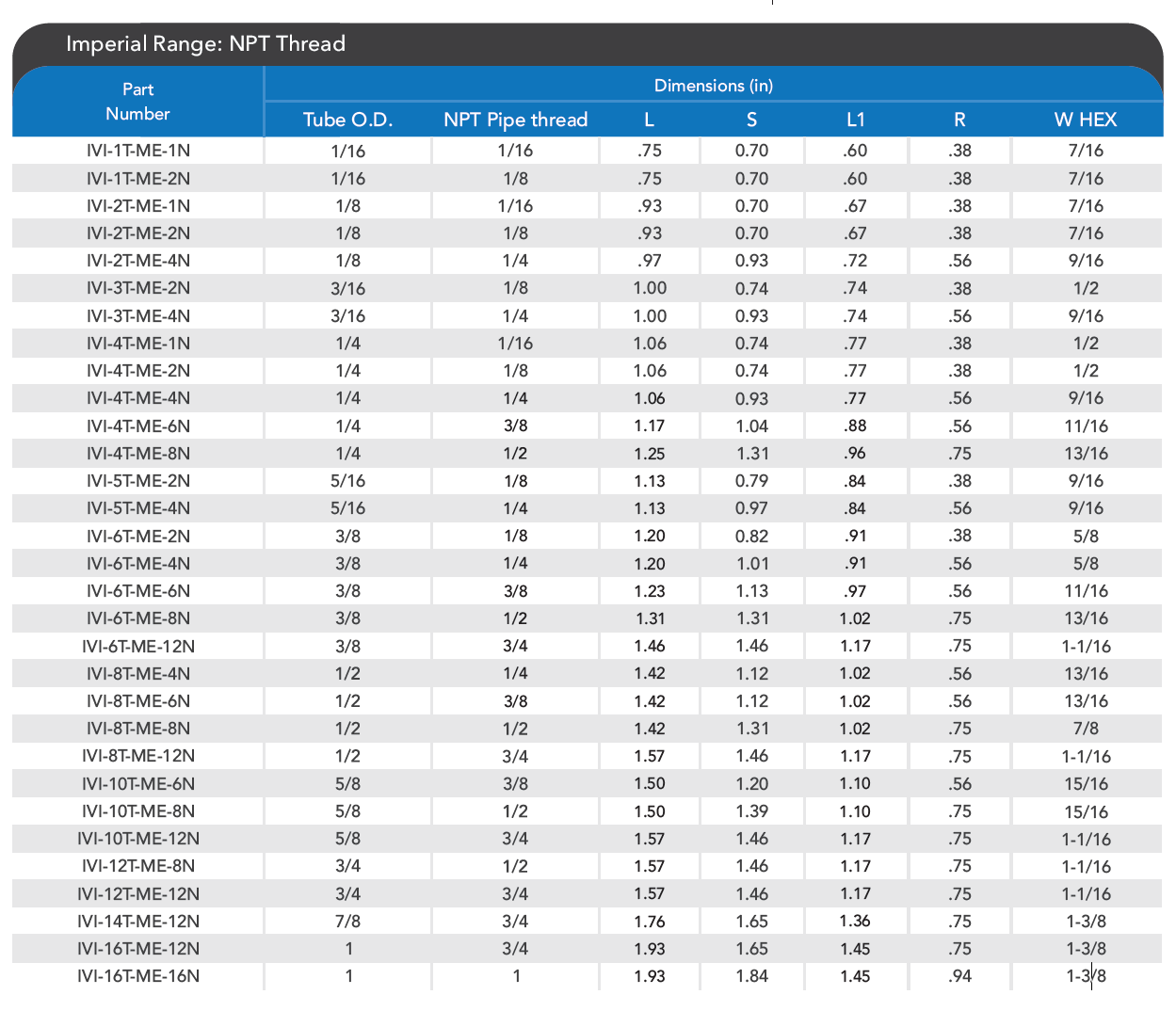

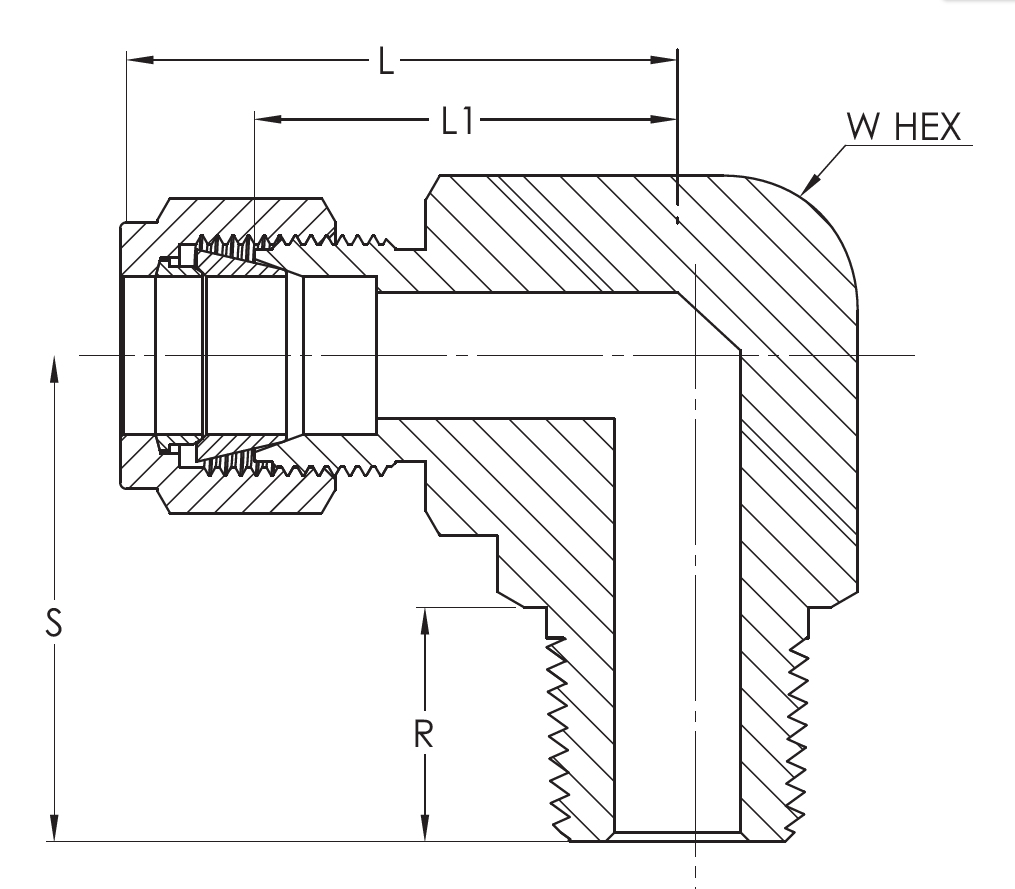

Engineering Data
