Executive Summary
The 5 Valve Manifold R Type – Pipe to Pipe is designed for connecting impulse lines to differential pressure transmitters in the oil and gas industry. Its configuration of two block valves, two equalizer valves, and one bleed valve allows safe isolation, accurate calibration, and easy maintenance of pressure systems. This R Type manifold is chosen when multiple valve functions are needed in a compact, reliable, and high-pressure rated solution.
Technical Specifications

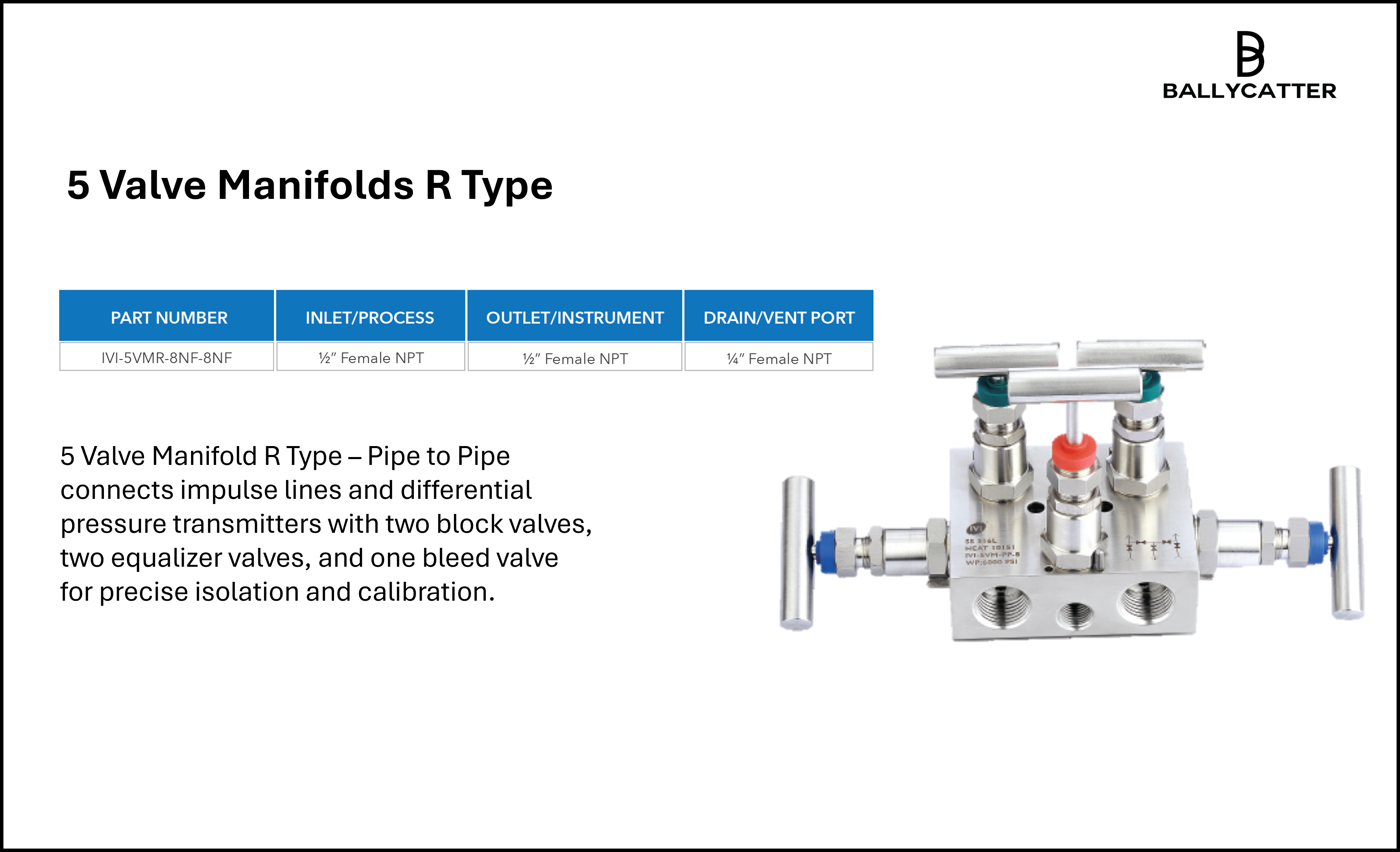

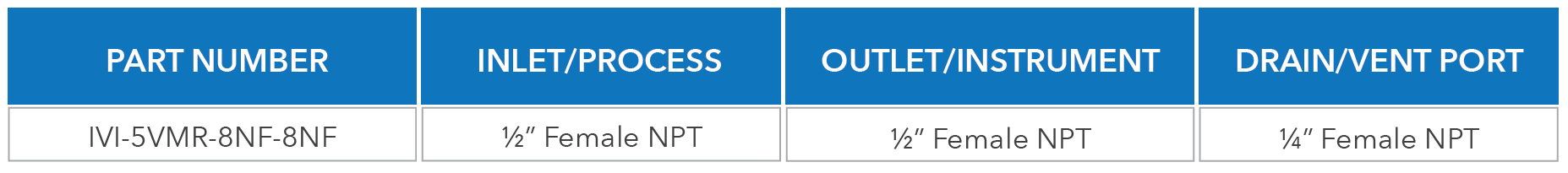

| Inlet/Process | 1/2” Female NPT |
| Outlet/Instrument | 1/2” Female NPT |
| Drain/Vent Port | 1/4” Female NPT |
| Type | R type 5 valve manifold |
| Standard Working Pressure | 6000 PSI |
| Pressure-Temperature Ratings | ASME B16.34 |
| Process Piping Code | ASME B31.3 |
| Temperature Rating | -50°C to 230°C |
| Body-Bonnet Seal | Metal-to-metal |
| Type Tested | MSS-SP-99 |
Features and Benefits
- Safety locknut and back-seated stem for added security.
- Dust cap to prevent contamination of the stem and threads.
- Minimizes potential leak paths for safer operation.
- Compact design reduces space and number of components.
- Durable construction ensures long service life.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description
The 5 Valve Manifold R Type – Pipe to Pipe is designed for high-pressure oil and gas applications where differential pressure transmitters or gauges need to be connected, calibrated, and maintained safely. This manifold provides two block valves, two equalizer valves, and one bleed valve in a single assembly, allowing operators to isolate the transmitter, equalize pressure between impulse lines, and safely vent pressure when required.
The R Type configuration is particularly suitable when multiple valve functions are needed in a compact layout. By combining all five valves in one manifold, it reduces the number of separate components, minimizes potential leak points, and saves installation space compared to using individual valves.
This manifold is ideal for environments where reliability and safety are critical, offering 6000 PSI standard working pressure, metal-to-metal sealing for high-pressure and temperature performance, and compatibility with NACE MR 01 75 materials. Its design ensures smooth operation, low torque handling, and long-term durability, making it the preferred choice for complex measurement and control systems in oil and gas operations.

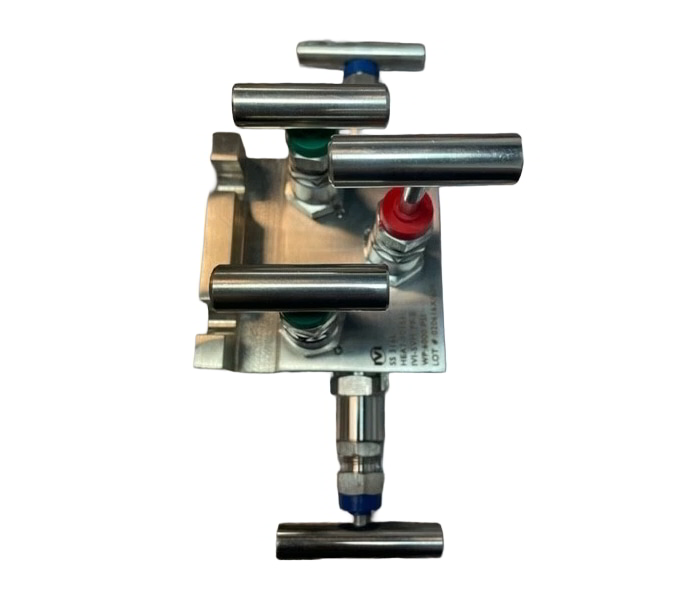

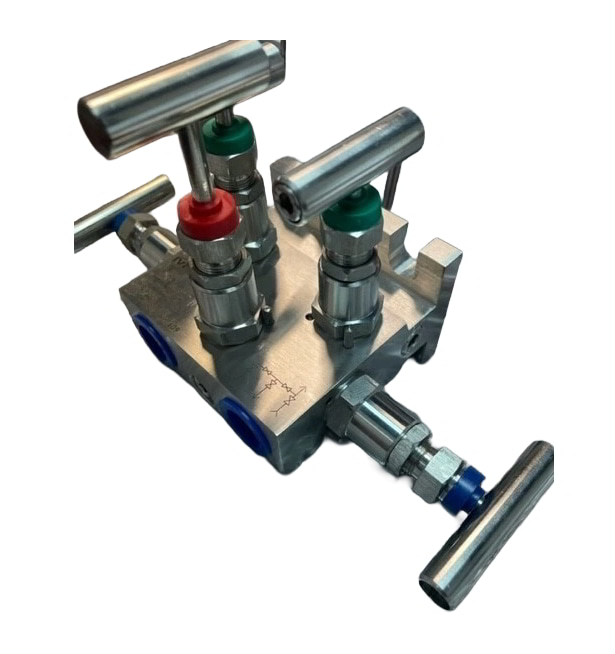

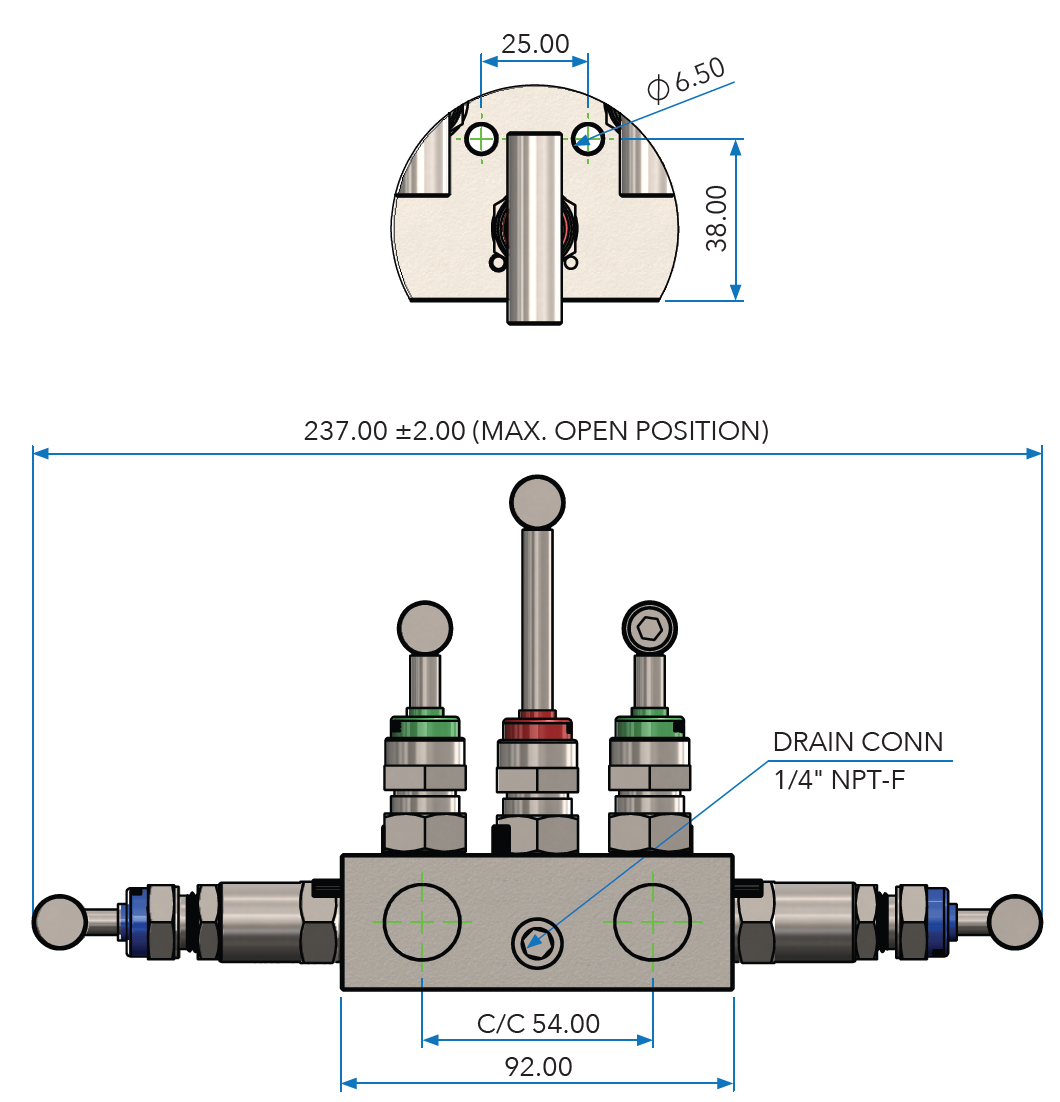

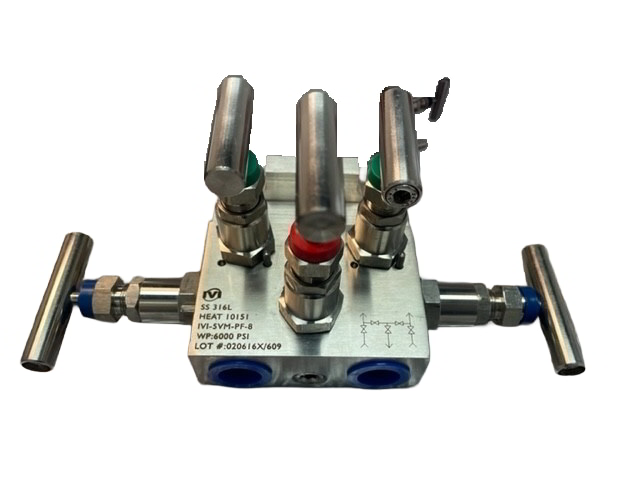

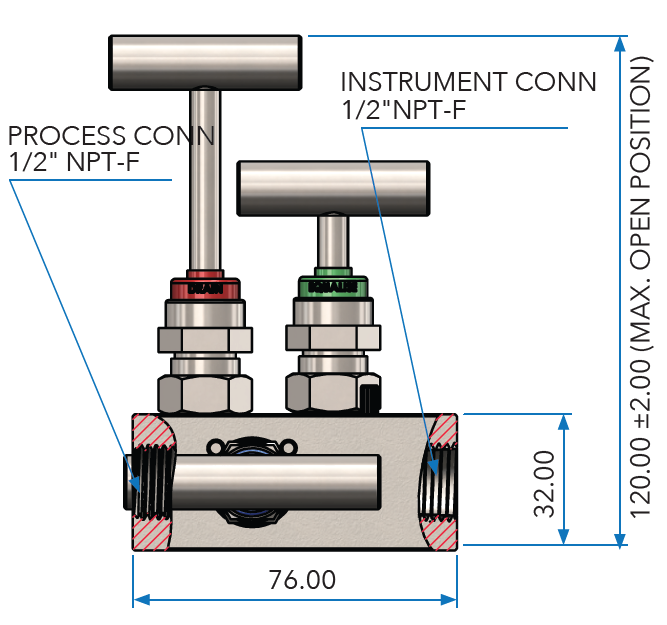

Engineering Data
