Ball Valve Lever Operated – 2-Way Tube OD End Connection – 1/4”, 3/8”, 1/2”, 3/4”, 1” – 6000 PSI – ASME B16.34 / ISO 9001

Ball Valve

Also known as:

Shut-off Valve, Quarter-turn Valve

Ball Valve Lever Operated – 2-Way Tube OD End Connection – 1/4”, 3/8”, 1/2”, 3/4”, 1” – 6000 PSI – ASME B16.34 / ISO 9001

Ball Valve

Also known as:

Shut-off Valve, Quarter-turn Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

Ball Valve Lever Operated 2-Way Tube OD End Connection is an isolation valve for controlling or shutting off fluid flow, with secure tube OD connections for easy inline installation.

Executive Summary

The Ball Valve Lever Operated 2-Way Tube OD End Connection is an isolation valve used to start, stop, or regulate fluid flow in oil and gas piping systems. Its tube OD connections allow direct attachment to tubing, eliminating the need for additional fittings. The valve uses a floating ball design for leak-proof shut-off and operates with a quarter-turn lever for quick and reliable control in industrial applications.

Technical Specifications

Connection Tube OD
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Design Standard ASME B16.34
Pressure-Temperature Rating ASME B16.34
Piping Code ASME B31.3
Type Test MSS-SP-99
Flow Bi-Directional
Configuration 2-Way straight

Features and Benefits

  • Lever-operated, quarter-turn.
  • 2-Way floating ball design.
  • Internally loaded stem with shoulder.
  • Can operate in extreme temperature conditions.
  • Minimizes pressure drop across the valve.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Ball Valve Lever Operated – 2-Way Tube OD End Connection is a high-performance isolation valve designed to start, stop, or regulate fluid flow in oil and gas piping systems. Its 2-way configuration provides a simple and reliable method for controlling flow in a single pipeline, allowing full shut-off or bi-directional flow as needed in production lines, injection lines, sampling lines, or small-diameter process tubing.

The valve features tube OD (outer diameter) connections, which allow direct attachment to tubing without the need for additional fittings. This simplifies installation, reduces potential leak points, and is especially useful in compact piping layouts or systems where welded or threaded connections are impractical.

The floating ball design ensures consistent, leak-proof shut-off even under high-pressure conditions. Operation is simple and efficient with a quarter-turn lever, providing fast control with low torque. The internally loaded stem with shoulder prevents blowout, enhancing safety, and replaceable seats and packings extend service life.

The valve is suitable for a wide range of oil and gas applications where reliable isolation and ease of installation are required.

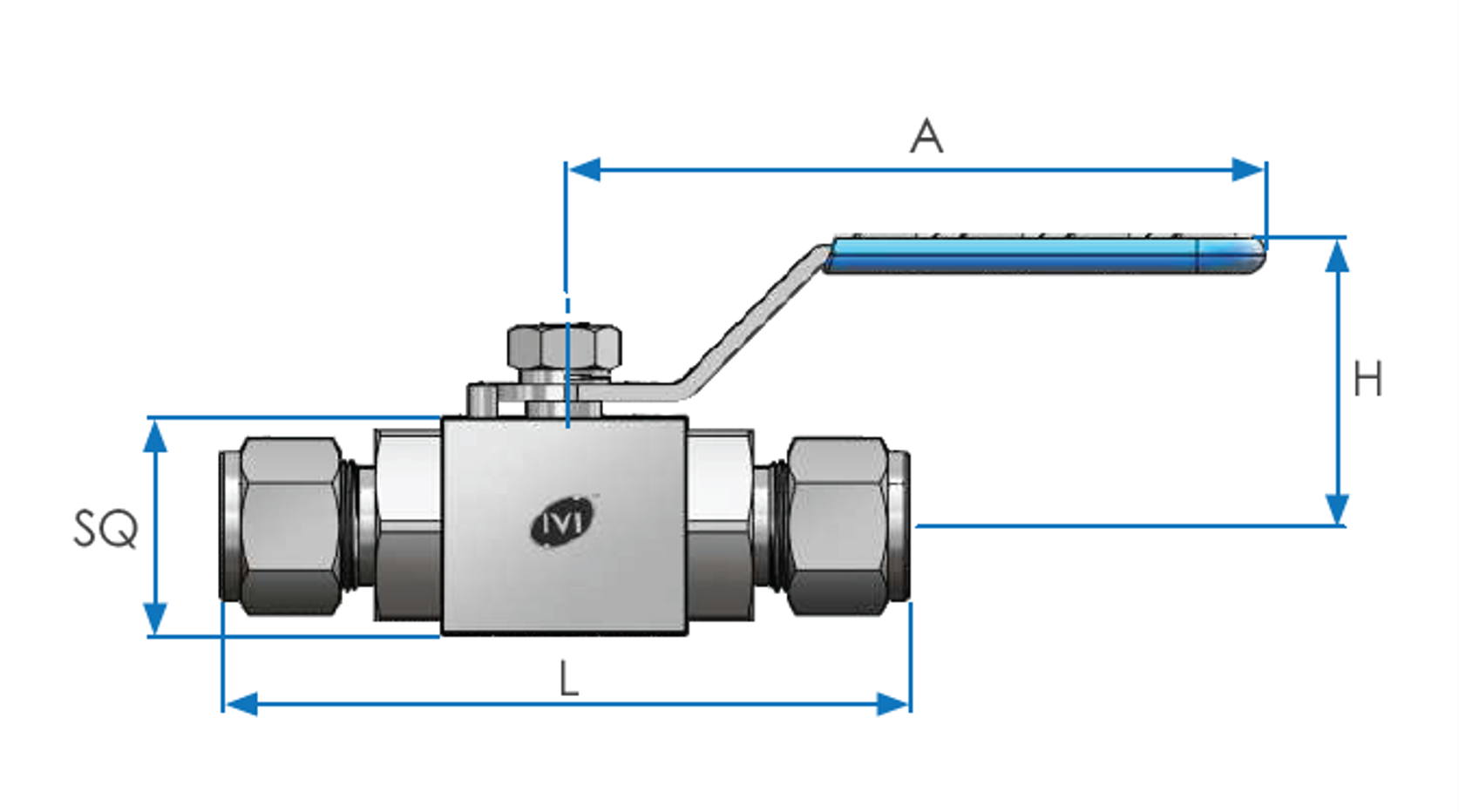

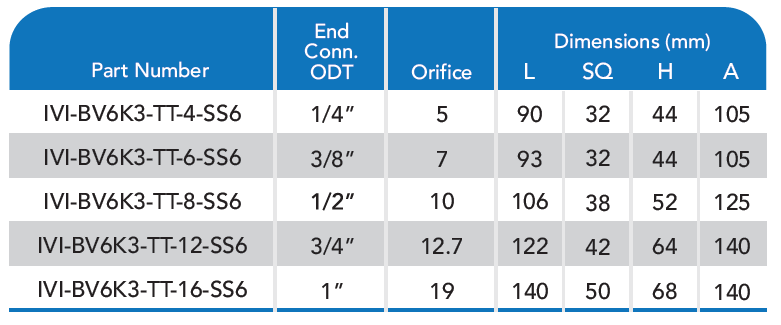

Engineering Data
