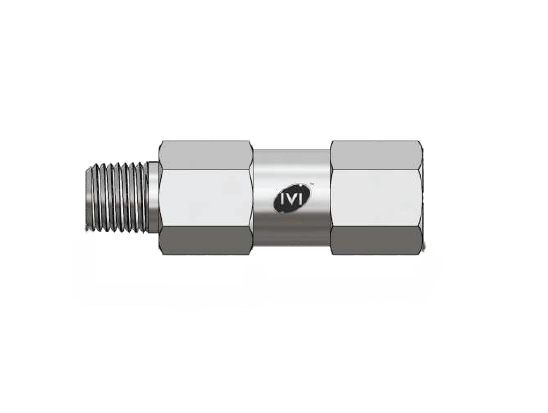

Check Valve Poppet Type – Male x Female 1/4" NPT – 6000 PSI – ISO 9001

Check Valve

Also known as:

Non-return Valve, One-way Valve, Reflux Valve, Retention Valve

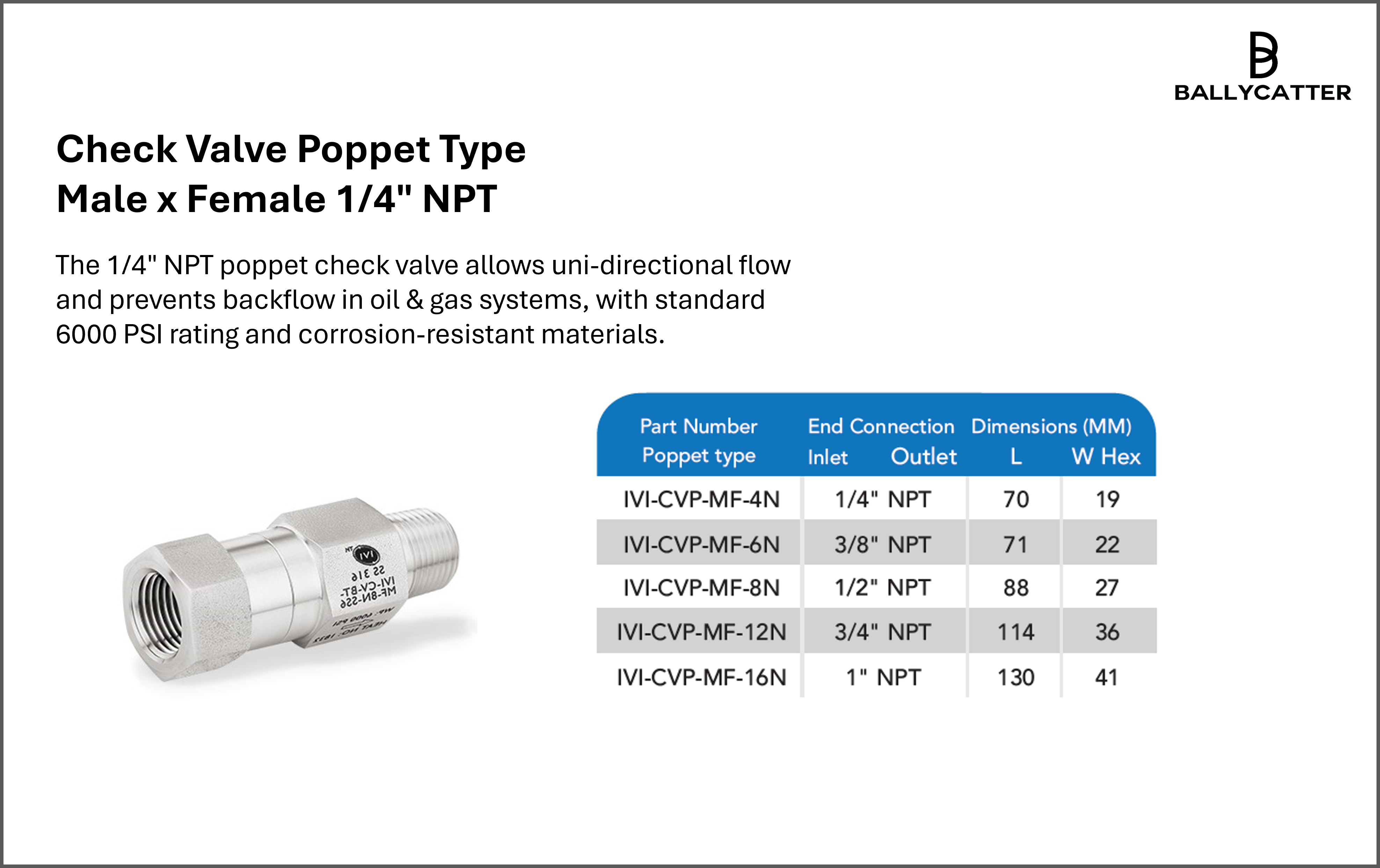

Check Valve Poppet Type – Male x Female 1/4" NPT – 6000 PSI – ISO 9001

Check Valve

Also known as:

Non-return Valve, One-way Valve, Reflux Valve, Retention Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

The 1/4" NPT poppet check valve allows uni-directional flow and prevents backflow in oil & gas systems, with standard 6000 PSI rating and corrosion-resistant materials.

Executive Summary

The 1/4" poppet-type check valve is used in oil and gas systems to allow fluid flow in one direction and prevent backflow, protecting pipelines and equipment. Its poppet design provides fast response and reliable sealing under pressure. The 1/4" size is ideal for small-diameter lines, instrumentation, sampling, or control applications. Male × female connections allow secure inline installation and easy integration into existing piping, reducing potential leak points and simplifying system layout.

Technical Specifications

End Connection Male x Female NPT
Size 1/4"
Flow Direction Uni-directional
Standard Working Pressure 6000 PSI
Maximum Working Pressure 10000 PSI (on request)
Cracking Pressure 1/3 to 25 PSI
Temperature Rating –40 °F to 450 °F (–40 °C to 232 °C)
Materials SS 316, Brass, Monel 400
Installation Inline or panel-mounted integration possible
Valve Type Poppet Check Valve

Features and Benefits

  • Factory tested for cracking and reseal performance.
  • Heat code traceability for quality assurance.
  • Uni-directional flow to prevent backflow.
  • Easy integration into existing piping without additional fittings.
  • Protects pipelines, pumps, and equipment from reverse flow.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The 1/4" poppet type check valve with male × female NPT connections is designed to allow fluid flow in one direction while preventing backflow in oil and gas systems. Its poppet design provides fast response and reliable sealing under pressure, ensuring protection of pipelines, pumps, and other critical equipment from damage caused by reverse flow or pressure fluctuations.

The 1/4" size is ideal for small diameter lines, instrumentation, sampling, or control applications where space is limited and precise flow control is required. Male × female connections allow secure inline installation and integration into existing piping without the need for additional fittings, reducing potential leak points and simplifying system layout.

Factory tested for cracking and reseal performance, the valve has a standard working pressure of 6000 psi, with optional ratings up to 10000 PSI. It offers selectable cracking pressures from 1/3 to 25 psi, making it adaptable to various flow requirements. The valve is available in corrosion resistant materials such as SS 316, SS 316L, Duplex, Super Duplex, Hastelloy C276, Inconel 625, Monel 400, and Brass, suitable for demanding oil and gas environments. Heat code traceability ensures quality and material verification, and additional testing options including vibration, temperature, and helium testing are available for critical applications.

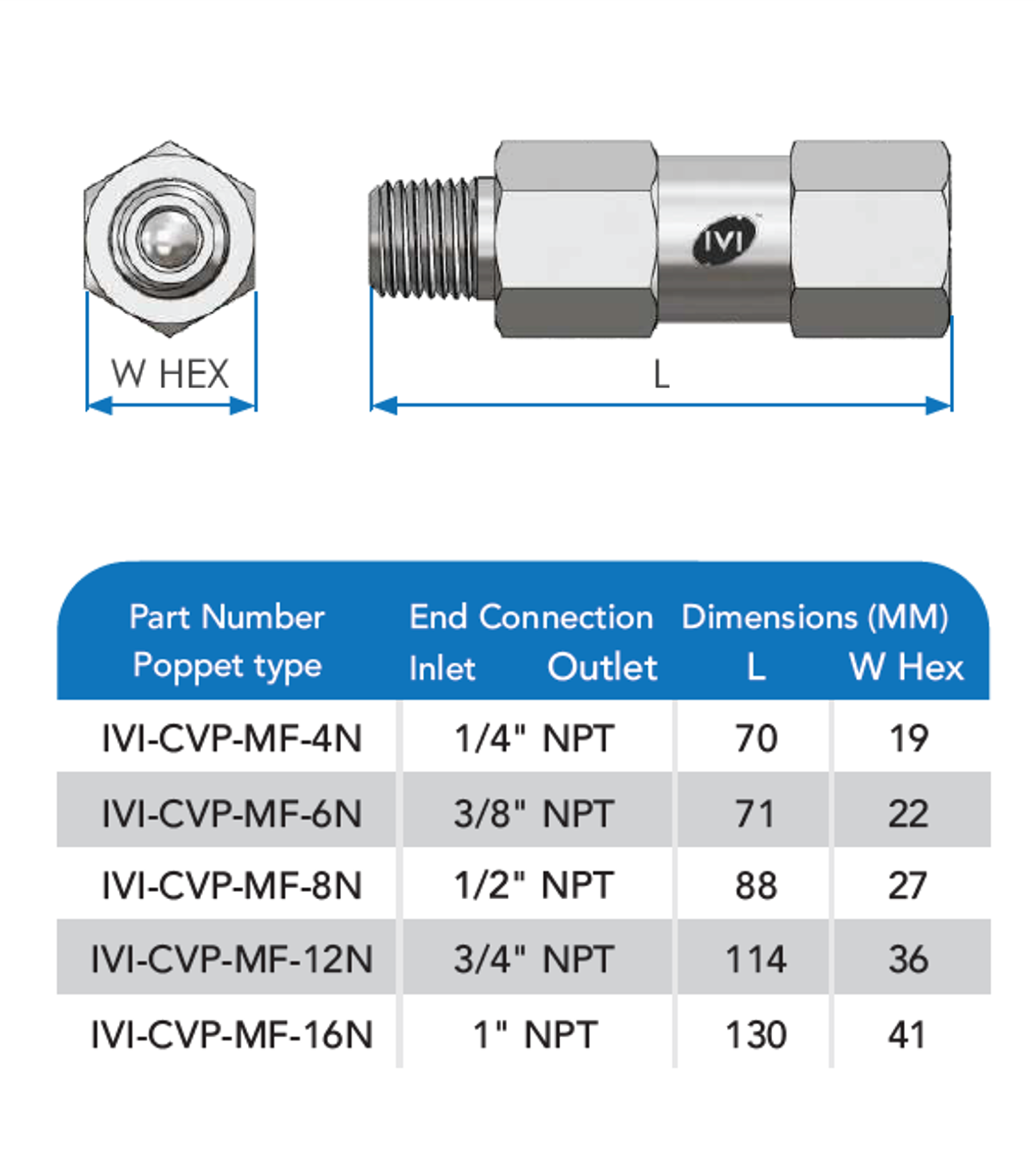

Engineering Data
