The 2 Valve Manifold T Type – Pipe to Flange 1/2” Female NPT allows easy block, bleed, and calibration of pressure transmitters or gauges.Sign in
Welcome back
Sign up
Sign-up and make easy contact all providers in the industry.
Let's create your free account
Executive Summary
The 2 Valve Manifold T Type – Pipe to Flange 1/2” Female NPT is designed to connect impulse lines to pressure transmitters and gauges in oil and gas systems. It allows safe isolation of instruments for maintenance, testing, or calibration without shutting down the process.
The T-type configuration provides a straightforward two-valve setup for blocking, bleeding, and venting, making it ideal for compact installations where space is limited.
Choosing a pipe-to-pipe manifold ensures direct connection to piping, reduces leak points, and simplifies installation while maintaining accurate and reliable pressure measurement under high pressure conditions up to 6000 PSI.
Technical Specifications

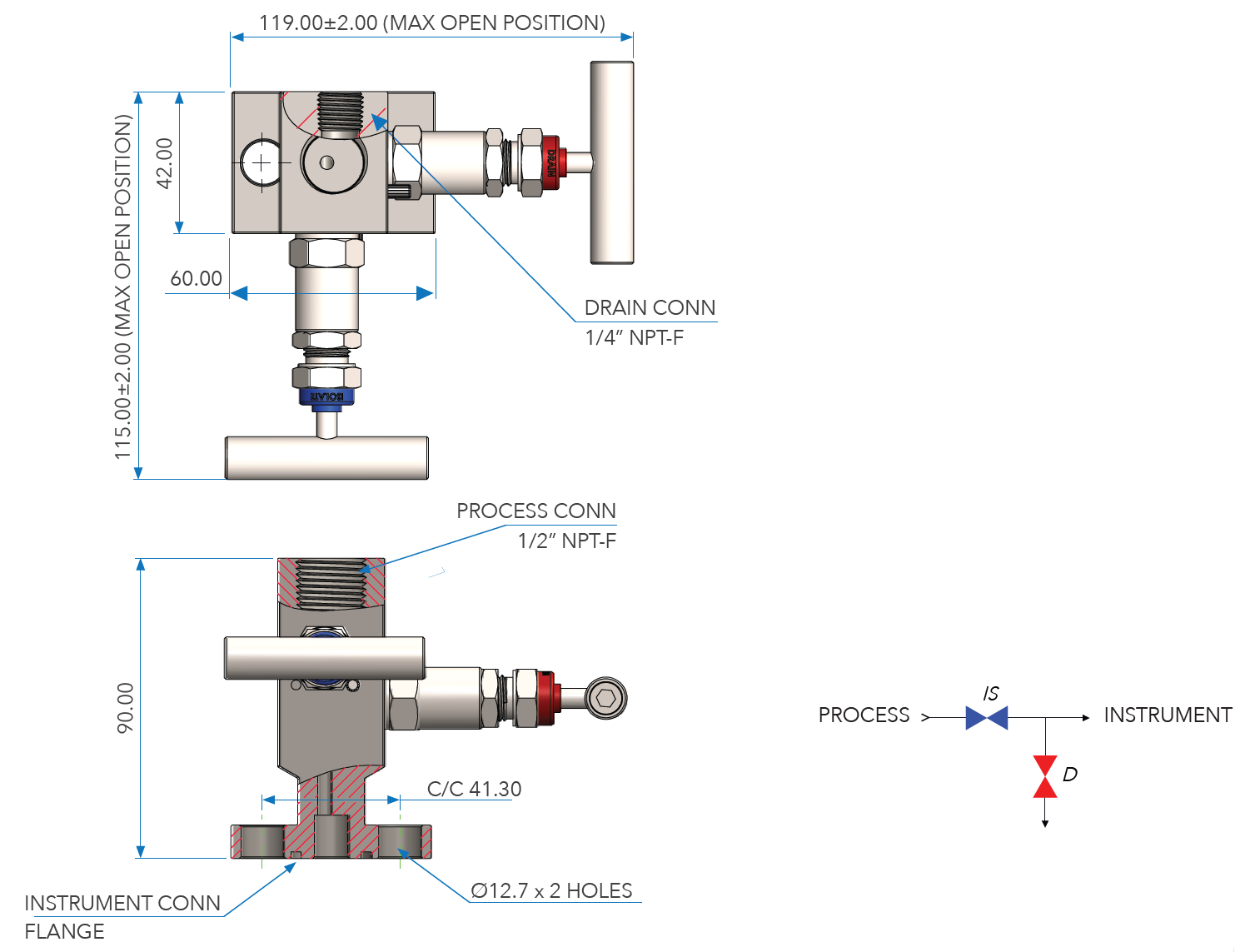

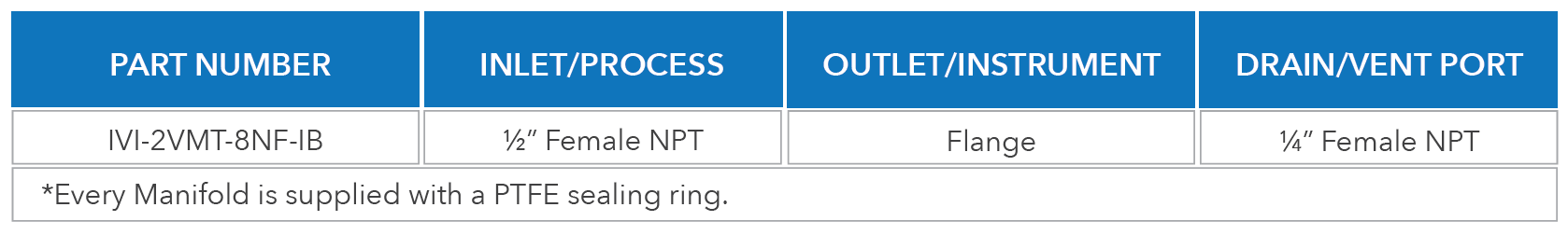

| Inlet/Process | 1/2” Female NPT |
| Outlet/Instrument | Flange |
| Drain/Vent Port | 1/4” Female NPT |
| Type | T type 2 valve manifold |
| Standard Working Pressure | 6000 PSI |
| Pressure-Temperature Ratings | ASME B16.34 |
| Process Piping Code | ASME B31.3 |
| Temperature Rating | -50°C to 230°C |
| Body-Bonnet Seal | Metal-to-metal |
| Type Tested | MSS-SP-99 |
Features and Benefits
- Pipe-to-flange design reduces leak points and simplifies installation.
- T-type configuration allows easy block, bleed, and vent operations.
- Packing below stem threads isolates threads from process media.
- Rolled stem threads provide smooth operation and long life.
- Removable T-handle allows low-torque operation.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.

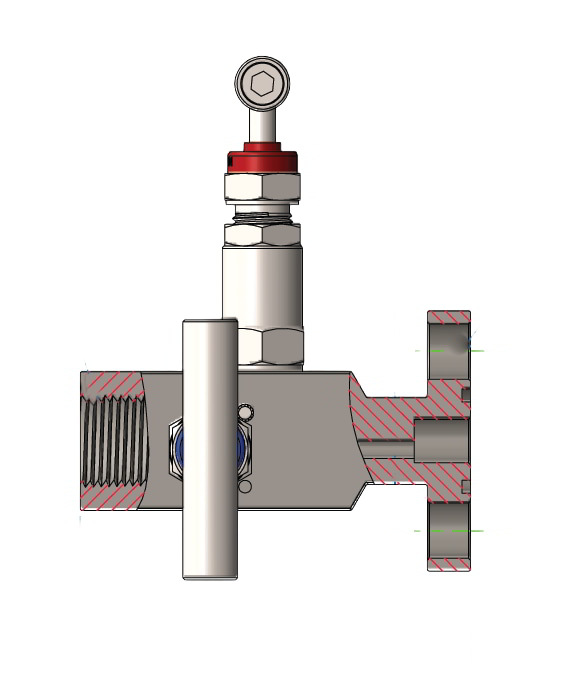

Detailed Description
The 2 Valve Manifold T Type – Pipe to Flange 1/2” Female NPT is designed to provide a reliable and compact solution for connecting impulse lines to pressure transmitters and gauges. This manifold allows operators to safely isolate instruments from the process for maintenance, calibration, or testing, without the need to shut down the system. The T-type configuration features two valves that control flow to and from the instrument, enabling efficient block, bleed, and vent operations.
The pipe-to-pipe design ensures a direct connection to the piping system, which reduces potential leak points and simplifies installation. It is suitable for high-pressure applications, with a standard working pressure of 6000 PSI and options available for higher pressures. The manifold is built with a metal-to-metal body and bonnet seal for enhanced durability and temperature resistance, with materials that can comply with NACE MR 01 75 standards for corrosion resistance.
Additional features include a removable T-handle for low-torque operation, self-centering non-rotating stems for consistent shutoff, and a dust cap to prevent contamination. Packing is positioned below the stem threads to isolate the threads from the process media, and the stem’s rolled threads provide smooth operation and long life. The manifold is 100% factory tested for leakage and performance, ensuring reliable operation in critical oil and gas applications.
