Gauge Root Valve – Female x Female – 1/4” NPT – 6000 PSI – ASME B16.34 / ISO 9001 / PED / ATEX

Gauge Root Valve

Also known as:

Gauge Isolation Valve

Gauge Root Valve – Female x Female – 1/4” NPT – 6000 PSI – ASME B16.34 / ISO 9001 / PED / ATEX

Gauge Root Valve

Also known as:

Gauge Isolation Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

Gauge Root Valve Female x Female 1/4” NPT provides reliable isolation for pressure instruments and ensures leak-free operation under high pressure and temperature.

Executive Summary

The Gauge Root Valve Female x Female 1/4” NPT is designed to control and isolate pressure instruments in a piping system. Its female x female configuration allows for direct inline installation, simplifying connections and reducing the need for adapters. The valve handles pressures up to 6000 PSI and is suitable for a wide range of industrial applications, providing reliable and leak-free performance while protecting sensitive instruments.

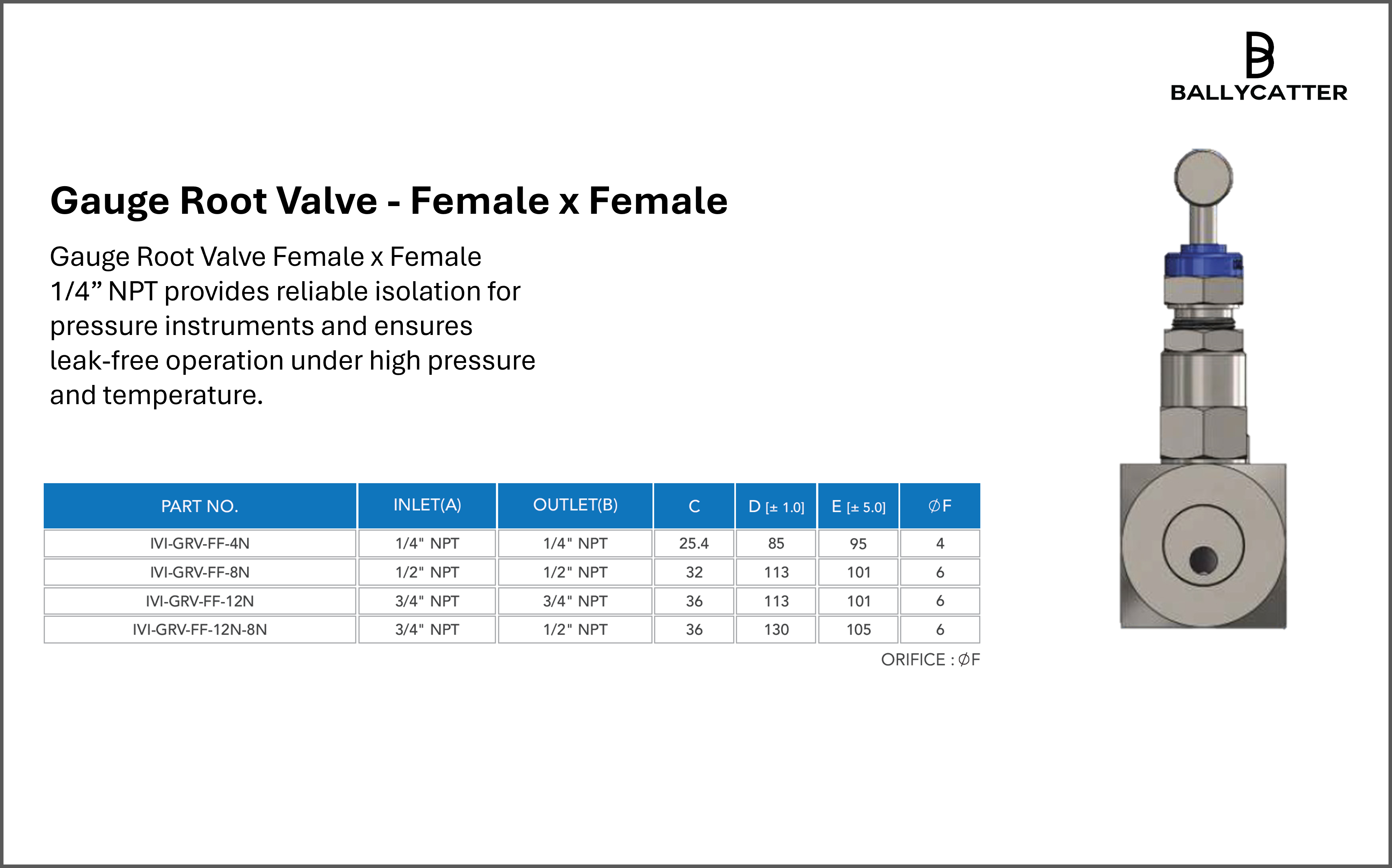

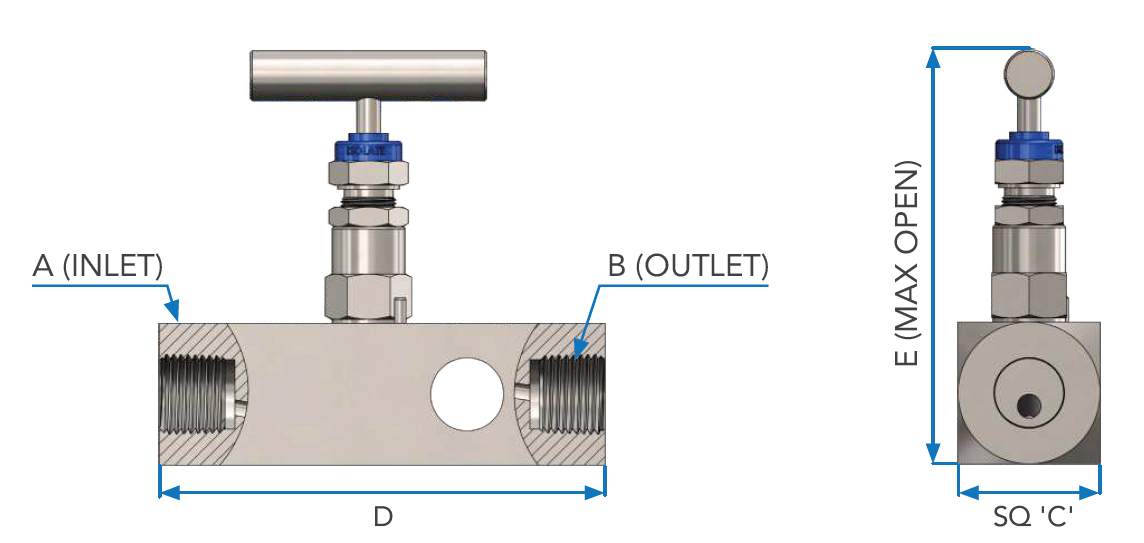

Technical Specifications

Inlet 1/4” NPT
Outlet 1/4” NPT
Width 25.4
Length 85
Height 95
Bolt Hole Spacing 4
Connection Type Female x Female
Standard Working Pressure 6000 PSI
Maximum Working Pressure Up to 10000 PSI on request

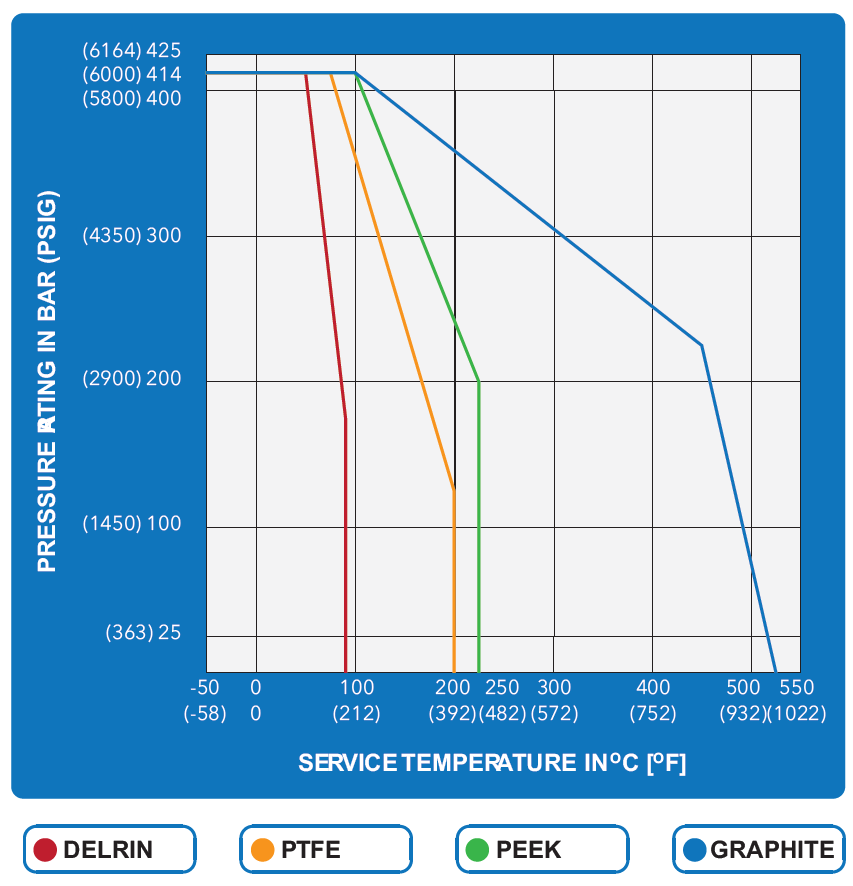

Temperature Rating -50°C to 230°C (500°C with graphite)

Features and Benefits

  • Easy installation and maintenance.
  • Rated for standard working pressure of 6000 PSI.
  • Temperature range suitable for most industrial applications.
  • Removable “T” handle for low torque operation.
  • Protects valve components from corrosion and contamination.

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

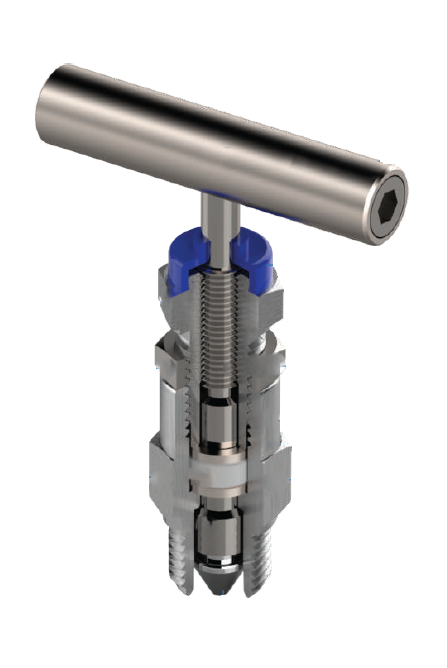

The Gauge Root Valve Female x Female 1/4” NPT is a small but essential valve used to protect and control pressure instruments, like gauges and transmitters, in fluid or gas systems. Its female x female connection allows it to connect directly to two male-threaded fittings, making installation simple and reducing the risk of leaks.

This valve can handle pressures up to 6000 PSI and operates safely across a wide temperature range. The internal stem is designed with a back seat and the packing is placed below the threads, keeping the threads protected from the process media. A self-centering, non-rotating tip ensures a tight seal every time, preventing leaks.

It also features a removable “T” handle for easy turning with low effort, smooth rolled threads for long-lasting use, and a dust cap to prevent dirt or debris from entering the valve. Each valve is factory tested with nitrogen at 1000 PSI to ensure it seals correctly and operates reliably. This type of valve is ideal for isolating and protecting pressure instruments in chemical, oil and gas, and industrial processes.

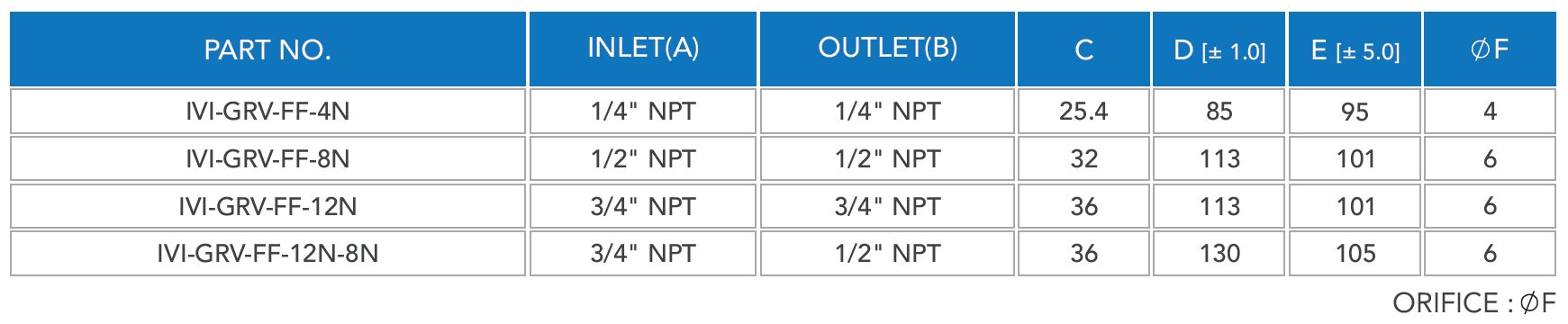

Engineering Data
