Needle Valves Hex Body Series – Male x Female – 1/4", 3/8”, 1/2”, 3/4", 1” – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Needle Valve

Also known as:

Plunger Valve

Needle Valves Hex Body Series – Male x Female – 1/4", 3/8”, 1/2”, 3/4", 1” – 6000 PSI – ASME B16.34 / MSS-SP-99 / ASME B31.3

Needle Valve

Also known as:

Plunger Valve

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

6 - 8 Weeks

Note:

Hex body needle valves Male x Female provide precise flow control and reliable high-pressure performance.

Executive Summary

Hex body needle valves Male x Female are precision valves used to control or isolate flow in high-pressure piping systems. The hex body allows for easy wrench installation, and the Male x Female configuration enables direct connection between threaded pipe ends or fittings.

They are ideal for applications in instrumentation, process control, and oil and gas systems where accurate flow adjustment and secure sealing are required.

Technical Specifications

Body Style Hex Body Series
Connections Male x Female NPT
Body Bonnet Seal Metal to Metal
Standard ASME B16.34
Valve Ratings ASME B31.3 Process Piping Code
Type Tested MSS-SP-99
Standard Working Pressure 6000 PSI
Dust Protection Dust cap on stem
Handle Removable T-handle for low torque operation
Temperature Rating -50°C to 230°C

Features and Benefits

  • Safe and durable under high pressure and temperature conditions.
  • Simplifies operation with T-handle and protected stem threads.
  • Traceable and tested to ensure quality and performance standards.
  • Metal-to-metal body and bonnet seal.
  • Male and female NPT connections for versatile piping integration.

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The Needle Valves Hex Body Series Male x Female are industrial valves designed for precise flow control in high-pressure systems. The hexagonal body allows for standard wrench access, facilitating installation and maintenance. Male and female NPT connections enable integration into various piping systems, commonly used in instrumentation, process control, and oil and gas applications.

These valves are manufactured according to ASME B16.34 standards and type-tested to MSS-SP-99. They have a standard working pressure of 6000 PSI, with options for higher pressures. The metal-to-metal body and bonnet seal provides reliable sealing under high pressure and temperature conditions. Materials can comply with NACE MR 01 75, and the valves operate over a temperature range of -50°C to 230°C, with graphite seals available up to 500°C.

Each valve undergoes factory testing for seat and packing leakage using nitrogen gas at 1000 PSI. The valves feature a back-seated stem, rolled threads, and a mirror-finished stem through the packing, ensuring consistent and smooth operation. The removable T-handle reduces torque requirements during operation, and a dust cap protects the stem threads. The hex body and male-female connections provide a standard interface for connection while maintaining secure and leak-resistant operation.

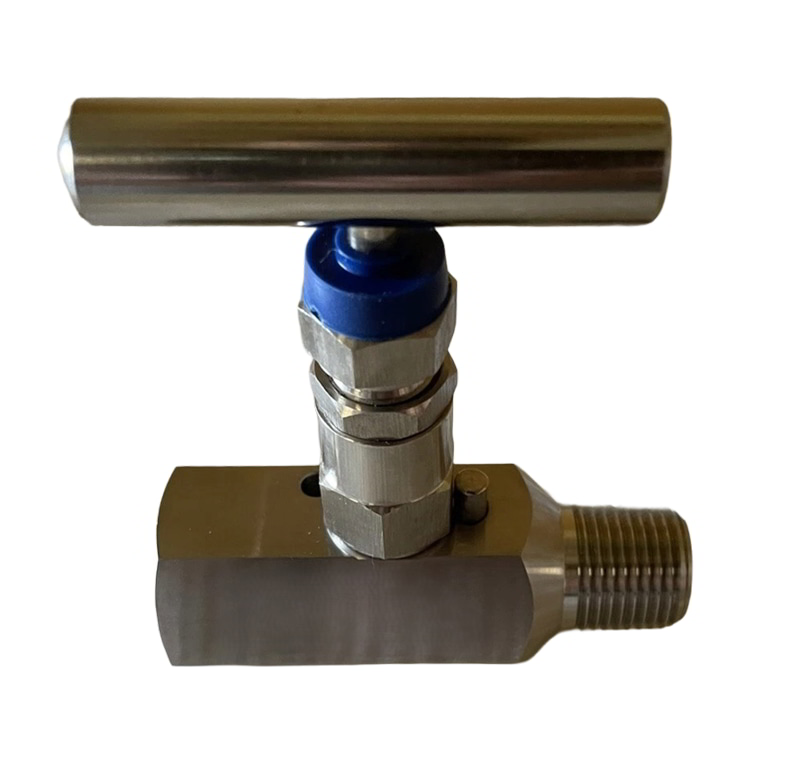

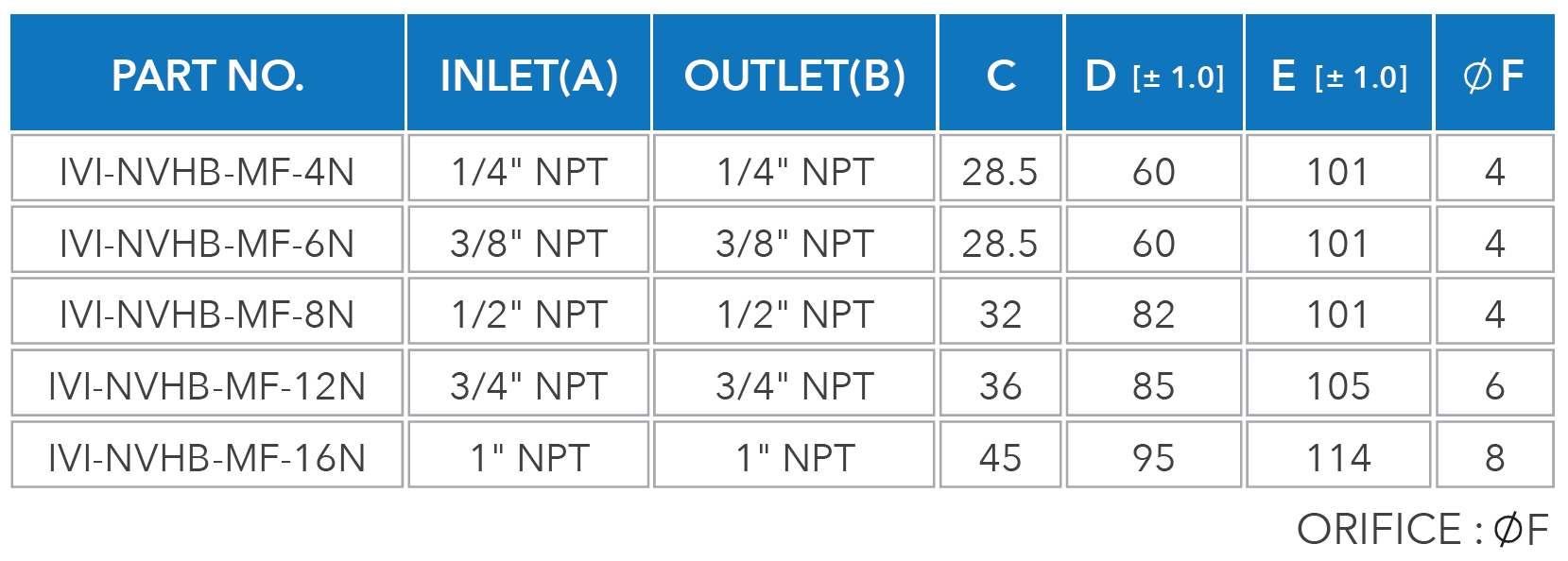

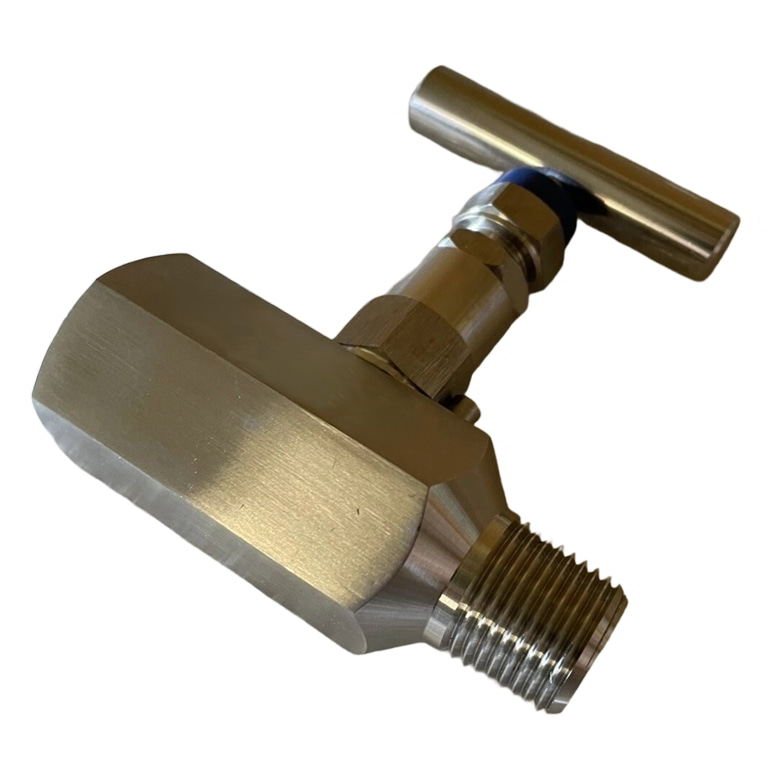

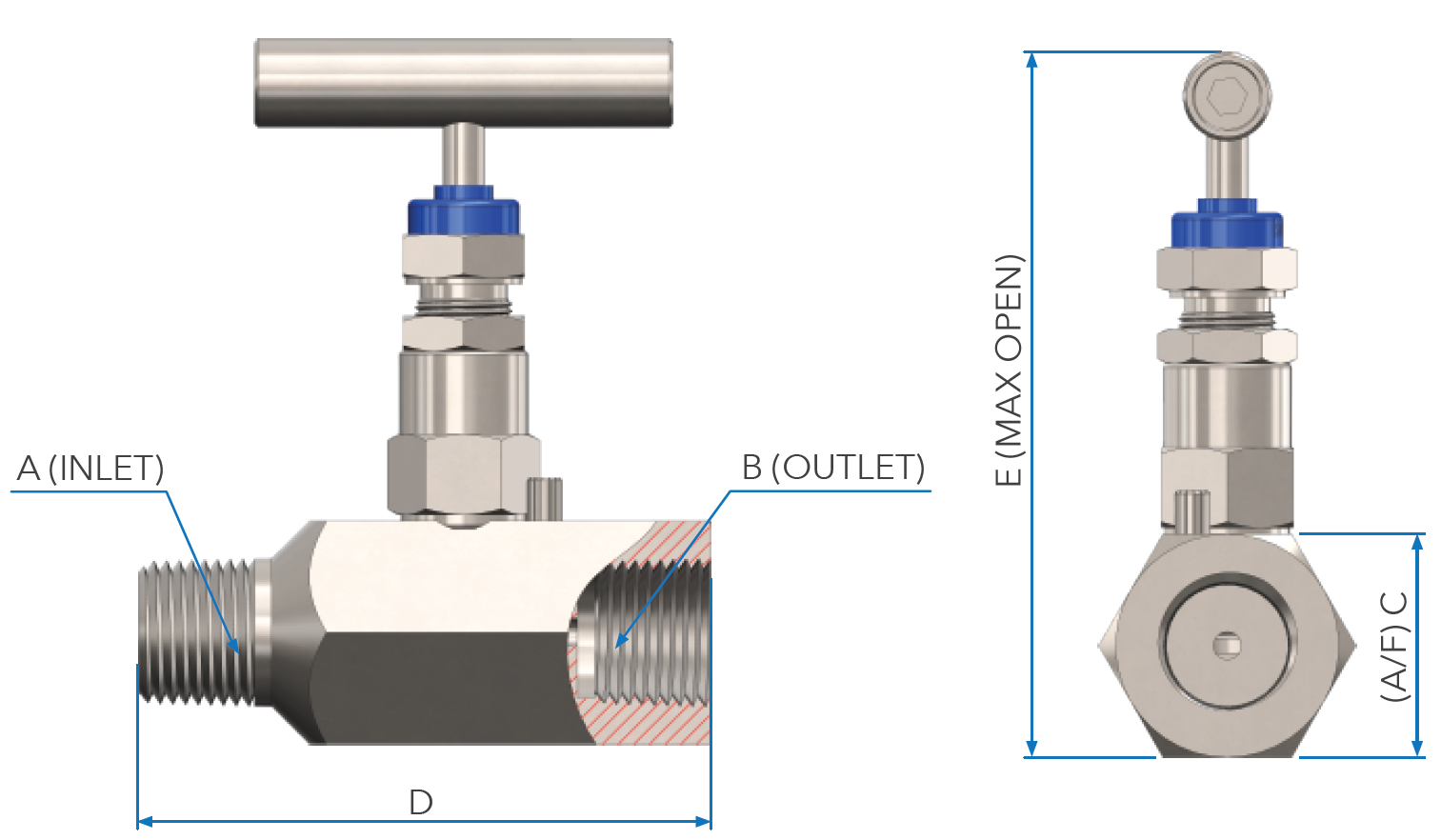

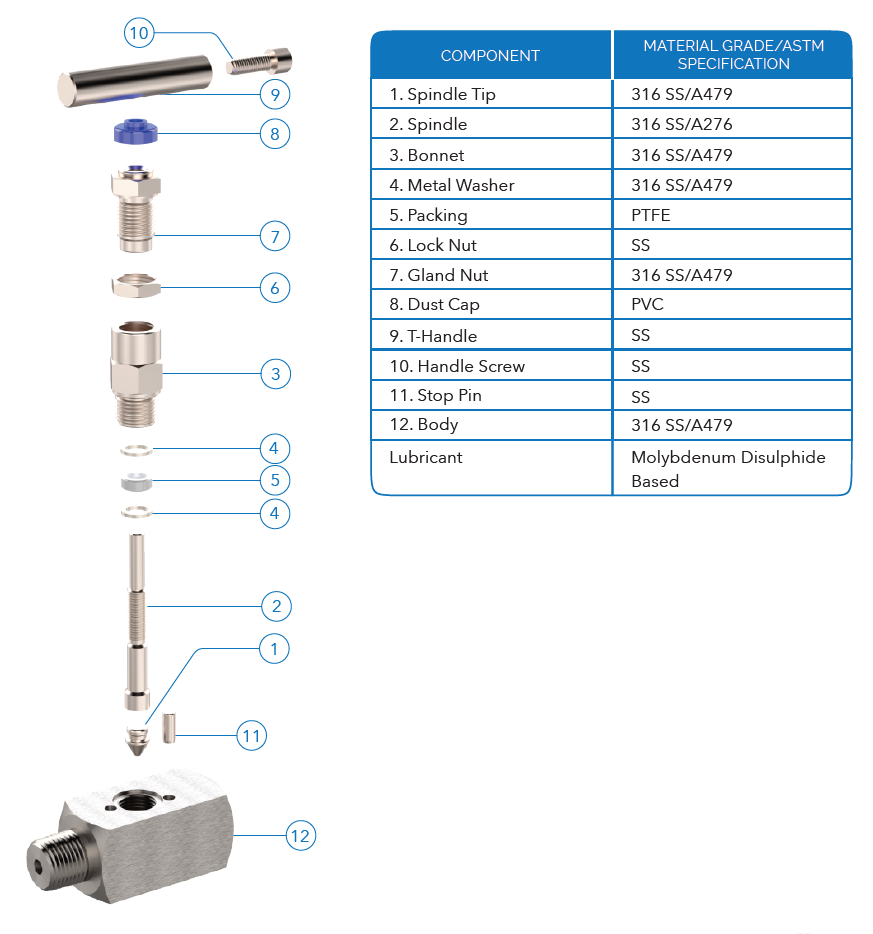

Engineering Data
