Executive Summary
The 2 Valve Manifold H Type Flange to Flange provides a reliable solution for connecting impulse lines and transmitters. It features a simple two-valve configuration that allows operators to block, bleed, and calibrate static pressure transmitters or gauges efficiently.
Designed for high pressure applications up to 6000 PSI, it ensures consistent performance, tight shutoff, and safe operation in demanding environments. The flange-to-flange connection simplifies installation and maintenance, making it a preferred choice for critical measurement and control systems.

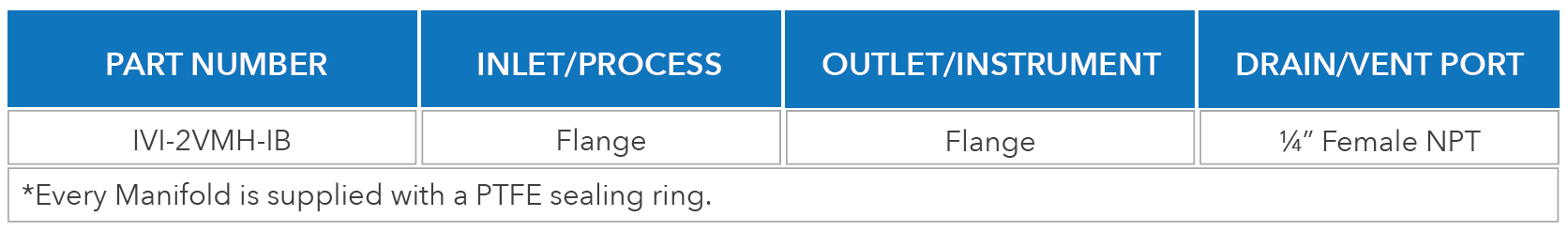

Technical Specifications
| Inlet/Process | Flange |
| Outlet/Instrument | Flange |
| Drain/Vent Port | 1/4” Female NPT |
| Type | H type 2 valve manifold |
| Standard Working Pressure | 6000 PSI |
| Pressure-Temperature Ratings | ASME B16.34 |
| Process Piping Code | ASME B31.3 |
| Temperature Rating | -50°C to 230°C |
| Body-Bonnet Seal | Metal-to-metal |
| Type Tested | MSS-SP-99 |
Features and Benefits
- Flange to Flange connections for secure installation.
- Simple two valve configuration for easy block, bleed, and calibration.
- Reduces risk of leaks and process interruptions.
- Factory-tested for quality and traceability.
- Easy to operate and maintain in the field.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description
The 2 Valve Manifold H Type Flange to Flange is designed for use in the oil and gas industry to connect impulse lines and transmitters. Its simple two-valve configuration allows operators to perform essential tasks such as blocking, bleeding, and calibrating static pressure transmitters or gauges with ease. This design ensures accurate and reliable measurement while minimizing the risk of leaks or process interruptions.

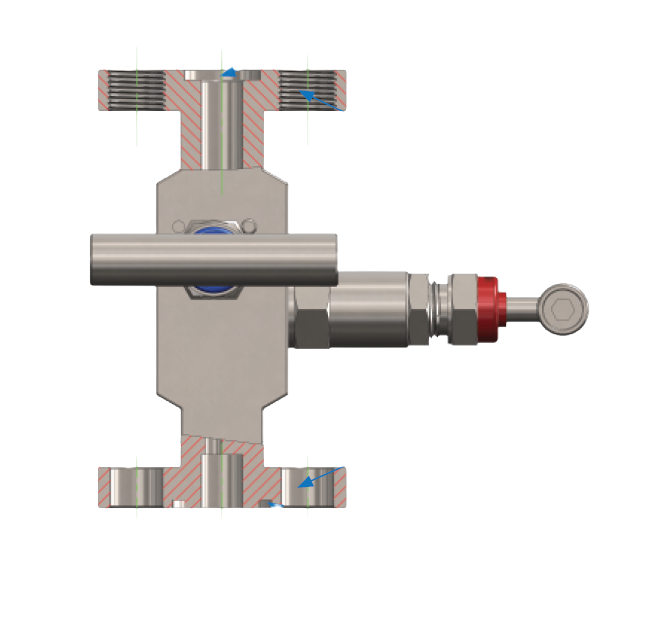

The H Type manifold features a metal-to-metal body and bonnet seal, which provides a secure seal under high pressure and temperature conditions, eliminating the need for O-ring seals. The valves are designed with a self-centering, non-rotating tip to provide consistent positive shutoff and reduce wear on the packing. The stem includes a back seat for added safety, and a removable T-handle ensures smooth operation with low torque. A dust cap protects the stem from contamination, and rolled threads improve durability and ease of operation.
These manifolds are manufactured to meet ASME B16.34 standards for pressure-temperature ratings and are type tested to MSS-SP-99. They have a standard working pressure of 6000 PSI, with higher pressures available upon request. Materials can be supplied in accordance with NACE MR 01 75, and temperature ratings range from -50°C to 230°C, or up to 500°C with graphite. Every valve is factory tested for leakage and performance, and heat code traceability ensures quality and reliability.

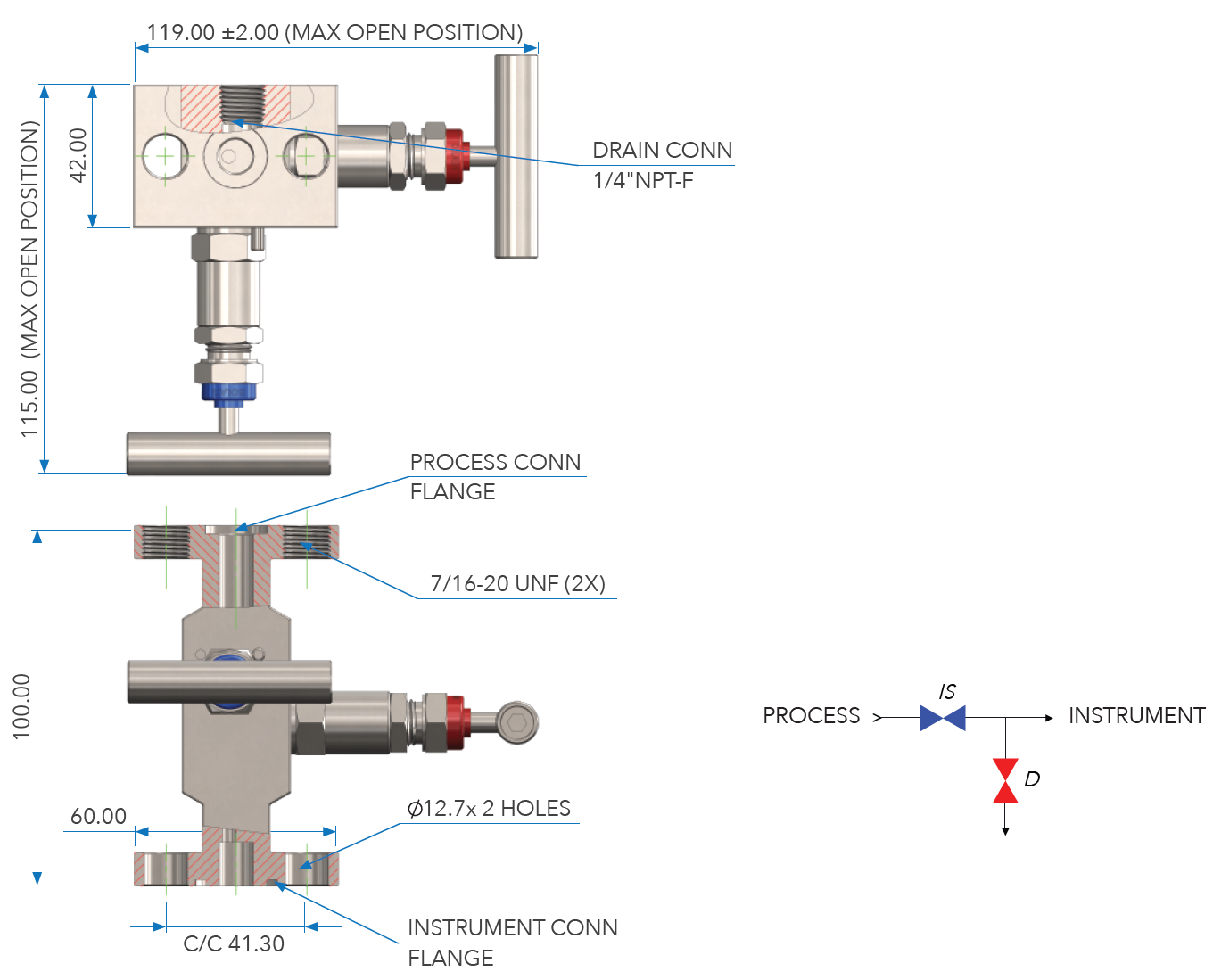

Engineering Data
